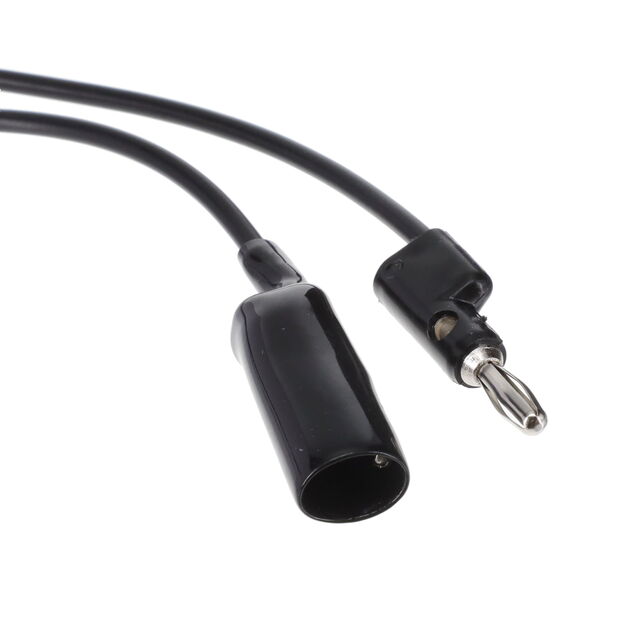

EM1166-96-0#
ActivePomona Electronics
TEST LEAD BANANA TO GATOR 96"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EM1166-96-0#
ActivePomona Electronics
TEST LEAD BANANA TO GATOR 96"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EM1166-96-0# |
|---|---|
| 1st Connector | Single, Stackable, Banana Plug |
| 2nd Connector | Alligator Clip, Insulated |
| Configuration | Banana to Alligator |
| Contents | 1 Lead, Black |
| Current Rating (Amps) | 5 A |
| Material - Insulation | Poly-Vinyl Chloride (PVC) |
| Stacking Method | Multi-Stacking, Front and Vertical |
| Type | Patch Cord |
| Voltage - Rated | 30 VAC |
| Wire Gauge | 18 AWG |
EM1166 Series
| Part | Cable Length | Cable Length | Voltage - Rated | Contents | Stacking Method | Wire Gauge | Configuration | Current Rating (Amps) | 1st Connector | Material - Insulation | 2nd Connector | Type | Contents [custom] | Contents | Contents [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Pomona Electronics | 24 " | 609.6 mm | 30 VAC | 1 Lead Yellow | Front and Vertical Multi-Stacking | 18 AWG | Banana to Alligator | 5 A | Banana Plug Single Stackable | Poly-Vinyl Chloride (PVC) | Alligator Clip Insulated | Patch Cord | |||
Pomona Electronics | 30 VAC | 1 Lead Black | Front and Vertical Multi-Stacking | 18 AWG | Banana to Alligator | 5 A | Banana Plug Single Stackable | Poly-Vinyl Chloride (PVC) | Alligator Clip Insulated | Patch Cord | |||||
Pomona Electronics | 24 " | 609.6 mm | 30 VAC | 1 Lead Orange | Front and Vertical Multi-Stacking | 18 AWG | Banana to Alligator | 5 A | Banana Plug Single Stackable | Poly-Vinyl Chloride (PVC) | Alligator Clip Insulated | Patch Cord | |||
Pomona Electronics | 24 " | 609.6 mm | 30 VAC | 1 Lead Violet | Front and Vertical Multi-Stacking | 18 AWG | Banana to Alligator | 5 A | Banana Plug Single Stackable | Poly-Vinyl Chloride (PVC) | Alligator Clip Insulated | Patch Cord | |||
Pomona Electronics | 24 " | 609.6 mm | 30 VAC | Front and Vertical Multi-Stacking | 18 AWG | Banana to Alligator | 5 A | Banana Plug Single Stackable | Poly-Vinyl Chloride (PVC) | Alligator Clip Insulated | Patch Cord | ||||
Pomona Electronics | 5 ft | 1524 mm | 30 VAC | 1 Lead White | Front and Vertical Multi-Stacking | 18 AWG | Banana to Alligator | 5 A | Banana Plug Single Stackable | Poly-Vinyl Chloride (PVC) | Alligator Clip Insulated | Patch Cord | |||
Pomona Electronics | 144 in | 3657.6 mm | 30 VAC | Red | Front and Vertical Multi-Stacking | 18 AWG | Banana to Alligator | 5 A | Banana Plug Single Stackable | Poly-Vinyl Chloride (PVC) | Alligator Clip Insulated | Patch Cord | 1 | ||
Pomona Electronics | 24 " | 609.6 mm | 30 VAC | Brown | Front and Vertical Multi-Stacking | 18 AWG | Banana to Alligator | 5 A | Banana Plug Single Stackable | Poly-Vinyl Chloride (PVC) | Alligator Clip Insulated | Patch Cord | 1 Cable | ||
Pomona Electronics | 5 ft | 1524 mm | 30 VAC | 1 Lead Blue | Front and Vertical Multi-Stacking | 18 AWG | Banana to Alligator | 5 A | Banana Plug Single Stackable | Poly-Vinyl Chloride (PVC) | Alligator Clip Insulated | Patch Cord | |||
Pomona Electronics | 24 " | 609.6 mm | 30 VAC | Gray | Front and Vertical Multi-Stacking | 18 AWG | Banana to Alligator | 5 A | Banana Plug Single Stackable | Poly-Vinyl Chloride (PVC) | Alligator Clip Insulated | Patch Cord | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.49 | |
| 25 | $ 10.19 | |||
Description
General part information
EM1166 Series
96.0" (2438.40mm) Banana Plug, Single, Stackable To Alligator Clip, Insulated Patch Cord 30VAC
