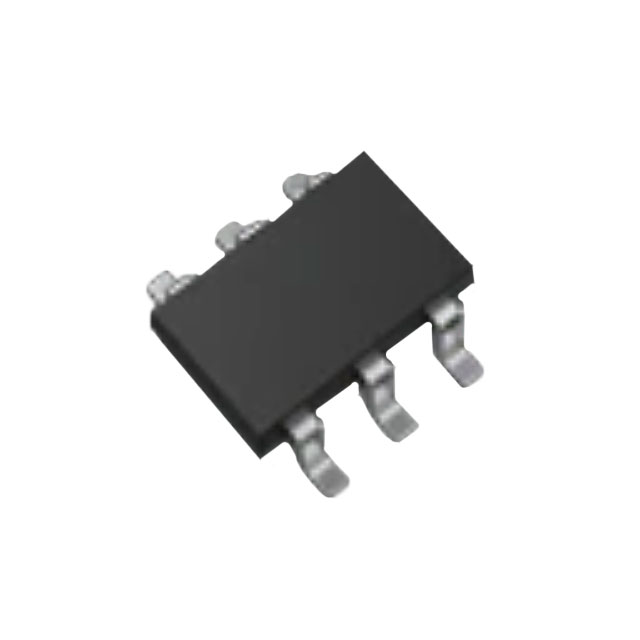

SSM6N7002KFU,LXH

Active

Toshiba Semiconductor and Storage

MOSFET 2N-CH 60V 0.3A US6

Search across all available documentation for this part.

Active

Toshiba Semiconductor and Storage

MOSFET 2N-CH 60V 0.3A US6

Technical Specifications

Parameters and characteristics for this part

Specification	SSM6N7002KFU,LXH

Configuration	2 N-Channel (Dual)
Current - Continuous Drain (Id) @ 25°C	300 mA
Drain to Source Voltage (Vdss)	60 V
Gate Charge (Qg) (Max) @ Vgs	0.6 nC
Grade	Automotive
Input Capacitance (Ciss) (Max) @ Vds	40 pF
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	6-TSSOP, SC-88, SOT-363
Power - Max [Max]	285 mW
Qualification	AEC-Q101
Rds On (Max) @ Id, Vgs	1.5 Ohm
Supplier Device Package	US6
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	2.1 V

Part	Package / Case	Technology	FET Feature	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds [Max]	Operating Temperature	Current - Continuous Drain (Id) @ 25°C	Mounting Type	Configuration	Drain to Source Voltage (Vdss)	Vgs(th) (Max) @ Id	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs	Power - Max [Max]	Input Capacitance (Ciss) (Max) @ Vds	Grade	Qualification
Toshiba Semiconductor and Storage SSM6N7002BFE,LM	SOT-563 SOT-666	MOSFET (Metal Oxide)	Logic Level Gate	2.1 Ohm	17 pF	150 °C	200 mA	Surface Mount	2 N-Channel (Dual)	60 V	3.1 V	ES6
Toshiba Semiconductor and Storage SSM6N7002KFU,LXH	6-TSSOP SC-88 SOT-363	MOSFET (Metal Oxide)		1.5 Ohm		150 °C	300 mA	Surface Mount	2 N-Channel (Dual)	60 V	2.1 V	US6	0.6 nC	285 mW	40 pF	Automotive	AEC-Q101
Toshiba Semiconductor and Storage SSM6N7002BFU,LF	6-TSSOP SC-88 SOT-363	MOSFET (Metal Oxide)	Logic Level Gate	2.1 Ohm	17 pF	150 °C	200 mA	Surface Mount	2 N-Channel (Dual)	60 V	3.1 V	US6		300 mW
Toshiba Semiconductor and Storage SSM6N7002BFU(T5L,F	6-TSSOP SC-88 SOT-363	MOSFET (Metal Oxide)	Logic Level Gate	2.1 Ohm	17 pF	150 °C	200 mA	Surface Mount	2 N-Channel (Dual)	60 V	3.1 V	US6		300 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 60V 300mA (Ta) 285mW (Ta) Surface Mount US6
