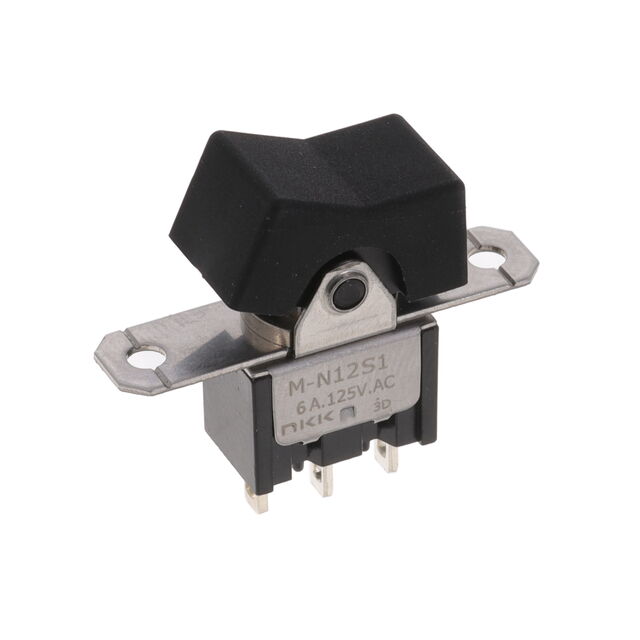

MN12TNW01-DA
ActiveNKK Switches
SWITCH ROCKER MINI FLAT FRAME
Deep-Dive with AI
Search across all available documentation for this part.
MN12TNW01-DA
ActiveNKK Switches
SWITCH ROCKER MINI FLAT FRAME
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MN12TNW01-DA |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Concave (Standard V) |
| Approval Agency | UL |
| Circuit | SPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 4 A, 6 A |
| Electrical Life | 25000 Steps |
| Mounting Type | Panel Mount, Flange |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [x] | 17.8 mm |
| Panel Cutout Dimensions [y] | 10.1 mm |
| Switch Function | On-On |
| Termination Style | Solder Lug |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 30 V |
MN12TN Series
| Part | Actuator Marking | Approval Agency | Actuator Type | Color - Actuator/Cap | Voltage Rating - AC | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Current Rating (Amps) | Mounting Type | Termination Style | Switch Function | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating - DC | Electrical Life |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NKK Switches | No Marking | UL | Concave (Standard V) | Red | 125 V | 17.8 mm | 10.1 mm | 4 A 6 A | Flange Panel Mount | Solder Lug | On-On | SPDT | -30 ░C | 85 °C | 30 V | 25000 Steps |
NKK Switches | No Marking | UL | Concave (Standard V) | Black | 125 V | 12.7 mm | 12.4 mm | 4 A 6 A | Flange Panel Mount | Solder Lug | On-On | SPDT | -30 ░C | 85 °C | 30 V | 25000 Steps |
NKK Switches | No Marking | UL | Actuator Arm Cap Required | 125 V | 12.7 mm | 12.4 mm | 4 A 6 A | Flange Panel Mount | Solder Lug | On-On | SPDT | -30 ░C | 85 °C | 30 V | 25000 Steps | |
NKK Switches | No Marking | UL | Paddle | 125 V | 17.8 mm | 10.1 mm | 4 A 6 A | Flange Panel Mount | Solder Lug | On-On | SPDT | -30 ░C | 85 °C | 30 V | 25000 Steps | |
NKK Switches | No Marking | UL | Concave (Standard V) | Black | 125 V | 17.8 mm | 10.1 mm | 4 A 6 A | Flange Panel Mount | Solder Lug | On-On | SPDT | -30 ░C | 85 °C | 30 V | 25000 Steps |
NKK Switches | ||||||||||||||||
NKK Switches | ||||||||||||||||
NKK Switches | ||||||||||||||||
NKK Switches | ||||||||||||||||
NKK Switches |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.74 | |
| 10 | $ 6.46 | |||
| 100 | $ 5.33 | |||
| 1000 | $ 3.93 | |||
Description
General part information
MN12TN Series
Rocker Switch SPDT 6A (AC), 4A (DC) 125 V Panel Mount, Flange
