MN12TNW01

Active

SWITCH ROCKER MINI FLAT FRAME

Active

SWITCH ROCKER MINI FLAT FRAME

Description

General part information

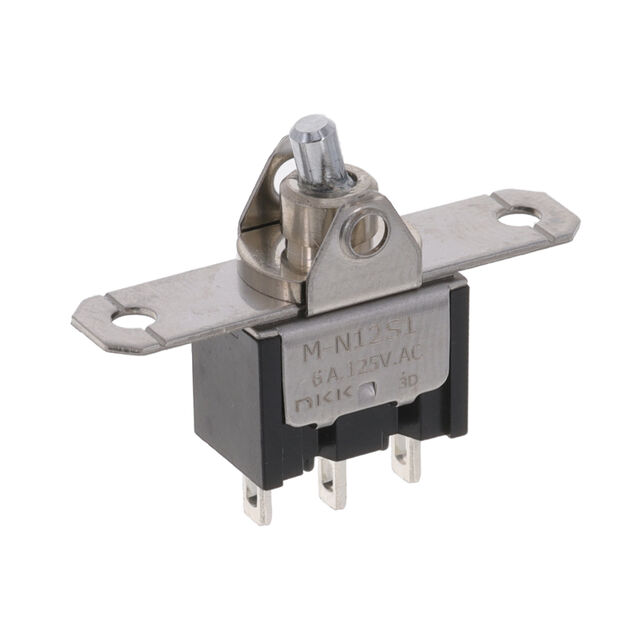

Rocker Switch SPDT 6A (AC), 4A (DC) 125 V Panel Mount, Flange

Parameters and characteristics for this part

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Voltage Rating - DC	Switch Function	Termination Style	Voltage Rating - AC	Actuator Marking	Actuator Type	Circuit	Current Rating	Color - Actuator/Cap	Operating Temperature (Max)	Operating Temperature (Min)	Panel Cutout Length	Panel Cutout Shape	Panel Cutout Width	Mounting Type	Approval Agency
NKK Switches MN12TNW01-DC	50000 Cycles	25000	30 V	On-On	Solder Lug	125 V	No Marking	Concave (Standard V)	SPDT	4 A 6 A	Red	85 °C	-30 °C	17.8 mm	Rectangular	10.1 mm	Flange Panel Mount	UL
NKK Switches MN12TNW01-FA	50000 Cycles	25000	30 V	On-On	Solder Lug	125 V	No Marking	Concave (Standard V)	SPDT	4 A 6 A	Black	85 °C	-30 °C	12.7 mm	Rectangular	12.4 mm	Flange Panel Mount	UL
NKK Switches MN12TNW01	50000 Cycles	25000	30 V	On-On	Solder Lug	125 V	No Marking	Actuator Arm Cap Required	SPDT	4 A 6 A		85 °C	-30 °C	12.7 mm	Rectangular	12.4 mm	Flange Panel Mount	UL
NKK Switches MN12TNW01-EH	50000 Cycles	25000	30 V	On-On	Solder Lug	125 V	No Marking	Paddle	SPDT	4 A 6 A	Gray	85 °C	-30 °C	17.8 mm	Rectangular	10.1 mm	Flange Panel Mount	UL
NKK Switches MN12TNW01-DA	50000 Cycles	25000	30 V	On-On	Solder Lug	125 V	No Marking	Concave (Standard V)	SPDT	4 A 6 A	Black	85 °C	-30 °C	17.8 mm	Rectangular	10.1 mm	Flange Panel Mount	UL
NKK Switches MN12TNG01-DA
NKK Switches MN12TNG01-DC
NKK Switches MN12TNW03-EC
NKK Switches MN12TNW03-DB
NKK Switches MN12TNW03-DA
