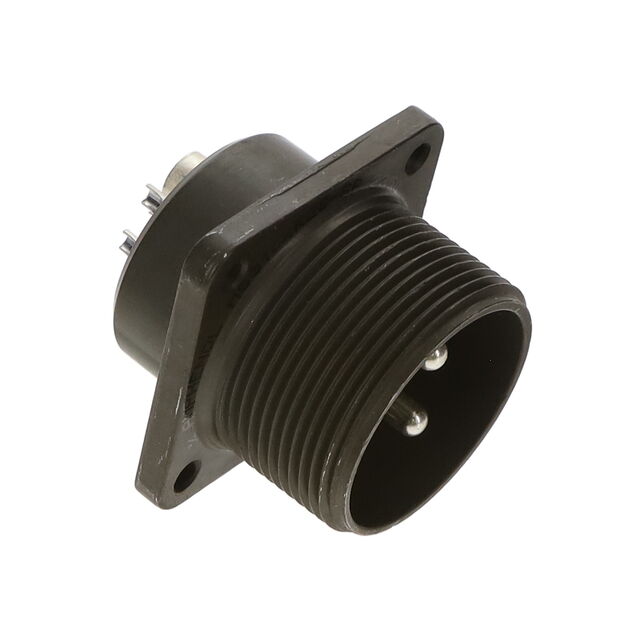

MS3102R20-8P

Active

Amphenol Aerospace Operations

MIL-5015 MS/AC THREADED RECEPT

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

MIL-5015 MS/AC THREADED RECEPT

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102R20-8P

Applications	Military, Marine
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	46 A, 13 A
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	8
Shell Size - Insert [Min]	20
Shielding	Unshielded
Voltage Rating	250 VDC, 200 VAC

Part	Connector Type	Insert Material	Contact Finish - Mating	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Mounting Feature	Qualification	Applications	Contact Material	Cable Opening [custom]	Cable Opening [custom]	Shielding	Primary Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Shell Material	Shell Finish	Color	Ingress Protection	Current Rating (Amps)	Number of Positions	Voltage Rating
Amphenol Aerospace Operations MS3102R20-21P
Amphenol Aerospace Operations MS3102R20-29P	Male Pins Receptacle	Neoprene	Silver	29	20	Flange	MIL-DTL-5015	Marine Military	Copper Alloy	1.125 in	28.58 mm	Unshielded	Metal	N	-55 °C	125 °C	Military	Aluminum Alloy	Olive Drab Chromate over Cadmium	Olive Drab	Environment Resistant
Amphenol Aerospace Operations MS3102R20-8P	Male Pins Receptacle	Neoprene	Silver	8	20	Flange	MIL-DTL-5015	Marine Military	Copper Alloy			Unshielded	Metal	N	-55 °C	125 °C	Military	Aluminum Alloy	Olive Drab Chromate over Cadmium	Olive Drab	Environment Resistant	13 A 46 A	6	200 VAC 250 VDC
Amphenol Aerospace Operations MS3102R20-18S	Receptacle Female Sockets	Neoprene	Silver	18	20	Flange	MIL-DTL-5015	Marine Military	Copper Alloy	1.125 in	28.58 mm	Unshielded	Metal	N	-55 °C	125 °C	Military	Aluminum Alloy	Olive Drab Chromate over Cadmium	Olive Drab	Environment Resistant		9
Amphenol Aerospace Operations MS3102R20-27PX

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle, Male Pins Solder Cup
