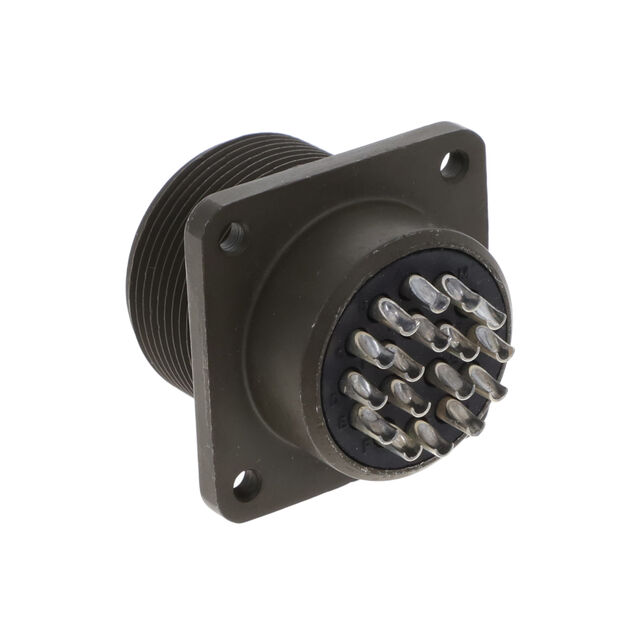

MS3102R20-29P

Active

Amphenol Aerospace Operations

CONN RCPT MALE 17P SOLDER CUP

Search across all available documentation for this part.

Active

Amphenol Aerospace Operations

CONN RCPT MALE 17P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MS3102R20-29P

Applications	Military, Marine
Cable Opening [custom]	1.125 in
Cable Opening [custom]	28.58 mm
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-5015
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	29
Shell Size - Insert [Min]	20
Shielding	Unshielded

Part	Connector Type	Insert Material	Contact Finish - Mating	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Mounting Feature	Qualification	Applications	Contact Material	Cable Opening [custom]	Cable Opening [custom]	Shielding	Primary Material	Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Grade	Shell Material	Shell Finish	Color	Ingress Protection	Current Rating (Amps)	Number of Positions	Voltage Rating
Amphenol Aerospace Operations MS3102R20-21P
Amphenol Aerospace Operations MS3102R20-29P	Male Pins Receptacle	Neoprene	Silver	29	20	Flange	MIL-DTL-5015	Marine Military	Copper Alloy	1.125 in	28.58 mm	Unshielded	Metal	N	-55 °C	125 °C	Military	Aluminum Alloy	Olive Drab Chromate over Cadmium	Olive Drab	Environment Resistant
Amphenol Aerospace Operations MS3102R20-8P	Male Pins Receptacle	Neoprene	Silver	8	20	Flange	MIL-DTL-5015	Marine Military	Copper Alloy			Unshielded	Metal	N	-55 °C	125 °C	Military	Aluminum Alloy	Olive Drab Chromate over Cadmium	Olive Drab	Environment Resistant	13 A 46 A	6	200 VAC 250 VDC
Amphenol Aerospace Operations MS3102R20-18S	Receptacle Female Sockets	Neoprene	Silver	18	20	Flange	MIL-DTL-5015	Marine Military	Copper Alloy	1.125 in	28.58 mm	Unshielded	Metal	N	-55 °C	125 °C	Military	Aluminum Alloy	Olive Drab Chromate over Cadmium	Olive Drab	Environment Resistant		9
Amphenol Aerospace Operations MS3102R20-27PX

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

17 Position Circular Connector Receptacle, Male Pins Solder Cup
