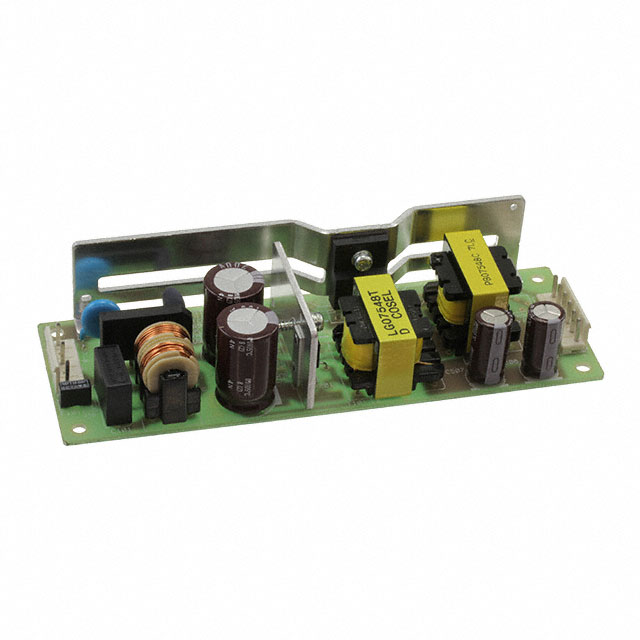

LGA75A-48

Active

Cosel USA, Inc.

AC/DC CONVERTER 48V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LGA75A-48

Active

Cosel USA, Inc.

AC/DC CONVERTER 48V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LGA75A-48

Applications	ITE (Commercial)
Approval Agency	cURus, CE, TUV
Current - Output 1	1.6 A
Efficiency	86 %
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Size / Dimension [x]	150.1 mm
Size / Dimension [x]	5.91 "
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	1.36 "
Size / Dimension [z]	34.5 mm
Type	Open Frame
Voltage - Input [Max]	132 VAC
Voltage - Input [Min]	85 VAC
Voltage - Isolation	2000 V
Voltage - Output 1	48 V

LGA75A Series

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Applications	Voltage - Output 1	Voltage - Input [Max]	Voltage - Input [Min]	Number of Outputs	Type	Efficiency	Approval Agency	Voltage - Isolation	Current - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
Cosel USA, Inc. LGA75A-24-HJ1	1.36 "	1.97 "	150.1 mm	5.91 "	34.5 mm	50 mm	ITE (Commercial)	24 V	132 VAC	85 VAC	1	Open Frame	86 %	CE cURus TUV	2000 V	3.2 A	-10 °C	60 °C	Chassis Mount
Cosel USA, Inc. LGA75A-12-J1Y	1.36 "	1.97 "	150.1 mm	5.91 "	34.5 mm	50 mm	ITE (Commercial)	12 V	132 VAC	85 VAC	1	Open Frame	83 %	CE cURus TUV	2000 V	6.3 A	-10 °C	60 °C	Chassis Mount
Cosel USA, Inc. LGA75A-24-C	1.36 "	1.97 "	150.1 mm	5.91 "	34.5 mm	50 mm	ITE (Commercial)	24 V	132 VAC	85 VAC	1	Open Frame	86 %	CE cURus TUV	2000 V	3.2 A	-10 °C	60 °C	Chassis Mount
Cosel USA, Inc. LGA75A-24-GJ1	1.36 "	1.97 "	150.1 mm	5.91 "	34.5 mm	50 mm	ITE (Commercial)	24 V	132 VAC	85 VAC	1	Open Frame	86 %	CE cURus TUV	2000 V	3.2 A	-10 °C	60 °C	Chassis Mount
Cosel USA, Inc. LGA75A-12-SNY	1.36 "	1.97 "	150.1 mm	5.91 "	34.5 mm	50 mm	ITE (Commercial)	12 V	132 VAC	85 VAC	1	Enclosed	83 %	CE cURus TUV	2000 V	6.3 A	-10 °C	60 °C	Chassis Mount
Cosel USA, Inc. LGA75A-12-SNJ1	1.36 "	1.97 "	150.1 mm	5.91 "	34.5 mm	50 mm	ITE (Commercial)	12 V	132 VAC	85 VAC	1	Enclosed	83 %	CE cURus TUV	2000 V	6.3 A	-10 °C	60 °C	Chassis Mount
Cosel USA, Inc. LGA75A-48	1.36 "	1.97 "	150.1 mm	5.91 "	34.5 mm	50 mm	ITE (Commercial)	48 V	132 VAC	85 VAC	1	Open Frame	86 %	CE cURus TUV	2000 V	1.6 A	-10 °C	60 °C	Chassis Mount
Cosel USA, Inc. LGA75A-5-J1Y	1.36 "	1.97 "	150.1 mm	5.91 "	34.5 mm	50 mm	ITE (Commercial)	5 V	132 VAC	85 VAC	1	Open Frame	79 %	CE cURus TUV	2000 V	15 A	-10 °C	60 °C	Chassis Mount
Cosel USA, Inc. LGA75A-24-S	1.36 "	1.97 "	150.1 mm	5.91 "	34.5 mm	50 mm	ITE (Commercial)	24 V	132 VAC	85 VAC	1	Open Frame	86 %	CE cURus TUV	2000 V	3.2 A	-10 °C	60 °C	Chassis Mount
Cosel USA, Inc. LGA75A-12-C	1.36 "	1.97 "	150.1 mm	5.91 "	34.5 mm	50 mm	ITE (Commercial)	12 V	132 VAC	85 VAC	1	Open Frame	83 %	CE cURus TUV	2000 V	6.3 A	-10 °C	60 °C	Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 45.70
		5	$ 44.31
		10	$ 42.93
		25	$ 41.54
		50	$ 40.16
		100	$ 38.77
		250	$ 38.08

Description

General part information

LGA75A Series

Open Frame AC DC Converters 1 Output 48V 85 ~ 132 VAC Input
