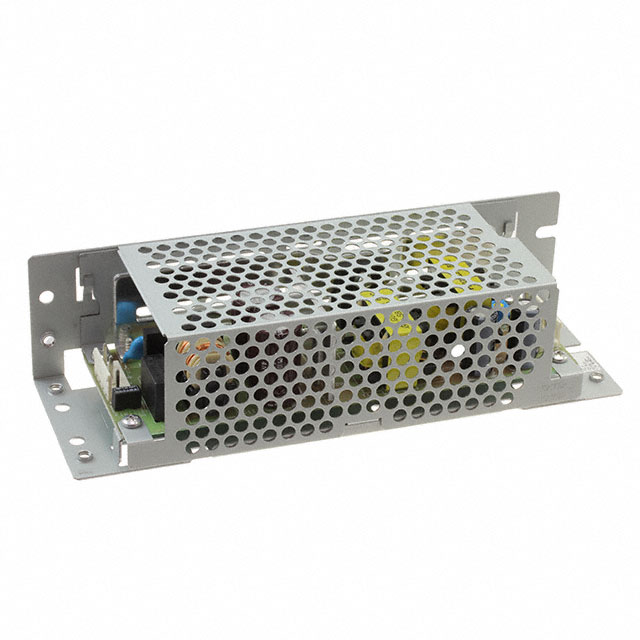

LGA75A-12-SNY
ActiveCosel USA, Inc.
AC/DC CONVERTER 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LGA75A-12-SNY
ActiveCosel USA, Inc.
AC/DC CONVERTER 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LGA75A-12-SNY |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 6.3 A |
| Efficiency | 83 % |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Size / Dimension [x] | 150.1 mm |
| Size / Dimension [x] | 5.91 " |
| Size / Dimension [y] | 1.97 " |
| Size / Dimension [y] | 50 mm |
| Size / Dimension [z] | 1.36 " |
| Size / Dimension [z] | 34.5 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 132 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Isolation | 2000 V |
| Voltage - Output 1 | 12 V |
LGA75A Series
| Part | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Applications | Voltage - Output 1 | Voltage - Input [Max] | Voltage - Input [Min] | Number of Outputs | Type | Efficiency | Approval Agency | Voltage - Isolation | Current - Output 1 | Minimum Load Required | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cosel USA, Inc. | 1.36 " | 1.97 " | 150.1 mm | 5.91 " | 34.5 mm | 50 mm | ITE (Commercial) | 24 V | 132 VAC | 85 VAC | 1 | Open Frame | 86 % | CE cURus TUV | 2000 V | 3.2 A | -10 °C | 60 °C | Chassis Mount | |
Cosel USA, Inc. | 1.36 " | 1.97 " | 150.1 mm | 5.91 " | 34.5 mm | 50 mm | ITE (Commercial) | 12 V | 132 VAC | 85 VAC | 1 | Open Frame | 83 % | CE cURus TUV | 2000 V | 6.3 A | -10 °C | 60 °C | Chassis Mount | |
Cosel USA, Inc. | 1.36 " | 1.97 " | 150.1 mm | 5.91 " | 34.5 mm | 50 mm | ITE (Commercial) | 24 V | 132 VAC | 85 VAC | 1 | Open Frame | 86 % | CE cURus TUV | 2000 V | 3.2 A | -10 °C | 60 °C | Chassis Mount | |
Cosel USA, Inc. | 1.36 " | 1.97 " | 150.1 mm | 5.91 " | 34.5 mm | 50 mm | ITE (Commercial) | 24 V | 132 VAC | 85 VAC | 1 | Open Frame | 86 % | CE cURus TUV | 2000 V | 3.2 A | -10 °C | 60 °C | Chassis Mount | |
Cosel USA, Inc. | 1.36 " | 1.97 " | 150.1 mm | 5.91 " | 34.5 mm | 50 mm | ITE (Commercial) | 12 V | 132 VAC | 85 VAC | 1 | Enclosed | 83 % | CE cURus TUV | 2000 V | 6.3 A | -10 °C | 60 °C | Chassis Mount | |
Cosel USA, Inc. | 1.36 " | 1.97 " | 150.1 mm | 5.91 " | 34.5 mm | 50 mm | ITE (Commercial) | 12 V | 132 VAC | 85 VAC | 1 | Enclosed | 83 % | CE cURus TUV | 2000 V | 6.3 A | -10 °C | 60 °C | Chassis Mount | |
Cosel USA, Inc. | 1.36 " | 1.97 " | 150.1 mm | 5.91 " | 34.5 mm | 50 mm | ITE (Commercial) | 48 V | 132 VAC | 85 VAC | 1 | Open Frame | 86 % | CE cURus TUV | 2000 V | 1.6 A | -10 °C | 60 °C | Chassis Mount | |
Cosel USA, Inc. | 1.36 " | 1.97 " | 150.1 mm | 5.91 " | 34.5 mm | 50 mm | ITE (Commercial) | 5 V | 132 VAC | 85 VAC | 1 | Open Frame | 79 % | CE cURus TUV | 2000 V | 15 A | -10 °C | 60 °C | Chassis Mount | |
Cosel USA, Inc. | 1.36 " | 1.97 " | 150.1 mm | 5.91 " | 34.5 mm | 50 mm | ITE (Commercial) | 24 V | 132 VAC | 85 VAC | 1 | Open Frame | 86 % | CE cURus TUV | 2000 V | 3.2 A | -10 °C | 60 °C | Chassis Mount | |
Cosel USA, Inc. | 1.36 " | 1.97 " | 150.1 mm | 5.91 " | 34.5 mm | 50 mm | ITE (Commercial) | 12 V | 132 VAC | 85 VAC | 1 | Open Frame | 83 % | CE cURus TUV | 2000 V | 6.3 A | -10 °C | 60 °C | Chassis Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 55.34 | |
Description
General part information
LGA75A Series
Enclosed AC DC Converters 1 Output 12V 85 ~ 132 VAC Input
Documents
Technical documentation and resources
