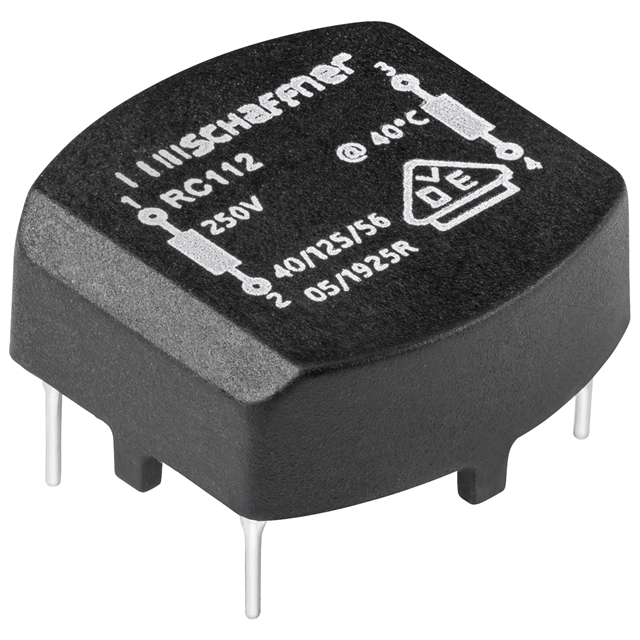

COMMON MODE CHOKES / FILTERS RC112 COMMON MODE CHOKE 250VAC, 0.35A, 22MH, HORIZONTAL

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

COMMON MODE CHOKES / FILTERS RC112 COMMON MODE CHOKE 250VAC, 0.35A, 22MH, HORIZONTAL

Technical Specifications

Parameters and characteristics for this part

Part	Filter Type	Number of Lines	Package / Case	Package / Case	Height (Max) [Max]	Height (Max) [Max] [z]	Mounting Type	DC Resistance (DCR) (Max) [Max]	Inductance @ Frequency	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - AC	Current Rating (Max) [Max]
TE Connectivity Raychem Cable Protection RC112-0.35-22M	Power Line	2	Horizontal	4 Lead	8 mm	0.315 in	Through Hole	1.9 Ohm	22 mH	VDE	125 °C	-40 °C	0.689 in	0.689 in	17.5 mm	17.5 mm	250 V	350 mA
TE Connectivity Raychem Cable Protection RC212-0.5-10M	Power Line	2	Vertical	4 Lead			Through Hole	1 Ohm	10 mH	VDE	125 °C	-40 °C	0.602 in	0.291 "	7.4 mm	15.3 mm	250 V	500 mA
TE Connectivity Raychem Cable Protection RC212-0.4-15M	Power Line	2	Vertical	4 Lead			Through Hole	1.35 Ohm	10 kHz 15 mH	VDE	125 °C	-40 °C	0.602 in	0.291 "	7.4 mm	15.3 mm	250 V	400 mA
TE Connectivity Raychem Cable Protection RC212-0.6-6M8	Power Line	2	Vertical	4 Lead			Through Hole	630 mOhm	6.8 mH 10 kHz	VDE	125 °C	-40 °C	0.602 in	0.291 "	7.4 mm	15.3 mm	250 V	600 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

250 VDC, .35 A, PCB Terminal, PD2 Pollution Degree, IP00, Horizontal, UL 94V-0, Board Mount, Schaffner RC-Series, EMC Chokes
