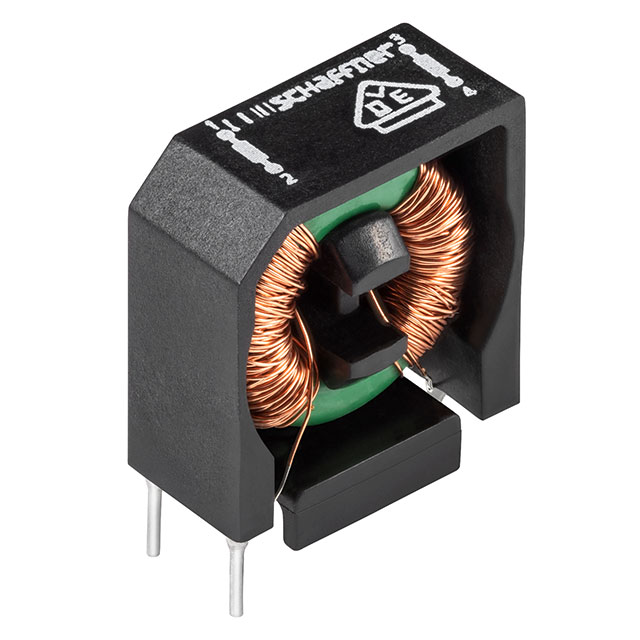

RC212-0.4-15M

Active

TE Connectivity Raychem Cable Protection

CMC 15MH 400MA 2LN TH

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CMC 15MH 400MA 2LN TH

Technical Specifications

Parameters and characteristics for this part

Part	DC Resistance (DCR) (Max) [Max]	Inductance @ Frequency	Number of Lines	Filter Type	Voltage Rating - AC	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Package / Case	Package / Case	Current Rating (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency
TE Connectivity Raychem Cable Protection RC212-0.25-47M	2.4 Ohm	10 kHz 47 mH	2	Power Line	250 V	15.3 mm	0.602 in	7.4 mm	0.291 "	4 Lead	Vertical	250 mA	Through Hole	125 °C	-40 °C	VDE
TE Connectivity Raychem Cable Protection RC212-0.3-30M	2.2 Ohm	10 kHz 30 mH	2	Power Line	250 V	15.3 mm	0.602 in	7.4 mm	0.291 "	4 Lead	Vertical	300 mA	Through Hole	125 °C	-40 °C	VDE
TE Connectivity Raychem Cable Protection RC212-0.5-10M	1 Ohm	10 mH	2	Power Line	250 V	15.3 mm	0.602 in	7.4 mm	0.291 "	4 Lead	Vertical	500 mA	Through Hole	125 °C	-40 °C	VDE
TE Connectivity Raychem Cable Protection RC212-0.4-15M	1.35 Ohm	10 kHz 15 mH	2	Power Line	250 V	15.3 mm	0.602 in	7.4 mm	0.291 "	4 Lead	Vertical	400 mA	Through Hole	125 °C	-40 °C	VDE
TE Connectivity Raychem Cable Protection RC212-0.6-6M8	630 mOhm	6.8 mH 10 kHz	2	Power Line	250 V	15.3 mm	0.602 in	7.4 mm	0.291 "	4 Lead	Vertical	600 mA	Through Hole	125 °C	-40 °C	VDE
TE Connectivity Raychem Cable Protection RC212-0.7-4M7			2	Power Line	250 V	15.3 mm	0.602 in	7.4 mm	0.291 "	4 Lead	Vertical	700 mA	Through Hole	125 °C	-40 °C	VDE

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

15 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 400mA DCR 1.35Ohm
