Specification	F31S15A

Approval Agency	cULus
Connector Style	Pin and Sleeve (2P3W)
Connector Type	Receptacle, Female Sockets
Current Rating	20 A
Features	Cover, Chemical Resistant, Push-Twist Lock, Impact Resistant
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Flange
Number of Positions	3
Panel Cutout Length	75 mm
Panel Cutout Shape	Square
Panel Cutout Width	75 mm
Termination	Screw
Voltage Rating	120 V

F31S Series

Part	Material Flammability Rating	Connector Style	Features	Termination	Mounting Type	Panel Cutout Shape	Panel Cutout Length	Panel Cutout Width	Connector Type	Ingress Protection Description	Ingress Protection IP Rating	Approval Agency	Number of Positions	Voltage Rating	Current Rating	Ingress Protection
Altech Corporation F31S28A	UL94 V-2	Pin and Sleeve (2P3W)	Chemical Resistant Cover Impact Resistant Push-Twist Lock	Screw	Angled Flange Panel Mount	Rectangular	97 mm	80 mm	Female Sockets Receptacle	Dust Tight Waterproof	IP67	cULus	3	250 V	20 A
Altech Corporation F31S23A	UL94 V-2	Pin and Sleeve (2P3W)	Chemical Resistant Cover Impact Resistant Push-Twist Lock	Screw	Angled Flange Panel Mount	Rectangular	97 mm	80 mm	Female Sockets Receptacle			cULus	3	250 V	20 A	IP44
Altech Corporation F31S78A	UL94 V-2	Pin and Sleeve (2P3W)	Chemical Resistant Cover Impact Resistant Push-Twist Lock	Screw	Angled Flange Panel Mount	Rectangular	97 mm	80 mm	Female Sockets Receptacle	Dust Tight Waterproof	IP67	cULus	3	277 VAC	20 A
Altech Corporation F31S15A	UL94 V-2	Pin and Sleeve (2P3W)	Chemical Resistant Cover Impact Resistant Push-Twist Lock	Screw	Flange Panel Mount	Square	75 mm	75 mm	Female Sockets Receptacle	Dust Tight Waterproof	IP67	cULus	3	120 V	20 A

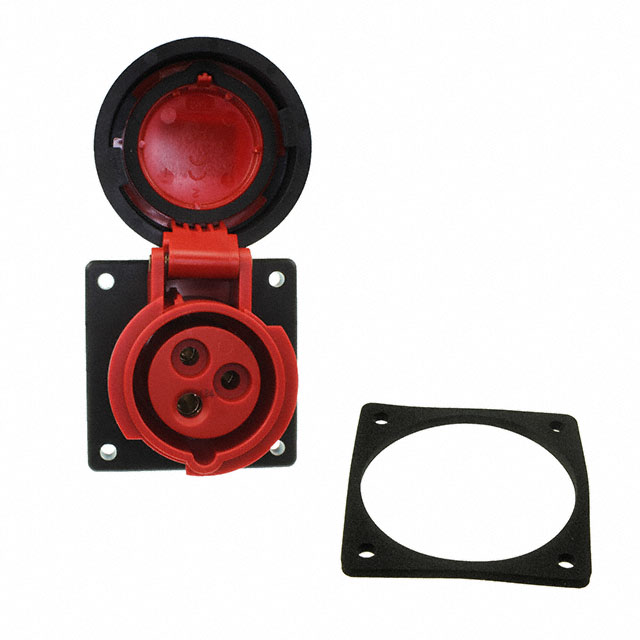

Altech Corporation F31S55A	UL94 V-2	Pin and Sleeve (2P3W)	Chemical Resistant Cover Impact Resistant Push-Twist Lock	Screw	Flange Panel Mount	Square	75 mm	75 mm	Female Sockets Receptacle	Dust Tight Waterproof	IP67	cULus	3	480 VAC	20 A
Altech Corporation F31S13A	UL94 V-2	Pin and Sleeve (2P3W)	Chemical Resistant Cover Impact Resistant Push-Twist Lock	Screw	Angled Flange Panel Mount	Rectangular	97 mm	80 mm	Female Sockets Receptacle			cULus	3	120 V	20 A	IP44
Altech Corporation F31S53A	UL94 V-2	Pin and Sleeve (2P3W)	Chemical Resistant Cover Impact Resistant Push-Twist Lock	Screw	Angled Flange Panel Mount	Rectangular	97 mm	80 mm	Female Sockets Receptacle			cULus	3	480 VAC	20 A	IP44
Altech Corporation F31S50A	UL94 V-2	Pin and Sleeve (2P3W)	Chemical Resistant Cover Impact Resistant Push-Twist Lock	Screw	Flange Panel Mount	Square	75 mm	75 mm	Female Sockets Receptacle			cULus	3	480 VAC	20 A	IP44
Altech Corporation F31S520
Altech Corporation F31S75A	UL94 V-2	Pin and Sleeve (2P3W)	Chemical Resistant Cover Impact Resistant Push-Twist Lock	Screw	Flange Panel Mount	Square	75 mm	75 mm	Female Sockets Receptacle	Dust Tight Waterproof	IP67	cULus	3	277 VAC	20 A
