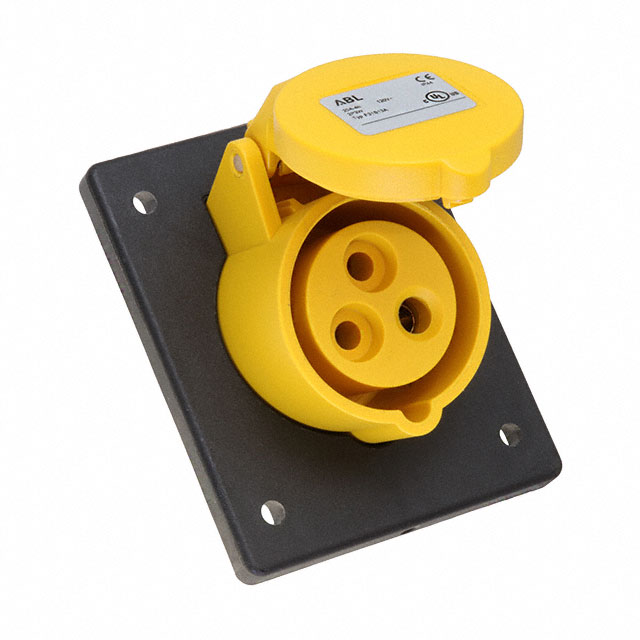

F31S13A

Active

Altech Corporation

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

F31S13A

Active

Altech Corporation

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	F31S13A

Approval Agency	cULus
Connector Style	Pin and Sleeve (2P3W)
Connector Type	Receptacle, Female Sockets
Current Rating (Amps)	20 A
Features	Cover, Push-Twist Lock, Chemical Resistant, Impact Resistant
Ingress Protection	IP44
Material Flammability Rating	UL94 V-2
Mounting Type	Panel Mount, Flange, Angled
Panel Cutout Dimensions [x]	97 mm
Panel Cutout Dimensions [y]	80 mm
Termination	Screw
Voltage Rating	120 VAC

F31S Series

Part	Material Flammability Rating	Connector Type	Connector Style	Approval Agency	Current Rating (Amps)	Mounting Type	Termination	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Voltage Rating	Features	Ingress Protection
Altech Corporation F31S28A	UL94 V-2	Receptacle Female Sockets	Pin and Sleeve (2P3W)	cULus	20 A	Angled Flange Panel Mount	Screw	97 mm	80 mm	250 VAC	Chemical Resistant Cover Impact Resistant Push-Twist Lock	IP67 - Dust Tight Waterproof
Altech Corporation F31S23A	UL94 V-2	Receptacle Female Sockets	Pin and Sleeve (2P3W)	cULus	20 A	Angled Flange Panel Mount	Screw	97 mm	80 mm	250 VAC	Chemical Resistant Cover Impact Resistant Push-Twist Lock	IP44
Altech Corporation F31S78A	UL94 V-2	Receptacle Female Sockets	Pin and Sleeve (2P3W)	cULus	20 A	Angled Flange Panel Mount	Screw	97 mm	80 mm	277 VAC/DC	Chemical Resistant Cover Impact Resistant Push-Twist Lock	IP67 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection F31S15A	UL94 V-2	Receptacle Female Sockets	Pin and Sleeve (2P3W)	cULus	20 A	Flange Panel Mount	Screw	75 mm	75 mm	120 VAC	Chemical Resistant Cover Impact Resistant Push-Twist Lock	IP67 - Dust Tight Waterproof
Altech Corporation F31S15A	UL94 V-2	Receptacle Female Sockets	Pin and Sleeve (2P3W)	cULus	20 A	Flange Panel Mount	Screw	75 mm	75 mm	120 VAC	Chemical Resistant Cover Impact Resistant Push-Twist Lock	IP67 - Dust Tight Waterproof
Altech Corporation F31S55A	UL94 V-2	Receptacle Female Sockets	Pin and Sleeve (2P3W)	cULus	20 A	Flange Panel Mount	Screw	75 mm	75 mm	480 VAC	Chemical Resistant Cover Impact Resistant Push-Twist Lock	IP67 - Dust Tight Waterproof
Altech Corporation F31S13A	UL94 V-2	Receptacle Female Sockets	Pin and Sleeve (2P3W)	cULus	20 A	Angled Flange Panel Mount	Screw	97 mm	80 mm	120 VAC	Chemical Resistant Cover Impact Resistant Push-Twist Lock	IP44
Altech Corporation F31S53A	UL94 V-2	Receptacle Female Sockets	Pin and Sleeve (2P3W)	cULus	20 A	Angled Flange Panel Mount	Screw	97 mm	80 mm	480 VAC	Chemical Resistant Cover Impact Resistant Push-Twist Lock	IP44
Altech Corporation F31S50A	UL94 V-2	Receptacle Female Sockets	Pin and Sleeve (2P3W)	cULus	20 A	Flange Panel Mount	Screw	75 mm	75 mm	480 VAC	Chemical Resistant Cover Impact Resistant Push-Twist Lock	IP44
TE Connectivity Raychem Cable Protection F31S75A	UL94 V-2	Receptacle Female Sockets	Pin and Sleeve (2P3W)	cULus	20 A	Flange Panel Mount	Screw	75 mm	75 mm	277 VAC/DC	Chemical Resistant Cover Impact Resistant Push-Twist Lock	IP67 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.36
		5	$ 21.30
		10	$ 19.70
		50	$ 18.75
LCSC	Piece	1	$ 52.00
		200	$ 20.75
		500	$ 20.06
		1000	$ 19.71

Description

General part information

F31S Series

Power Connector Receptacle, Female Sockets Pin and Sleeve (2P3W) Panel Mount, Flange, Angled
