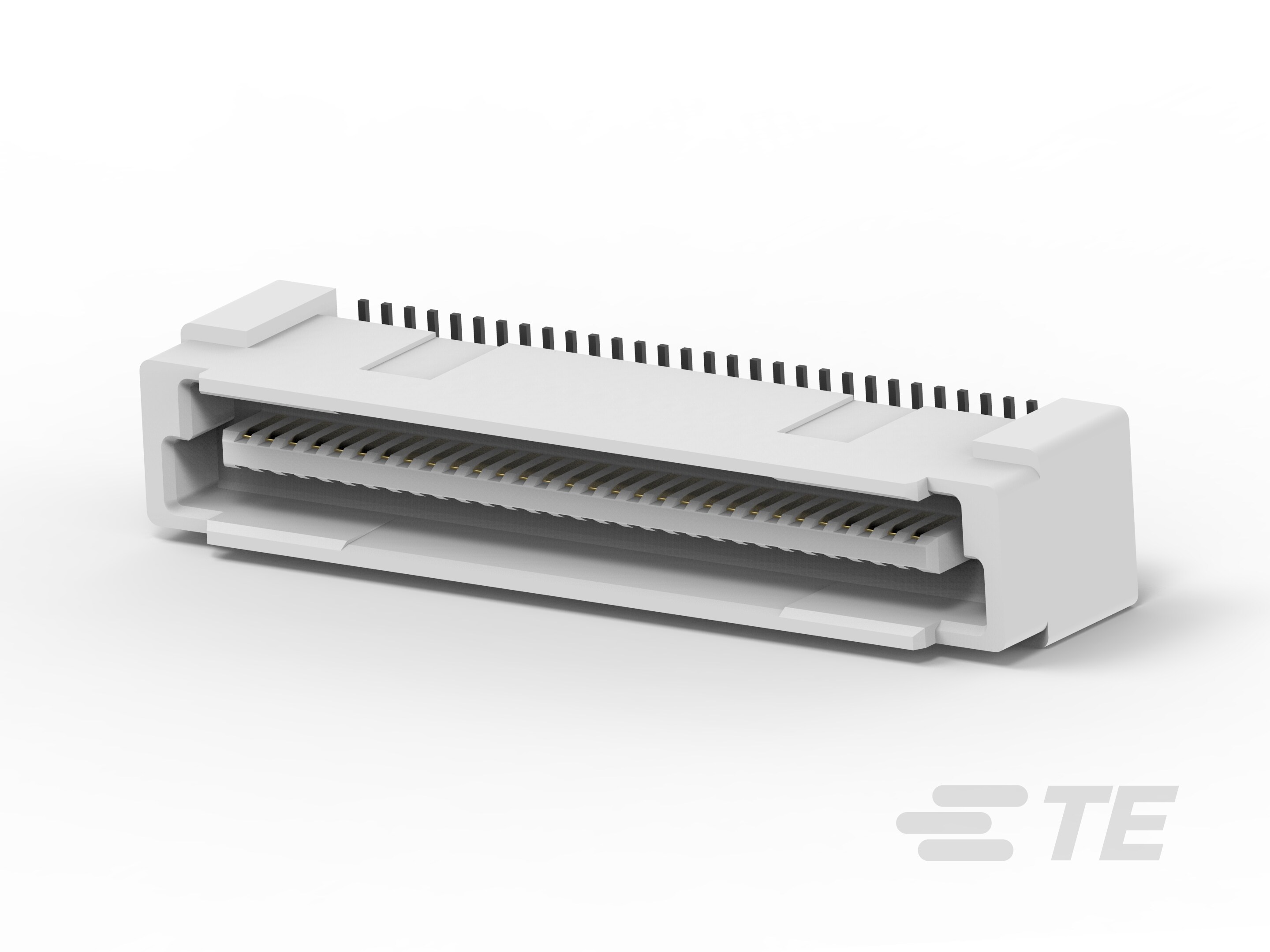

0.8FH,P08H.5,060,08/Sn,TR,SC-3-5177986-2

3-5177986-2

Active
TE Connectivity AMP Connectors

0.8FH,P08H.5,060,08/SN,TR,SC

0.8FH,P08H.5,060,08/Sn,TR,SC-3-5177986-2

3-5177986-2

Active
TE Connectivity AMP Connectors

0.8FH,P08H.5,060,08/SN,TR,SC

Description

General part information

5177986 Series

PCB Mount Header, Vertical, Board-to-Board, 60 Position, .8 mm [.031 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, Signal, Free Height

Technical Specifications

Parameters and characteristics for this part

Specification3-5177986-2
Connector TypeCenter Strip Contacts, Plug
Contact FinishGold
Contact Finish Thickness8 µin
FeaturesBoard Guide
Height Above Board0.309 in
Mated Stacking Height Options8mm, 12mm, 16mm, 20mm
Mounting TypeSurface Mount
Number of Positions60
Number of Rows2
Pitch0.031 in
