TE Connectivity AMP Connectors

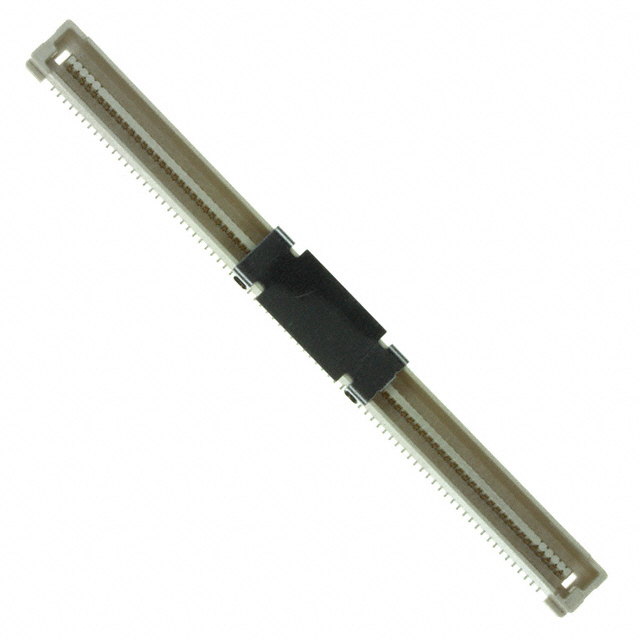

CONNECTOR, STACKING, PLUG, 160POS, 2ROWS ROHS COMPLIANT: YES

5177986-8

5177986-8

Active
TE Connectivity AMP Connectors

CONNECTOR, STACKING, PLUG, 160POS, 2ROWS ROHS COMPLIANT: YES

Description

General part information

5177986 Series

PCB Mount Header, Vertical, Board-to-Board, 160 Position, .8 mm [.031 in] Centerline, Fully Shrouded, Gold (Au), Surface Mount, Signal, Free Height

Technical Specifications

Parameters and characteristics for this part

Specification5177986-8
Connector TypeCenter Strip Contacts, Plug
Contact FinishGold
Contact Finish Thickness8 µin
FeaturesBoard Guide
Height Above Board0.191 in
Mated Stacking Height Options9mm, 5mm, 13mm, 17mm
Mounting TypeSurface Mount
Number of Positions160
Number of Rows2
Pitch0.031 in
