Cable Assemblies

A3CKB-4006M

Active

TE Connectivity Raychem Cable Protection

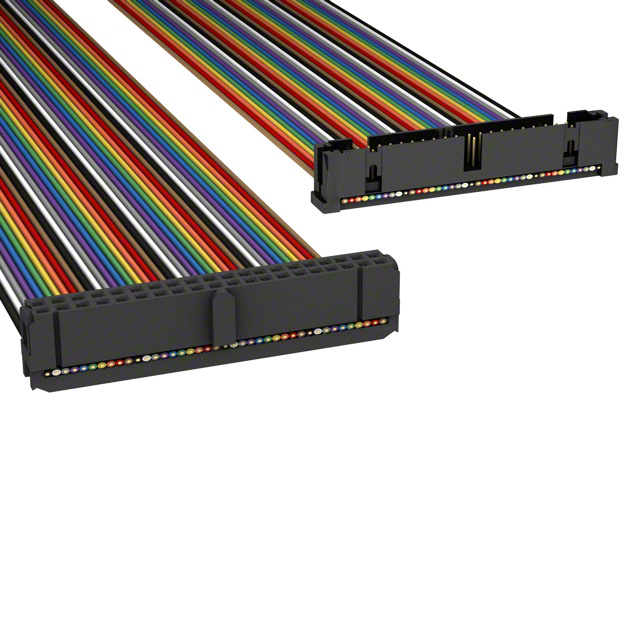

IDC CABLE - AKC40B/AE40M/APK40B

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A3CKB-4006M

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length	152.4 mm
Length	6 "
Length	0.5 '
Number of Positions	40
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

A3CKB Series

Part	Contact Finish Thickness	Contact Finish Thickness	Color	Length	Length	Length	Contact Finish	Pitch - Cable	Pitch - Cable	Shielding	Number of Rows	Pitch - Connector	Pitch - Connector	Connector Type	Cable Termination	Features	Number of Positions	Length [x]	Length [x]
TE Connectivity Raychem Cable Protection A3CKB-1006M	0.76 Ám	30 Áin	Multiple Ribbon	152.4 mm	6 "	0.5 '	Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	10
TE Connectivity Raychem Cable Protection A3CKB-6418G	0.76 Ám	30 Áin					Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	64	457.2 mm	1.5 ft
TE Connectivity Raychem Cable Protection A3CKB-4018M	0.76 Ám	30 Áin	Multiple Ribbon				Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	40	457.2 mm	1.5 ft
TE Connectivity Raychem Cable Protection A3CKB-1018M	0.76 Ám	30 Áin	Multiple Ribbon				Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	10	457.2 mm	1.5 ft
TE Connectivity Raychem Cable Protection A3CKB-2636G	0.76 Ám	30 Áin					Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	26	914.4 mm	3 ft
TE Connectivity Raychem Cable Protection A3CKB-6406M	0.76 Ám	30 Áin	Multiple Ribbon	152.4 mm	6 "	0.5 '	Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	64
TE Connectivity Raychem Cable Protection A3CKB-3406G	0.76 Ám	30 Áin		152.4 mm	6 "	0.5 '	Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	34
TE Connectivity Raychem Cable Protection A3CKB-3436M	0.76 Ám	30 Áin	Multiple Ribbon				Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	34	914.4 mm	3 ft
TE Connectivity Raychem Cable Protection A3CKB-4006M	0.76 Ám	30 Áin	Multiple Ribbon	152.4 mm	6 "	0.5 '	Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	40
TE Connectivity Raychem Cable Protection A3CKB-1406G	0.76 Ám	30 Áin		152.4 mm	6 "	0.5 '	Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	14

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.82
		10	$ 19.74
		25	$ 18.32
		50	$ 17.32
		100	$ 16.37
		250	$ 15.21
		500	$ 14.38

Description

General part information

A3CKB Series

40 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet
