A3CKB Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

IDC CABLE - AKC10B/AE10M/APK10B

Part	Contact Finish Thickness	Contact Finish Thickness	Color	Length	Length	Length	Contact Finish	Pitch - Cable	Pitch - Cable	Shielding	Number of Rows	Pitch - Connector	Pitch - Connector	Connector Type	Cable Termination	Features	Number of Positions	Length [x]	Length [x]
TE Connectivity Raychem Cable Protection A3CKB-1006M	0.76 Ám	30 Áin	Multiple Ribbon	152.4 mm	6 "	0.5 '	Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	10
TE Connectivity Raychem Cable Protection A3CKB-6418G	0.76 Ám	30 Áin					Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	64	457.2 mm	1.5 ft
TE Connectivity Raychem Cable Protection A3CKB-4018M	0.76 Ám	30 Áin	Multiple Ribbon				Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	40	457.2 mm	1.5 ft
TE Connectivity Raychem Cable Protection A3CKB-1018M	0.76 Ám	30 Áin	Multiple Ribbon				Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	10	457.2 mm	1.5 ft

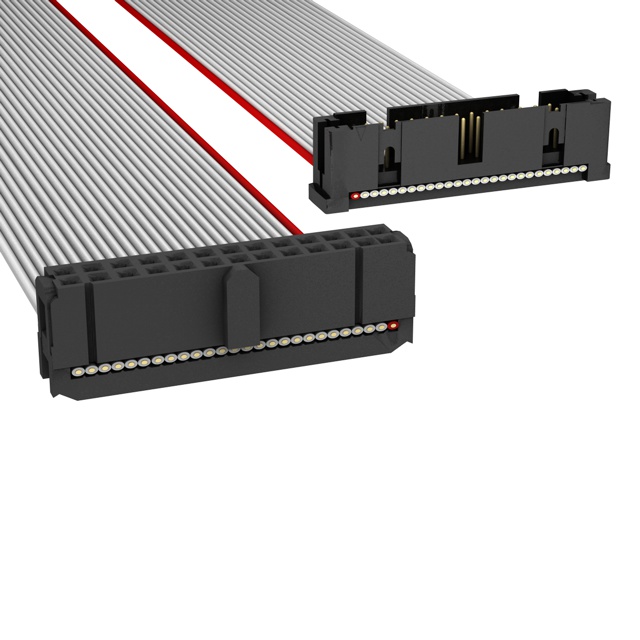

TE Connectivity Raychem Cable Protection A3CKB-2636G	0.76 Ám	30 Áin					Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	26	914.4 mm	3 ft
TE Connectivity Raychem Cable Protection A3CKB-6406M	0.76 Ám	30 Áin	Multiple Ribbon	152.4 mm	6 "	0.5 '	Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	64

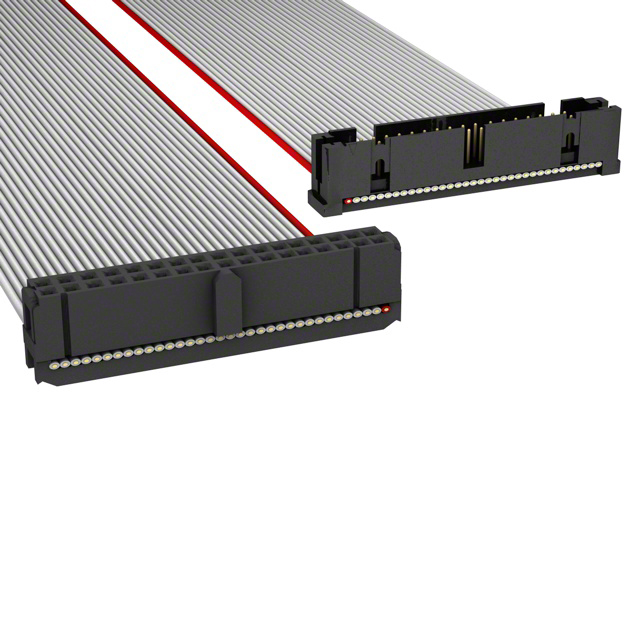

TE Connectivity Raychem Cable Protection A3CKB-3406G	0.76 Ám	30 Áin		152.4 mm	6 "	0.5 '	Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	34
TE Connectivity Raychem Cable Protection A3CKB-3436M	0.76 Ám	30 Áin	Multiple Ribbon				Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	34	914.4 mm	3 ft
TE Connectivity Raychem Cable Protection A3CKB-4006M	0.76 Ám	30 Áin	Multiple Ribbon	152.4 mm	6 "	0.5 '	Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	40

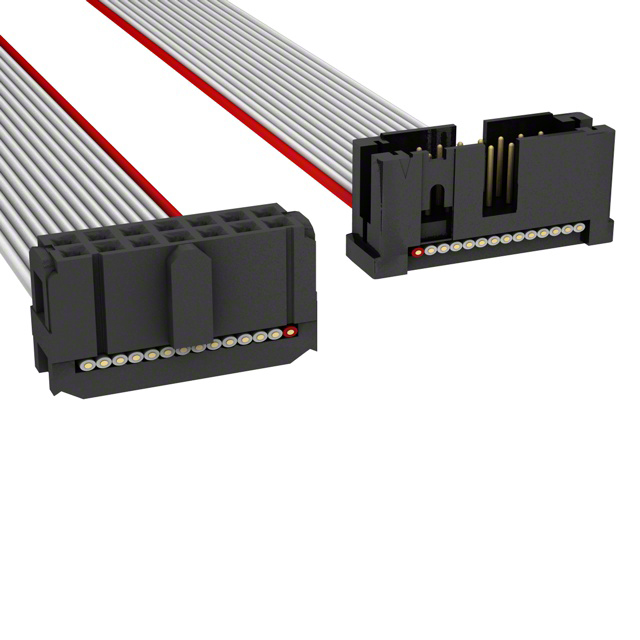

TE Connectivity Raychem Cable Protection A3CKB-1406G	0.76 Ám	30 Áin		152.4 mm	6 "	0.5 '	Gold	0.05 "	1.27 mm	Unshielded	2	0.1 in	2.54 mm	Socket to Plug	IDC	Polarizing Key	14
