R161404000

Active

Radiall USA, Inc.

N F SQF C50

Deep-Dive with AI

Search across all available documentation for this part.

R161404000

Active

Radiall USA, Inc.

N F SQF C50

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R161404000

Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	1400 V

R16140 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Contact Termination	Connector Type	Impedance	Center Contact Material	Mounting Feature	Center Contact Plating	Ingress Protection	Insertion Loss	Body Finish	Connector Style	Shield Termination	Frequency - Max [Max]	Number of Ports	Dielectric Material	Voltage Rating	Mating Cycles	Housing Color
Radiall USA, Inc. R161404000W	155 °C	-55 °C	Brass	Solder Cup	Female Socket Jack	50 Ohms	Beryllium Copper	Flange	Gold	IP67 - Dust Tight Waterproof	0.15 dB	White Bronze	N Type	Solder	11 GHz	1	Polytetrafluoroethylene (PTFE)	1400 V	500	Silver
Radiall USA, Inc. R161404C01	85 °C	-40 °C	Composite	Solder Cup	Female Socket Jack	50 Ohms	Bronze	Flange	Silver	IP67 - Dust Tight Waterproof	0.15 dB		N Type	Solder	11 GHz	1	Polytetrafluoroethylene (PTFE)	850 V	500	Black
Radiall USA, Inc. R161404000	155 °C	-55 °C	Brass	Solder Cup	Female Socket Jack	50 Ohms	Beryllium Copper	Flange	Gold				N Type	Solder	11 GHz	1	Polytetrafluoroethylene (PTFE)	1400 V	500
Radiall USA, Inc. R161404450
Radiall USA, Inc. R161404137	155 °C	-55 °C	Brass	Solder Cup	Female Socket Jack	50 Ohms	Brass	Flange	Silver	IP67 - Dust Tight Waterproof	0.15 dB	White Bronze	N Type	Solder	11 GHz	1	Polytetrafluoroethylene (PTFE)	1400 V	500	Silver
Radiall USA, Inc. R161404437
Radiall USA, Inc. R161404C01W	85 °C	-40 °C	Composite	Solder Cup	Female Socket Jack	50 Ohms	Bronze	Flange	Silver	IP67 - Dust Tight Waterproof	0.15 dB		N Type	Solder	11 GHz	1	Polytetrafluoroethylene (PTFE)	850 V	500	Black
Radiall USA, Inc. R161404137W	155 °C	-55 °C	Brass	Solder Cup	Female Socket Jack	50 Ohms	Brass	Flange	Silver	IP67 - Dust Tight Waterproof	0.15 dB	White Bronze	N Type	Solder	11 GHz	1	Polytetrafluoroethylene (PTFE)	1400 V	500	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.33
		10	$ 10.93
		25	$ 10.51
		50	$ 10.09
		100	$ 9.53
		250	$ 8.69
		500	$ 8.13
		1000	$ 7.46

Description

General part information

R16140 Series

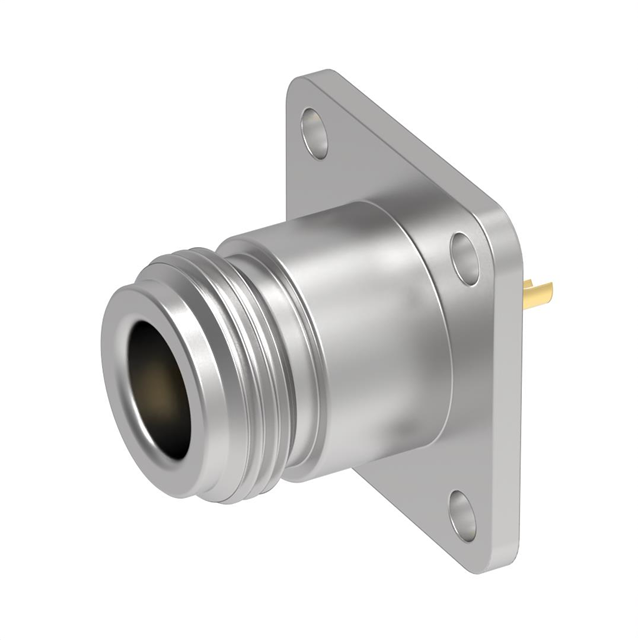

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
