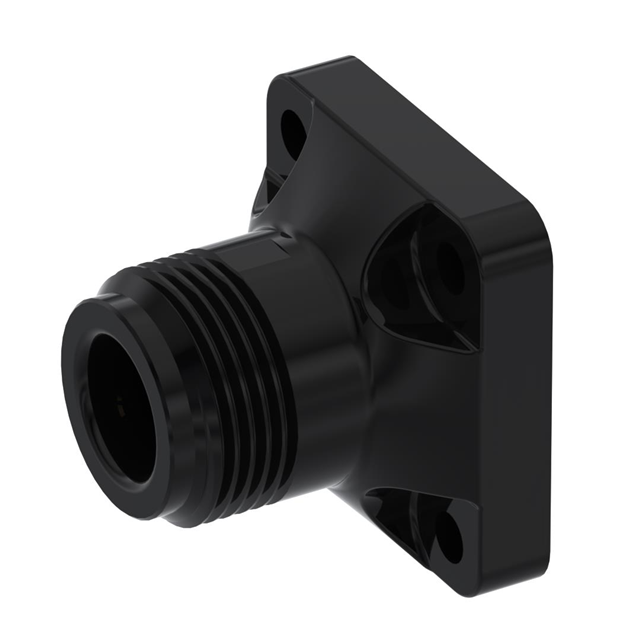

Specification	R161404C01

Body Material	Composite
Center Contact Material	Bronze
Center Contact Plating	Silver
Connector Style	N Type
Connector Type	Jack, Female Socket
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	11 GHz
Housing Color	Black
Impedance	50 Ohm
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Insertion Loss	0.15 dB
Mating Cycles	500 cycles
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Shield Termination	Solder
Voltage Rating	850 V

R16140 Series

Part	Body Material	Ingress Protection Description	Ingress Protection IP Rating	Body Finish	Dielectric Material	Insertion Loss	Voltage Rating	Operating Temperature (Max)	Operating Temperature (Min)	Mating Cycles	Center Contact Plating	Connector Style	Contact Termination	Fastening Type	Impedance	Housing Color	Number of Ports	Shield Termination	Mounting Feature	Connector Type	Center Contact Material	Frequency - Max	Mounting Type
Radiall USA, Inc. R161404000W	Brass	Dust Tight Waterproof	IP67	White Bronze	Polytetrafluoroethylene (PTFE)	0.15 dB	1400 V	155 °C	-55 °C	500 cycles	Gold	N Type	Solder Cup	Threaded	50 Ohm	Silver	1	Solder	Flange	Female Socket Jack	Beryllium Copper	11 GHz	Panel Mount
Radiall USA, Inc. R161404C01	Composite	Dust Tight Waterproof	IP67		Polytetrafluoroethylene (PTFE)	0.15 dB	850 V	85 °C	-40 °C	500 cycles	Silver	N Type	Solder Cup	Threaded	50 Ohm	Black	1	Solder	Flange	Female Socket Jack	Bronze	11 GHz	Panel Mount
Radiall USA, Inc. R161404000	Brass				Polytetrafluoroethylene (PTFE)		1400 V	155 °C	-55 °C	500 cycles	Gold	N Type	Solder Cup	Threaded	50 Ohm		1	Solder	Flange	Female Socket Jack	Beryllium Copper	11 GHz	Panel Mount
Radiall USA, Inc. R161404450
Radiall USA, Inc. R161404137	Brass	Dust Tight Waterproof	IP67	White Bronze	Polytetrafluoroethylene (PTFE)	0.15 dB	1400 V	155 °C	-55 °C	500 cycles	Silver	N Type	Solder Cup	Threaded	50 Ohm	Silver	1	Solder	Flange	Female Socket Jack	Brass	11 GHz	Panel Mount
Radiall USA, Inc. R161404C02	Composite	Dust Tight Waterproof	IP67		Polytetrafluoroethylene (PTFE)	0.15 dB	850 V	85 °C	-40 °C	500 cycles	Silver	N Type	Solder Cup	Threaded	50 Ohm	Black	1	Solder	Flange	Female Socket Jack	Bronze	11 GHz	Panel Mount
Radiall USA, Inc. R161404437
Radiall USA, Inc. R161404C01W	Composite	Dust Tight Waterproof	IP67		Polytetrafluoroethylene (PTFE)	0.15 dB	850 V	85 °C	-40 °C	500 cycles	Silver	N Type	Solder Cup	Threaded	50 Ohm	Black	1	Solder	Flange	Female Socket Jack	Bronze	11 GHz	Panel Mount
Radiall USA, Inc. R161404137W	Brass	Dust Tight Waterproof	IP67	White Bronze	Polytetrafluoroethylene (PTFE)	0.15 dB	1400 V	155 °C	-55 °C	500 cycles	Silver	N Type	Solder Cup	Threaded	50 Ohm	Silver	1	Solder	Flange	Female Socket Jack	Brass	11 GHz	Panel Mount
