Q3-0.005-00-58

Active

Bergquist

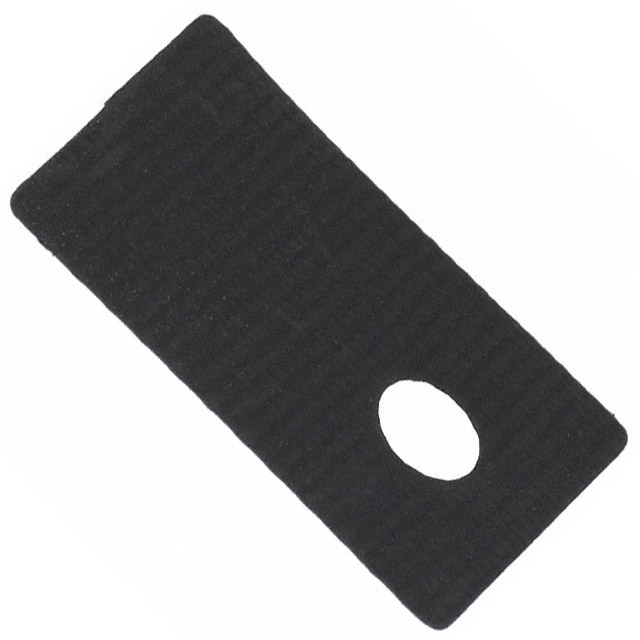

THERM PAD 19.05MMX12.7MM BLACK

Search across all available documentation for this part.

Active

Bergquist

THERM PAD 19.05MMX12.7MM BLACK

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad Black 19.05mm x 12.70mm Rectangular

Technical documentation and resources

Specification	Q3-0.005-00-58	Q3-0.005 Series

	-	-
Adhesive	-	Adhesive - One Side
Backing, Carrier	Fiberglass	Fiberglass
Color	Black	Black
Material	Elastomer	Elastomer
Outline [x]	19.05 mm	15.87 - 39.7 mm
Outline [y]	12.7 mm	5.08 - 26.67 mm
Shape	Rectangular	Rectangular, Rhombus, Round
Shelf Life	-	6 Months
Thermal Conductivity	2 W/m-K	2 W/m-K
Thermal Resistivity	0.35 °C/W	0.35 °C/W
Thickness [x]	0.005 in	0.005 in
Thickness [x]	0.127 mm	0.127 mm
Usage	TO-220	TO-218, TO-220, TO-247, SIP, TO-3, DO-4, Power Module, TO-66

Part	Shape	Thickness [x]	Thickness [x]	Usage	Material	Color	Thermal Resistivity	Outline [x]	Outline [y]	Backing, Carrier	Thermal Conductivity	Shelf Life	Adhesive
Bergquist Q3-0.005-00-90	Rectangular	0.005 in	0.127 mm	TO-218, TO-220, TO-247	Elastomer	Black	0.35 °C/W	21.84 mm	18.79 mm	Fiberglass	2 W/m-K
Bergquist Q3-0.005-00-105	Rectangular	0.005 in	0.127 mm	SIP	Elastomer	Black	0.35 °C/W	36.83 mm	21.29 mm	Fiberglass	2 W/m-K
Bergquist Q3-0.005-AC-18	Rhombus	0.005 in	0.127 mm	TO-3	Elastomer	Black	0.35 °C/W	39.7 mm	26.67 mm	Fiberglass	2 W/m-K	6 Months	Adhesive - One Side
Bergquist Q3-0.005-AC-46
Bergquist Q3-0.005-00-22	Round	0.005 in	0.127 mm	DO-4	Elastomer	Black	0.35 °C/W	15.87 mm	5.08 mm	Fiberglass	2 W/m-K
Bergquist Q3-0.005-00-67	Rectangular	0.005 in	0.127 mm	Power Module	Elastomer	Black	0.35 °C/W	38.1 mm	22.86 mm	Fiberglass	2 W/m-K
Bergquist Q3-0.005-00-51	Rectangular	0.005 in	0.127 mm	TO-220	Elastomer	Black	0.35 °C/W	17.45 mm	14.27 mm	Fiberglass	2 W/m-K
Bergquist Q3-0.005-00-58	Rectangular	0.005 in	0.127 mm	TO-220	Elastomer	Black	0.35 °C/W	19.05 mm	12.7 mm	Fiberglass	2 W/m-K
Bergquist Q3-0.005-00-30	Rhombus	0.005 in	0.127 mm	TO-66	Elastomer	Black	0.35 °C/W	31.75 mm	17.78 mm	Fiberglass	2 W/m-K
