Q3-0.005-AC-18

Active

Bergquist

THERM PAD 39.7X26.67MM W/ADH

Search across all available documentation for this part.

Active

Bergquist

THERM PAD 39.7X26.67MM W/ADH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1600	$ 0.60

General part information

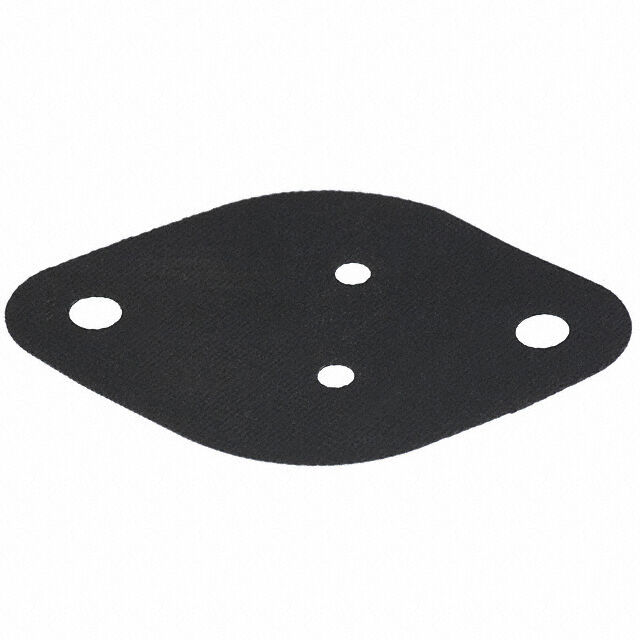

Thermal Pad Black 39.70mm x 26.67mm Rhombus Adhesive - One Side

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	Q3-0.005-AC-18	Q3-0.005 Series

	-	-
Adhesive	Adhesive - One Side	Adhesive - One Side
Backing, Carrier	Fiberglass	Fiberglass
Color	Black	Black
Material	Elastomer	Elastomer
Outline [x]	39.7 mm	15.87 - 39.7 mm
Outline [y]	26.67 mm	5.08 - 26.67 mm
Shape	Rhombus	Rectangular, Rhombus, Round
Shelf Life	6 Months	6 Months
Thermal Conductivity	2 W/m-K	2 W/m-K
Thermal Resistivity	0.35 °C/W	0.35 °C/W
Thickness [x]	0.005 in	0.005 in
Thickness [x]	0.127 mm	0.127 mm
Usage	TO-3	TO-218, TO-220, TO-247, SIP, TO-3, DO-4, Power Module, TO-66

THERM PAD 21.84MMX18.79MM BLACK

Part	Shape	Thickness [x]	Thickness [x]	Usage	Material	Color	Thermal Resistivity	Outline [x]	Outline [y]	Backing, Carrier	Thermal Conductivity	Shelf Life	Adhesive
Bergquist Q3-0.005-00-90	Rectangular	0.005 in	0.127 mm	TO-218, TO-220, TO-247	Elastomer	Black	0.35 °C/W	21.84 mm	18.79 mm	Fiberglass	2 W/m-K
Bergquist Q3-0.005-00-105	Rectangular	0.005 in	0.127 mm	SIP	Elastomer	Black	0.35 °C/W	36.83 mm	21.29 mm	Fiberglass	2 W/m-K
Bergquist Q3-0.005-AC-18	Rhombus	0.005 in	0.127 mm	TO-3	Elastomer	Black	0.35 °C/W	39.7 mm	26.67 mm	Fiberglass	2 W/m-K	6 Months	Adhesive - One Side
Bergquist Q3-0.005-AC-46
Bergquist Q3-0.005-00-22	Round	0.005 in	0.127 mm	DO-4	Elastomer	Black	0.35 °C/W	15.87 mm	5.08 mm	Fiberglass	2 W/m-K
Bergquist Q3-0.005-00-67	Rectangular	0.005 in	0.127 mm	Power Module	Elastomer	Black	0.35 °C/W	38.1 mm	22.86 mm	Fiberglass	2 W/m-K
Bergquist Q3-0.005-00-51	Rectangular	0.005 in	0.127 mm	TO-220	Elastomer	Black	0.35 °C/W	17.45 mm	14.27 mm	Fiberglass	2 W/m-K
Bergquist Q3-0.005-00-58	Rectangular	0.005 in	0.127 mm	TO-220	Elastomer	Black	0.35 °C/W	19.05 mm	12.7 mm	Fiberglass	2 W/m-K
Bergquist Q3-0.005-00-30	Rhombus	0.005 in	0.127 mm	TO-66	Elastomer	Black	0.35 °C/W	31.75 mm	17.78 mm	Fiberglass	2 W/m-K
