14-3518-101

Active

Aries Electronics

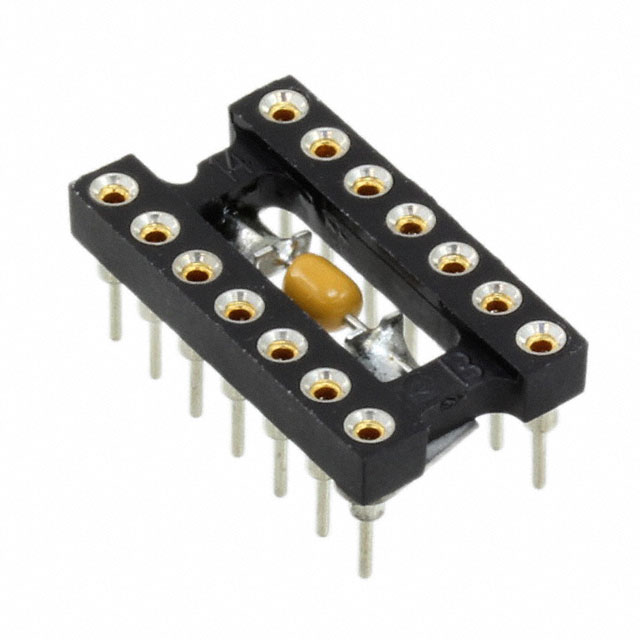

CONN IC DIP SOCKET 14POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

14-3518-101

Active

Aries Electronics

CONN IC DIP SOCKET 14POS GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	14-3518-101

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post [custom]	Brass
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Glass Filled, Polyamide (PA46), Nylon 4/6
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions or Pins (Grid)	14
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in
Type	0.3 "
Type	7.62 mm
Type	DIP

14-3518 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Housing Material	Contact Material - Post [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination Post Length	Termination Post Length	Mounting Type	Features	Current Rating (Amps)	Termination	Contact Material - Mating	Type	Type	Type	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Contact Finish - Post	Number of Positions or Pins (Grid)	Material Flammability Rating	Pitch - Post	Pitch - Post
Aries Electronics 14-3518-10T	200 µin	5.08 µm	Glass Filled Nylon 4/6 Polyamide (PA46)	Brass	10 çin	0.25 çm	3.18 mm	0.125 in	Through Hole	Open Frame	3 A	Solder	Beryllium Copper	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	Gold	Tin	14	UL94 V-0	2.54 mm	0.1 in
Aries Electronics 14-3518-112	10 çin	0.25 çm	Glass Filled Nylon 4/6 Polyamide (PA46)	Brass	10 çin	0.25 çm	3.18 mm	0.125 in	Through Hole	Open Frame	3 A	Solder	Beryllium Copper	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	Gold	Gold	14	UL94 V-0	2.54 mm	0.1 in
Aries Electronics 14-3518-10	200 µin	5.08 µm	Glass Filled Nylon 4/6 Polyamide (PA46)	Brass	10 çin	0.25 çm	3.18 mm	0.125 in	Through Hole	Open Frame	3 A	Solder	Beryllium Copper	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	Gold	Tin	14	UL94 V-0	2.54 mm	0.1 in
Aries Electronics 14-3518-101	200 µin	5.08 µm	Glass Filled Nylon 4/6 Polyamide (PA46)	Brass	10 çin	0.25 çm	3.18 mm	0.125 in	Through Hole	Open Frame	3 A	Solder	Beryllium Copper	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	Gold	Tin	14	UL94 V-0	2.54 mm	0.1 in
Aries Electronics 14-3518-111	10 çin	0.25 çm	Glass Filled Nylon 4/6 Polyamide (PA46)	Brass	10 çin	0.25 çm	3.18 mm	0.125 in	Through Hole	Open Frame	3 A	Solder	Beryllium Copper	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	Gold	Gold	14	UL94 V-0	2.54 mm	0.1 in
Aries Electronics 14-3518-01	200 µin	5.08 µm	Glass Filled Nylon 4/6 Polyamide (PA46)	Brass	10 çin	0.25 çm	3.18 mm	0.125 in	Through Hole	Open Frame	3 A	Solder	Beryllium Copper	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	Gold	Tin	14	UL94 V-0	2.54 mm	0.1 in
Aries Electronics 14-3518-00	200 µin	5.08 µm	Glass Filled Nylon 4/6 Polyamide (PA46)	Brass	10 çin	0.25 çm	3.18 mm	0.125 in	Surface Mount	Open Frame	3 A	Solder	Beryllium Copper	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	Gold	Tin	14	UL94 V-0	2.54 mm	0.1 in
Aries Electronics 14-3518-101H	200 µin	5.08 µm	Glass Filled Nylon 4/6 Polyamide (PA46)	Brass	10 çin	0.25 çm	3.18 mm	0.125 in	Through Hole	Open Frame	3 A	Solder	Beryllium Copper	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	Gold	Tin	14	UL94 V-0	2.54 mm	0.1 in
Aries Electronics 14-3518-102	200 µin	5.08 µm	Glass Filled Nylon 4/6 Polyamide (PA46)	Brass	10 çin	0.25 çm	3.18 mm	0.125 in	Through Hole	Open Frame	3 A	Solder	Beryllium Copper	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	Gold	Tin	14	UL94 V-0	2.54 mm	0.1 in
Aries Electronics 14-3518-10M	200 µin	5.08 µm	Glass Filled Nylon 4/6 Polyamide (PA46)	Brass	10 çin	0.25 çm	3.18 mm	0.125 in	Through Hole	Open Frame	3 A	Solder	Beryllium Copper	0.3 "	7.62 mm	DIP	0.1 in	2.54 mm	Gold	Tin	14	UL94 V-0	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.12
		10	$ 3.50
		25	$ 3.28
		50	$ 3.13
		100	$ 2.98
		250	$ 2.79
		500	$ 2.66
		1000	$ 2.53
		2500	$ 2.37

Description

General part information

14-3518 Series

14 (2 x 7) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
