150220-5002-TB

Active

CONN RCPT 20P 0.079 GOLD PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

150220-5002-TB

Active

CONN RCPT 20P 0.079 GOLD PCB R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

150220 Series

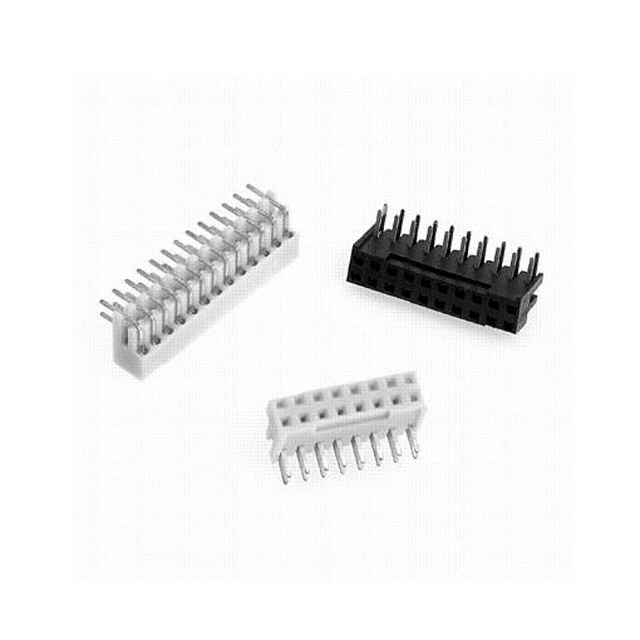

20 Position Receptacle Connector 0.079" (2.00mm) Through Hole, Right Angle Gold

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	150220-5002-TB	150220 Series

Connector Type	Receptacle	Receptacle
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	15 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.38 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	2.54 mm	2.54 mm
Contact Length - Post	0.1 in	0.1 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Fastening Type	Push-Pull	Push-Pull
Features	-	Board Guide
Insulation Color	Black	Black
Insulation Height	0.179 "	0.177 - 0.183 in
Insulation Height	4.55 mm	4.5 - 4.65 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Surface Mount, Through Hole, Through Hole, Right Angle
Number of Positions	20	20
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	500 V	500 V

150220 Series

CONN RCPT 20POS 0.079 GOLD SMD

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Insulation Material	Mounting Type	Fastening Type	Number of Positions	Contact Finish - Post	Insulation Height	Insulation Height	Contact Shape	Termination	Connector Type	Style	Insulation Color	Number of Positions Loaded	Number of Rows	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post
3M 150220-2020-TB	200 µin	5.08 µm	Copper Alloy	UL94 V-0	30 Áin	0.76 Ám	Female Socket	0.079 in	2 mm	500 V	Thermoplastic	Surface Mount	Push-Pull	20	Tin-Lead	4.65 mm	0.183 in	Square	Solder	Receptacle	Board to Board, Cable	Black	All	2	Board Guide	105 ░C	-55 °C	Gold	0.079 in	2 mm
3M 150220-6002-RB	200 µin	5.08 µm	Copper Alloy	UL94 V-0	30 Áin	0.76 Ám	Female Socket	0.079 in	2 mm	500 V	Thermoplastic	Through Hole	Push-Pull	20	Tin	4.5 mm	0.177 in	Square	Solder	Receptacle	Board to Board, Cable	Black	All	2		105 ░C	-55 °C	Gold	0.079 in	2 mm	2.54 mm	0.1 in
3M 150220-2020-RB	200 µin	5.08 µm	Copper Alloy	UL94 V-0	30 Áin	0.76 Ám	Female Socket	0.079 in	2 mm	500 V	Thermoplastic	Surface Mount	Push-Pull	20	Tin	4.65 mm	0.183 in	Square	Solder	Receptacle	Board to Board, Cable	Black	All	2	Board Guide	105 ░C	-55 °C	Gold	0.079 in	2 mm
3M 150220-6002-TB	200 µin	5.08 µm	Copper Alloy	UL94 V-0	30 Áin	0.76 Ám	Female Socket	0.079 in	2 mm	500 V	Thermoplastic	Through Hole	Push-Pull	20	Tin-Lead	4.5 mm	0.177 in	Square	Solder	Receptacle	Board to Board, Cable	Black	All	2		105 ░C	-55 °C	Gold	0.079 in	2 mm	2.54 mm	0.1 in
3M 150220-2000-TH	200 µin	5.08 µm	Copper Alloy	UL94 V-0	15 µin	0.38 µm	Female Socket	0.079 in	2 mm	500 V	Thermoplastic	Surface Mount	Push-Pull	20	Tin-Lead	4.65 mm	0.183 in	Square	Solder	Receptacle	Board to Board, Cable	Black	All	2		105 ░C	-55 °C	Gold	0.079 in	2 mm
3M 150220-5002-TB	200 µin	5.08 µm	Copper Alloy	UL94 V-0	30 Áin	0.76 Ám	Female Socket	0.079 in	2 mm	500 V	Thermoplastic	Through Hole, Right Angle	Push-Pull	20	Tin-Lead	4.55 mm	0.179 "	Square	Solder	Receptacle	Board to Board, Cable	Black	All	2		105 ░C	-55 °C	Gold	0.079 in	2 mm	2.54 mm	0.1 in
3M 150220-2000-TB	200 µin	5.08 µm	Copper Alloy	UL94 V-0	30 Áin	0.76 Ám	Female Socket	0.079 in	2 mm	500 V	Thermoplastic	Surface Mount	Push-Pull	20	Tin-Lead	4.65 mm	0.183 in	Square	Solder	Receptacle	Board to Board, Cable	Black	All	2		105 ░C	-55 °C	Gold	0.079 in	2 mm
