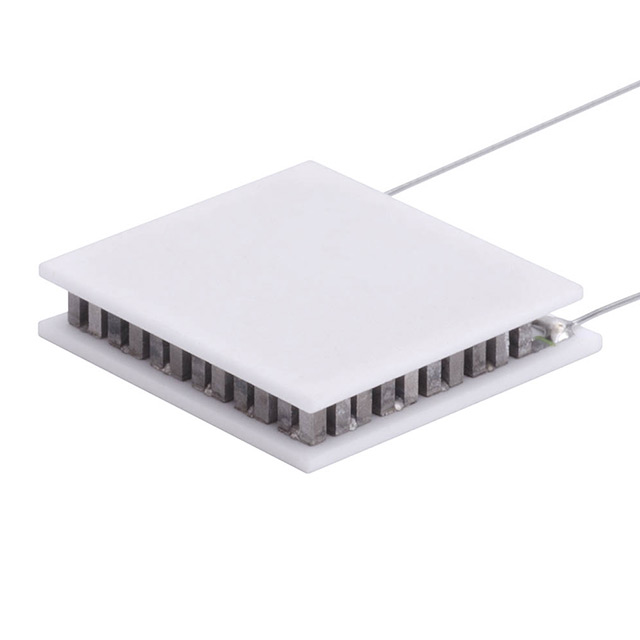

430687-504

Active

Laird Thermal Systems, Inc.

ET12,65,F2A,1312,TB,W2.25

Search across all available documentation for this part.

Active

Laird Thermal Systems, Inc.

ET12,65,F2A,1312,TB,W2.25

Technical Specifications

Parameters and characteristics for this part

Specification	430687-504

Current - Max [Max]	1.2 A
Delta Tmax @ Th	67 °C
Features	Sealed - Silicone RTV, Lead Wires
Height [z]	2.69 mm
Number of Stages	1
Operating Temperature	80 °C
Qmax @ Th	5.3 W
Resistance	5.65 Ohms
Size / Dimension [x]	13.16 mm
Size / Dimension [y]	13.16 mm
Voltage - Max [Max]	7.4 V

Part	Current - Max [Max]	Operating Temperature	Voltage - Max [Max]	Number of Stages	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Qmax @ Th	Delta Tmax @ Th	Features	Resistance
Laird Thermal Systems, Inc. 430687-504	1.2 A	80 °C	7.4 V	1	2.69 mm	13.16 mm	13.16 mm	5.3 W	67 °C	Lead Wires Sealed - Silicone RTV	5.65 Ohms
Laird Thermal Systems, Inc. 430687-506	1.2 A	80 °C	7.4 V	1	3 mm	13.16 mm	13.16 mm	5.3 W	67 °C	Lead Wires Non-Sealed	5.65 Ohms
Laird Thermal Systems, Inc. 430687-502	1.2 A	80 °C	7.4 V	1	2.69 mm	13.16 mm	13.16 mm	5.3 W	67 °C	Lead Wires Non-Sealed	5.65 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 61.82

General part information

Peltier Module 5.3W @ 25°C 1.2 A 80°C
