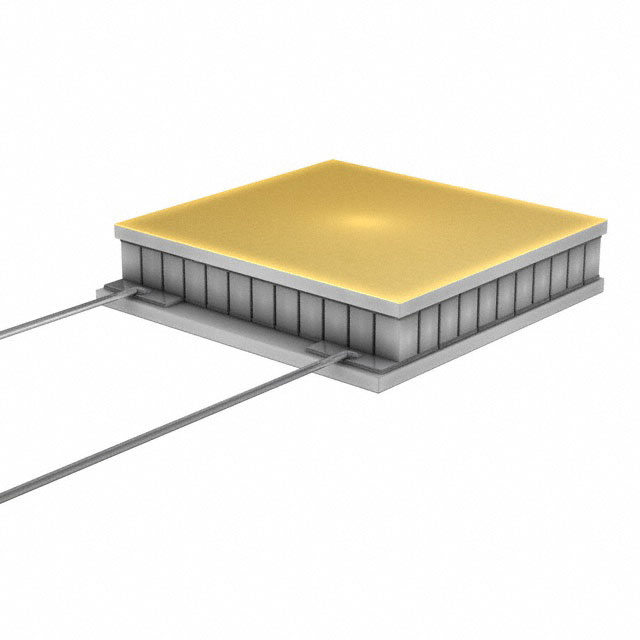

Specification	430687-506

Current - Max	1.2 A
Delta Tmax	67 °C
Features	Non-Sealed, Lead Wires
Height	3 mm
Maximum Power Dissipation (Qmax)	5.3 W
Number of Stages	1
Operating Temperature	80 °C
Resistance	5.65 Ohms
Size / Dimension Length	13.16 mm
Size / Dimension Shape	Square
Size / Dimension Width	13.16 mm
Voltage - Max	7.4 V

ET Series

Part	Number of Stages	Operating Temperature	Resistance	Delta Tmax	Maximum Power Dissipation (Qmax)	Voltage - Max	Height	Size / Dimension Shape	Size / Dimension Length	Size / Dimension Width	Current - Max	Features
Laird Thermal Systems, Inc. 430437-508	1	80 °C	1.92 Ohms	67 °C	4.5 W	4 V	1.62 mm	Rectangular	12.2 mm	6 mm	1.9 A	Lead Wires Non-Sealed
Laird Thermal Systems, Inc. 430437-507	1	80 °C	1.92 Ohms	67 °C	4.5 W	4 V	1.65 mm	Rectangular	12.2 mm	6 mm	1.9 A	Lead Wires Sealed Silicone RTV
Laird Thermal Systems, Inc. 430437-503	1	80 °C	1.92 Ohms	67 °C	4.5 W	4 V	1.62 mm	Rectangular	12.2 mm	6 mm	1.9 A	Lead Wires Non-Sealed
