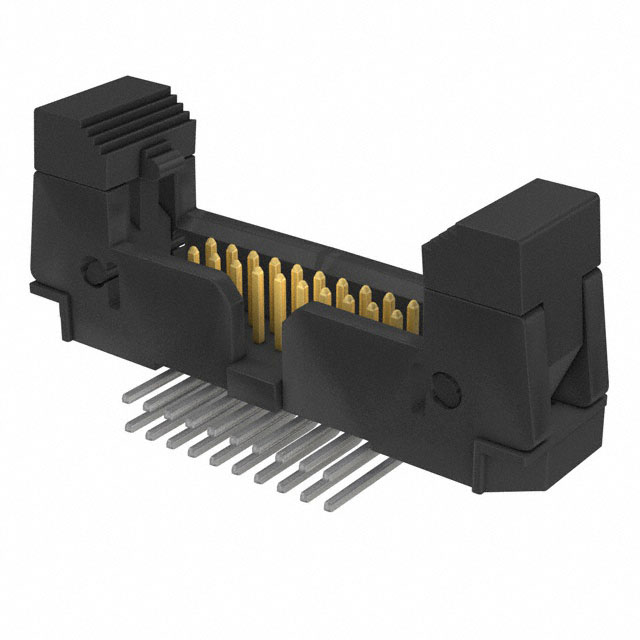

EHF-110-01-L-D-RA-TR

Obsolete

Samtec Inc.

CONN HEADER R/A 20POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

EHF-110-01-L-D-RA-TR

Obsolete

Samtec Inc.

CONN HEADER R/A 20POS 1.27MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHF-110-01-L-D-RA-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Length - Post	0.09 "
Contact Length - Post	2.29 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks
Features	Keying Slot
Insulation Color	Black
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EHF-110 Series

Part	Fastening Type	Contact Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Contact Finish - Mating	Style	Connector Type	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Features	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Insulation Color	Mounting Type	Contact Finish - Post	Insulation Height	Insulation Height	Number of Positions Loaded
Samtec Inc. EHF-110-01-L-D-RA-TR	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	10 çin	0.25 çm	2	0.05 in	1.27 mm	20	0.09 "	2.29 mm	Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header	All	3.05 mm	0.12 in	Keying Slot	Solder	-55 °C	125 °C	Square	Black	Through Hole Right Angle	Tin
Samtec Inc. EHF-110-01-S-D-SM-P-TR	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	2	0.05 in	1.27 mm	20			Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header	All	3.05 mm	0.12 in	Keying Slot Pick and Place	Solder	-55 °C	125 °C	Square	Black	Surface Mount	Tin	8.25 mm	0.325 in
Samtec Inc. EHF-110-01-S-D-SM-K-TR	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	2	0.05 in	1.27 mm	20			Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header	All	3.05 mm	0.12 in	Keying Slot Pick and Place	Solder	-55 °C	125 °C	Square	Black	Surface Mount	Tin	8.25 mm	0.325 in
Samtec Inc. EHF-110-01-S-D-SM-LC-P	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	2	0.05 in	1.27 mm	20			Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header	All	3.05 mm	0.12 in	Board Lock Keying Slot Pick and Place	Solder	-55 °C	125 °C	Square	Black	Surface Mount	Tin	8.25 mm	0.325 in
Samtec Inc. EHF-110-01-F-D-SM-K	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	3 µin	0.076 µm	2	0.05 in	1.27 mm	20			Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header	All	3.05 mm	0.12 in	Keying Slot Pick and Place	Solder	-55 °C	125 °C	Square	Black	Surface Mount	Tin	8.25 mm	0.325 in
Samtec Inc. EHF-110-01-L-D-SM-LC	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	10 çin	0.25 çm	2	0.05 in	1.27 mm	20			Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header	All	3.05 mm	0.12 in	Board Lock Keying Slot	Solder	-55 °C	125 °C	Square	Black	Surface Mount	Tin	8.25 mm	0.325 in
Samtec Inc. EHF-110-01-FM-D-SM-P	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	3 µin	0.076 µm	2	0.05 in	1.27 mm	20			Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header	All	3.05 mm	0.12 in	Keying Slot Pick and Place	Solder	-55 °C	125 °C	Square	Black	Surface Mount	Tin	8.25 mm	0.325 in
Samtec Inc. EHF-110-01-S-D-SM-P	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	2	0.05 in	1.27 mm	20			Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header	All	3.05 mm	0.12 in	Keying Slot Pick and Place	Solder	-55 °C	125 °C	Square	Black	Surface Mount	Tin	8.25 mm	0.325 in
Samtec Inc. EHF-110-01-F-D-SM-LC-01	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	3 µin	0.076 µm	2	0.05 in	1.27 mm	20			Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header		3.05 mm	0.12 in	Board Lock Keying Slot	Solder	-55 °C	125 °C	Square	Black	Surface Mount	Tin	8.25 mm	0.325 in	19
Samtec Inc. EHF-110-01-F-D-SM-07	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	3 µin	0.076 µm	2	0.05 in	1.27 mm	20			Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header		3.05 mm	0.12 in	Keying Slot	Solder	-55 °C	125 °C	Square	Black	Surface Mount	Tin	8.25 mm	0.325 in	19
