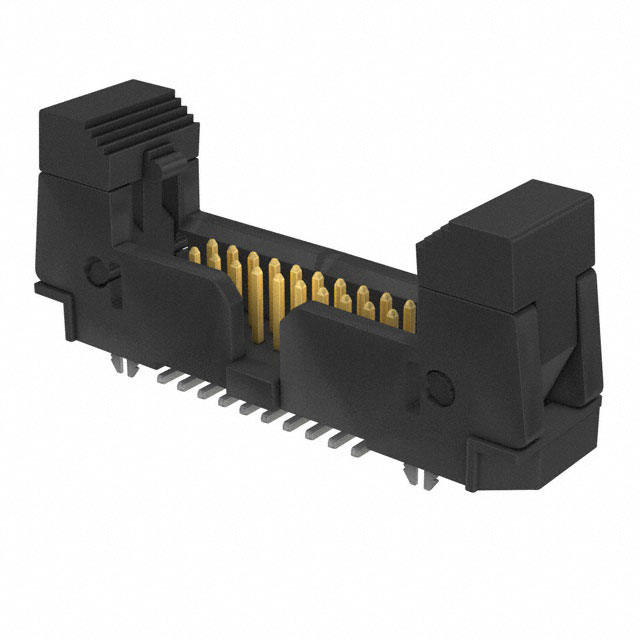

EHF-110-01-L-D-SM-LC

Active

Samtec Inc.

CONN HEADER SMD 20POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsEHF Series Other Related Documents 01 Datasheet +1

EHF-110-01-L-D-SM-LC

Active

Samtec Inc.

CONN HEADER SMD 20POS 1.27MM

Deep-Dive with AI

DocumentsEHF Series Other Related Documents 01 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EHF-110-01-L-D-SM-LC

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	3.05 mm
Contact Length - Mating	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Latch Lock/Eject Hooks
Features	Board Lock, Keying Slot
Insulation Color	Black
Insulation Height	8.25 mm
Insulation Height	0.325 in
Mounting Type	Surface Mount
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

EHF-110 Series

Part	Fastening Type	Contact Type	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Length - Post	Contact Length - Post	Contact Material	Row Spacing - Mating	Row Spacing - Mating	Current Rating (Amps)	Contact Finish - Mating	Style	Connector Type	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Features	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Insulation Color	Mounting Type	Contact Finish - Post	Insulation Height	Insulation Height	Number of Positions Loaded
Samtec Inc. EHF-110-01-L-D-RA-TR	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	10 çin	0.25 çm	2	0.05 in	1.27 mm	20	0.09 "	2.29 mm	Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header	All	3.05 mm	0.12 in	Keying Slot	Solder	-55 °C	125 °C	Square	Black	Through Hole Right Angle	Tin
Samtec Inc. EHF-110-01-S-D-SM-P-TR	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	2	0.05 in	1.27 mm	20			Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header	All	3.05 mm	0.12 in	Keying Slot Pick and Place	Solder	-55 °C	125 °C	Square	Black	Surface Mount	Tin	8.25 mm	0.325 in
Samtec Inc. EHF-110-01-S-D-SM-K-TR	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	2	0.05 in	1.27 mm	20			Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header	All	3.05 mm	0.12 in	Keying Slot Pick and Place	Solder	-55 °C	125 °C	Square	Black	Surface Mount	Tin	8.25 mm	0.325 in
Samtec Inc. EHF-110-01-S-D-SM-LC-P	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	2	0.05 in	1.27 mm	20			Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header	All	3.05 mm	0.12 in	Board Lock Keying Slot Pick and Place	Solder	-55 °C	125 °C	Square	Black	Surface Mount	Tin	8.25 mm	0.325 in
Samtec Inc. EHF-110-01-F-D-SM-K	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	3 µin	0.076 µm	2	0.05 in	1.27 mm	20			Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header	All	3.05 mm	0.12 in	Keying Slot Pick and Place	Solder	-55 °C	125 °C	Square	Black	Surface Mount	Tin	8.25 mm	0.325 in
Samtec Inc. EHF-110-01-L-D-SM-LC	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	10 çin	0.25 çm	2	0.05 in	1.27 mm	20			Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header	All	3.05 mm	0.12 in	Board Lock Keying Slot	Solder	-55 °C	125 °C	Square	Black	Surface Mount	Tin	8.25 mm	0.325 in
Samtec Inc. EHF-110-01-FM-D-SM-P	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	3 µin	0.076 µm	2	0.05 in	1.27 mm	20			Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header	All	3.05 mm	0.12 in	Keying Slot Pick and Place	Solder	-55 °C	125 °C	Square	Black	Surface Mount	Tin	8.25 mm	0.325 in
Samtec Inc. EHF-110-01-S-D-SM-P	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	30 Áin	0.76 Ám	2	0.05 in	1.27 mm	20			Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header	All	3.05 mm	0.12 in	Keying Slot Pick and Place	Solder	-55 °C	125 °C	Square	Black	Surface Mount	Tin	8.25 mm	0.325 in
Samtec Inc. EHF-110-01-F-D-SM-LC-01	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	3 µin	0.076 µm	2	0.05 in	1.27 mm	20			Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header		3.05 mm	0.12 in	Board Lock Keying Slot	Solder	-55 °C	125 °C	Square	Black	Surface Mount	Tin	8.25 mm	0.325 in	19
Samtec Inc. EHF-110-01-F-D-SM-07	Latch Lock/Eject Hooks	Male Pin	Shrouded - 4 Wall	3 µin	0.076 µm	2	0.05 in	1.27 mm	20			Phosphor Bronze	0.05 in	1.27 mm	1.75 A	Gold	Board to Cable/Wire	Header		3.05 mm	0.12 in	Keying Slot	Solder	-55 °C	125 °C	Square	Black	Surface Mount	Tin	8.25 mm	0.325 in	19

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 9.59
		10	$ 7.35
		100	$ 5.72
		500	$ 4.85
		1000	$ 4.54
