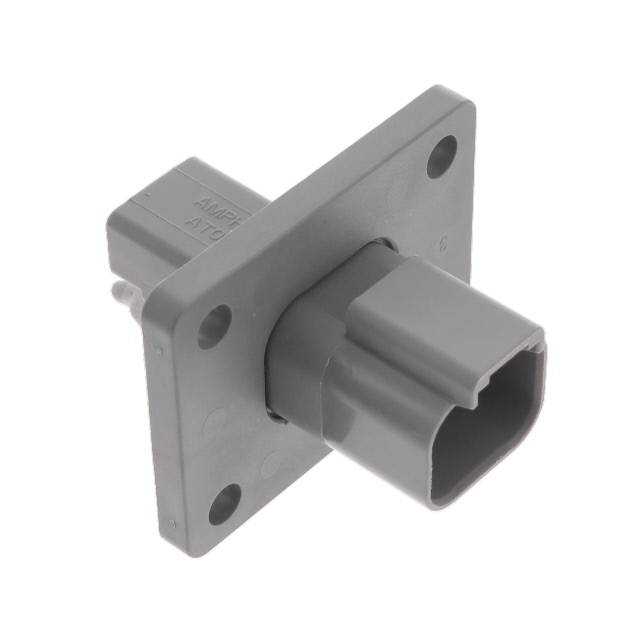

AT04-2P-L012

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 2POS FLANGE MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet A Series Family

AT04-2P-L012

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 2POS FLANGE MNT

Deep-Dive with AI

DocumentsDatasheet A Series Family

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-2P-L012

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Sealed, Mounting Flange
Insulation Material	Thermoplastic
Note	Contacts Not Included
Number of Positions	2
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT04-2P Series

Part	Insulation Material	Number of Positions	Number of Rows	Note	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Features	Connector Type	Contact Type	Color	Contact Termination	Mounting Type	Accessory Type	For Use With/Related Products	Applications	Contact Shape	Number of Positions Loaded	Current Rating (Amps)	Insulation Height	Insulation Height	Insulation Color	Termination	Ingress Protection	Shrouding	Contact Material	Contact Finish - Mating	Style	Wire Type	Cable Termination	Wire Gauge [Min]	Wire Gauge [Max]
Amphenol Sine Systems Corp AT04-2P-MM03	Thermoplastic	2	1	Contacts Not Included	-55 °C	125 °C
Amphenol Sine Systems Corp AT04-2P-PM14	Thermoplastic	2	1	Contacts Not Included	-55 °C	125 °C	Latch Holder	Cap (Cover) Mounting Flange Sealed	Receptacle	Male Pin	Black	Crimp
Amphenol Sine Systems Corp AT04-2P-EC01BLK	Thermoplastic	2	1	Contacts Not Included	-55 °C	125 °C	Latch Holder	Cap (Cover)	Receptacle	Male Pin	Black	Crimp	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-2P-RT06		2						IP67						Terminator	AT Series™
Amphenol Sine Systems Corp AT04-2P-BM03	Thermoplastic	2	1		-55 °C	125 °C	Latch Holder		Receptacle	Male Pin			Through Hole			Automotive General Purpose Industrial	Circular	All	13 A	0.835 "	21.21 mm	Black	Solder	IP67	Shrouded - 4 Wall	Copper Alloy	Nickel	Board to Cable/Wire
Amphenol Sine Systems Corp AT04-2P-BLU	Thermoplastic	2	1	Contacts Not Included	-55 °C	125 °C	Latch Holder		Receptacle	Male Pin	Blue	Crimp	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-2P-L012	Thermoplastic	2	1	Contacts Not Included	-55 °C	125 °C	Latch Holder	Mounting Flange Sealed	Receptacle	Male Pin	Gray	Crimp
Amphenol Sine Systems Corp AT04-2P-KIT01		2	1				Latch Lock	Wedge Lock	Plug	Male Pin	Gray		Free Hanging (In-Line)																Discrete	Crimp	16 AWG	18 AWG
Amphenol Sine Systems Corp AT04-2P-SR01BLK	Thermoplastic	2	1	Contacts Not Included	-55 °C	125 °C	Latch Holder	Strain Relief	Receptacle	Male Pin	Black	Crimp	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-2P-D1N4GRY		2	1				Latch Holder	Diode	Receptacle	Male Pin	Gray		Free Hanging (In-Line)																Discrete	Crimp	14 AWG	20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.74
		10	$ 3.39
		25	$ 3.21
		50	$ 3.14
		100	$ 2.99
		300	$ 2.62
		600	$ 2.54
		1200	$ 2.17
		2700	$ 2.02

Description

General part information

AT04-2P Series

2 Rectangular Connectors - Housings Receptacle Gray

Documents

Technical documentation and resources

Datasheet

A Series Family
