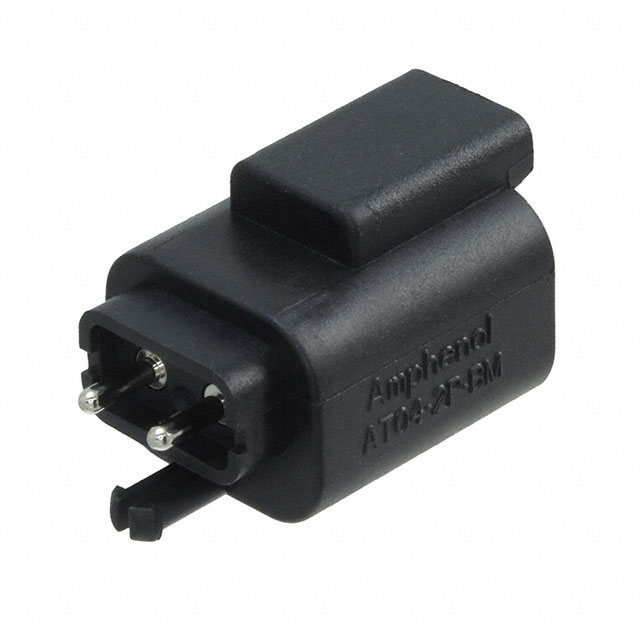

AT04-2P-BM03

Active

Amphenol Sine Systems Corp

CONN HEADER VERT 2POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsBoardLock Family Datasheet +1

AT04-2P-BM03

Active

Amphenol Sine Systems Corp

CONN HEADER VERT 2POS

Deep-Dive with AI

DocumentsBoardLock Family Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-2P-BM03

Applications	Industrial, General Purpose, Automotive
Connector Type	Receptacle
Contact Finish - Mating	Nickel
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	13 A
Fastening Type	Latch Holder
Ingress Protection	IP67
Insulation Color	Black
Insulation Height	0.835 "
Insulation Height	21.21 mm
Insulation Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

AT04-2P Series

Part	Insulation Material	Number of Positions	Number of Rows	Note	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Features	Connector Type	Contact Type	Color	Contact Termination	Mounting Type	Accessory Type	For Use With/Related Products	Applications	Contact Shape	Number of Positions Loaded	Current Rating (Amps)	Insulation Height	Insulation Height	Insulation Color	Termination	Ingress Protection	Shrouding	Contact Material	Contact Finish - Mating	Style	Wire Type	Cable Termination	Wire Gauge [Min]	Wire Gauge [Max]
Amphenol Sine Systems Corp AT04-2P-MM03	Thermoplastic	2	1	Contacts Not Included	-55 °C	125 °C
Amphenol Sine Systems Corp AT04-2P-PM14	Thermoplastic	2	1	Contacts Not Included	-55 °C	125 °C	Latch Holder	Cap (Cover) Mounting Flange Sealed	Receptacle	Male Pin	Black	Crimp
Amphenol Sine Systems Corp AT04-2P-EC01BLK	Thermoplastic	2	1	Contacts Not Included	-55 °C	125 °C	Latch Holder	Cap (Cover)	Receptacle	Male Pin	Black	Crimp	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-2P-RT06		2						IP67						Terminator	AT Series™
Amphenol Sine Systems Corp AT04-2P-BM03	Thermoplastic	2	1		-55 °C	125 °C	Latch Holder		Receptacle	Male Pin			Through Hole			Automotive General Purpose Industrial	Circular	All	13 A	0.835 "	21.21 mm	Black	Solder	IP67	Shrouded - 4 Wall	Copper Alloy	Nickel	Board to Cable/Wire
Amphenol Sine Systems Corp AT04-2P-BLU	Thermoplastic	2	1	Contacts Not Included	-55 °C	125 °C	Latch Holder		Receptacle	Male Pin	Blue	Crimp	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-2P-L012	Thermoplastic	2	1	Contacts Not Included	-55 °C	125 °C	Latch Holder	Mounting Flange Sealed	Receptacle	Male Pin	Gray	Crimp
Amphenol Sine Systems Corp AT04-2P-KIT01		2	1				Latch Lock	Wedge Lock	Plug	Male Pin	Gray		Free Hanging (In-Line)																Discrete	Crimp	16 AWG	18 AWG
Amphenol Sine Systems Corp AT04-2P-SR01BLK	Thermoplastic	2	1	Contacts Not Included	-55 °C	125 °C	Latch Holder	Strain Relief	Receptacle	Male Pin	Black	Crimp	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-2P-D1N4GRY		2	1				Latch Holder	Diode	Receptacle	Male Pin	Gray		Free Hanging (In-Line)																Discrete	Crimp	14 AWG	20 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.80
		10	$ 2.54
		25	$ 2.41
		40	$ 2.35
		80	$ 2.24
		230	$ 1.96
		800	$ 1.74
		1600	$ 1.57
		2400	$ 1.51

Description

General part information

AT04-2P Series

Connector Header Through Hole 2 position

Documents

Technical documentation and resources

BoardLock Family

Datasheet

A Series Family

Datasheet
