PYB10-Q48-S5

Obsolete

CUI Inc.

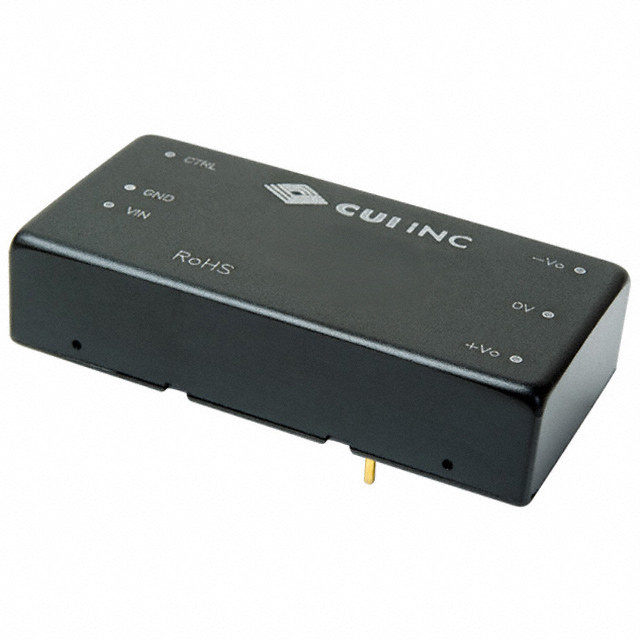

DC DC CONVERTER 5V 10W

Deep-Dive with AI

Search across all available documentation for this part.

PYB10-Q48-S5

Obsolete

CUI Inc.

DC DC CONVERTER 5V 10W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PYB10-Q48-S5

Applications	ITE (Commercial)
Approval Agency	EN
Current - Output (Max) [Max]	2 A
Features	SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	5 Leads
Package / Case	6-DIP Module
Power (Watts)	10 W
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.47 "
Size / Dimension [z]	11.8 mm
Standard Number	55024
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	18 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V

PYB10 Series

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Voltage - Output 2	Voltage - Output 1	Standard Number	Efficiency	Type	Mounting Type	Voltage - Input (Min) [Min]	Approval Agency	Current - Output (Max)	Current - Output (Max)	Power (Watts)	Current - Output (Max) [Max]	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Input Type	Voltage - Isolation	Package / Case	Package / Case	Features	Standard Number	Applications	Control Features
CUI Inc. PYB10-Q48-D15-T	2.99 in	21.2 mm	31.5 mm	76 mm	0.84 "	1.24 in	85 °C	-40 °C	75 V	2	-15 V	15 V	55024 55032	88 %	Enclosed	Chassis Mount	18 V	EN	333 mA	333 mA	10 W
CUI Inc. PYB10-Q24-S24-T	2.99 in	21.2 mm	31.5 mm	76 mm	0.84 "	1.24 in	85 °C	-40 °C	36 V	1		24 V	55024 55032	87 %	Enclosed	Chassis Mount	9 V	EN			10 W	416 mA
CUI Inc. PYB10-Q48-S3-T	2.99 in	21.2 mm	31.5 mm	76 mm	0.84 "	1.24 in	85 °C	-40 °C	75 V	1		3.3 V		79 %	Enclosed	Chassis Mount	18 V	EN IEC			10 W	2.4 A
CUI Inc. PYB10-Q48-S15-U	2.16 in	19.1 mm	52.3 mm	54.9 mm	0.75 in	2.06 in	85 °C	-40 °C	75 V	1		15 V		87 %	Enclosed	Chassis Mount	18 V	EN IEC			10 W	667 mA
CUI Inc. PYB10-Q48-S12-U	2.16 in	19.1 mm	52.3 mm	54.9 mm	0.75 in	2.06 in	85 °C	-40 °C	75 V	1		12 V		86 %	Enclosed	Chassis Mount	18 V	EN IEC			10 W	833 mA
CUI Inc. PYB10-Q24-S12-DIN	2.99 in	22.2 mm	31.5 mm	76 mm	0.87 in	1.24 in	85 °C	-40 °C		1		12 V	55024 55032	84 %				EN			10 W	833 mA	9 V	36 V	DC
CUI Inc. PYB10-Q48-D5-T	2.99 in	21.2 mm	31.5 mm	76 mm	0.84 "	1.24 in	85 °C	-40 °C	75 V	2	-5 V	5 V	55024 55032	83 %	Enclosed	Chassis Mount	18 V	EN	1 A	1 A	10 W
CUI Inc. PYB10-Q48-S5	2 in	11.8 mm	25.4 mm	50.8 mm	0.47 "	25.4 mm	85 °C	-40 °C	75 V	1		5 V			Isolated Module	Through Hole	18 V	EN			10 W	2 A				1.5 kV	5 Leads	6-DIP Module	OVP SCP	55024	ITE (Commercial)
CUI Inc. PYB10-Q24-D15	2 in	11.8 mm	25.4 mm	50.8 mm	0.47 "	25.4 mm	85 °C	-40 °C	36 V	2	-15 V	15 V		88 %	Isolated Module	Through Hole	9 V	EN	333 mA	333 mA	10 W					1.5 kV		6-DIP Module	OVP Remote On/Off SCP	55024	ITE (Commercial)	Active High Enable
CUI Inc. PYB10-Q48-S3-DIN	2.99 in	22.2 mm	31.5 mm	76 mm	0.87 in	1.24 in	85 °C	-40 °C		1		3.3 V		77 %				EN IEC			10 W	2.4 A	18 V	75 V	DC
