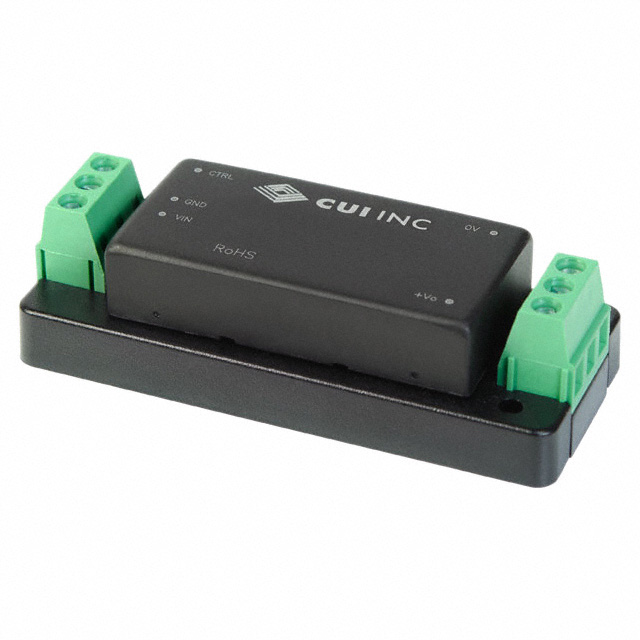

Specification	PYB10-Q48-D5-T

Approval Agency	EN
Current - Output (Max)	1 A
Efficiency	83 %
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	10 W
Size / Dimension Height	0.84 in
Size / Dimension Length	2.99 in
Size / Dimension Width	1.24 in
Standard Number	55032 Class A, 55024
Type	Enclosed
Voltage - Input (Max)	75 V
Voltage - Input (Min)	18 V
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

PYB10 Series

Part	Number of Outputs	Voltage - Output 1	Voltage - Input (Min)	Current - Output (Max)	Voltage - Input (Max)	Power (Watts)	Operating Temperature (Min)	Operating Temperature (Max)	Size / Dimension Length	Size / Dimension Width	Size / Dimension Height	Standard Number	Approval Agency	Voltage - Output 2	Efficiency	Mounting Type	Type	DC Voltage - Input (Min)	Input Type	DC Voltage - Input (Max)	Features	Package Leads	Package Name	Applications	Voltage - Isolation	Package / Case	Control Features
CUI Inc. PYB10-Q48-D15-T	2	15 V	18 V	333 mA	75 V	10 W	-40 °C	85 °C	2.99 in	1.24 in	0.84 in	55024 55032 Class A	EN	-15 V	88 %	Chassis Mount	Enclosed
CUI Inc. PYB10-Q24-S24-T	1	24 V	9 V	416 mA	36 V	10 W	-40 °C	85 °C	2.99 in	1.24 in	0.84 in	55024 55032 Class A	EN		87 %	Chassis Mount	Enclosed
CUI Inc. PYB10-Q48-S3-T	1	3.3 V	18 V	2.4 A	75 V	10 W	-40 °C	85 °C	2.99 in	1.24 in	0.84 in		EN IEC		79 %	Chassis Mount	Enclosed
CUI Inc. PYB10-Q48-S15-U	1	15 V	18 V	667 mA	75 V	10 W	-40 °C	85 °C	2.16 in	2.06 in	0.75 in		EN IEC		87 %	Chassis Mount	Enclosed
CUI Inc. PYB10-Q48-S12-U	1	12 V	18 V	833 mA	75 V	10 W	-40 °C	85 °C	2.16 in	2.06 in	0.75 in		EN IEC		86 %	Chassis Mount	Enclosed
CUI Inc. PYB10-Q24-S12-DIN	1	12 V		833 mA		10 W	-40 °C	85 °C	2.99 in	1.24 in	0.87 in	55024 55032 Class A	EN		84 %			9 V	DC	36 V
CUI Inc. PYB10-Q48-D5-T	2	5 V	18 V	1 A	75 V	10 W	-40 °C	85 °C	2.99 in	1.24 in	0.84 in	55024 55032 Class A	EN	-5 V	83 %	Chassis Mount	Enclosed
CUI Inc. PYB10-Q48-S5	1	5 V	18 V	2 A	75 V	10 W	-40 °C	85 °C	2 in	1 in	0.47 in	55024	EN		82 %	Through Hole	Isolated Module				OVP SCP	5 Leads	6-DIP Module	ITE (Commercial)	1500 Vrns
CUI Inc. PYB10-Q24-D15	2	15 V	9 V	333 mA	36 V	10 W	-40 °C	85 °C	2 in	1 in	0.47 in	55024	EN	-15 V	88 %	Through Hole	Isolated Module				OVP Remote On/Off SCP			ITE (Commercial)	1500 Vrns	6-DIP Module	Active High Enable
CUI Inc. PYB10-Q48-S3-DIN	1	3.3 V		2.4 A		10 W	-40 °C	85 °C	2.99 in	1.24 in	0.87 in		EN IEC		77 %			18 V	DC	75 V
