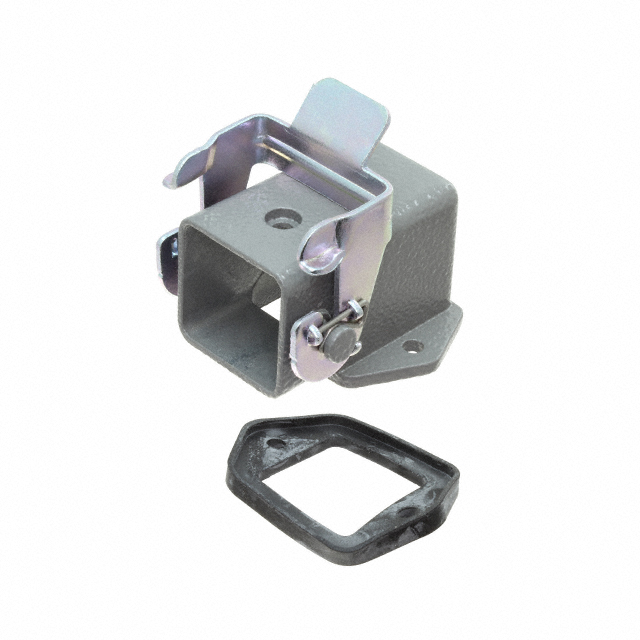

T1549030000-000
ActiveTE Connectivity Raychem Cable Protection
H3A-MAGS
Deep-Dive with AI
Search across all available documentation for this part.
T1549030000-000
ActiveTE Connectivity Raychem Cable Protection
H3A-MAGS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T1549030000-000 |
|---|---|
| Connector Type | Base - Panel Mount 90° |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Zinc Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (1) on Base Bottom |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | H3A |
| Style | Side Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.63 | |
| 10 | $ 7.15 | |||
| 25 | $ 6.63 | |||
| 50 | $ 6.27 | |||
| 100 | $ 5.93 | |||
| 250 | $ 5.50 | |||
| 500 | $ 5.20 | |||
| 1000 | $ 4.92 | |||
Description
General part information
T154 Series
Base - Panel Mount 90° Connector Side Entry H3A IP65 - Dust Tight, Water Resistant
