T1546033000-000

Active

TE Connectivity Raychem Cable Protection

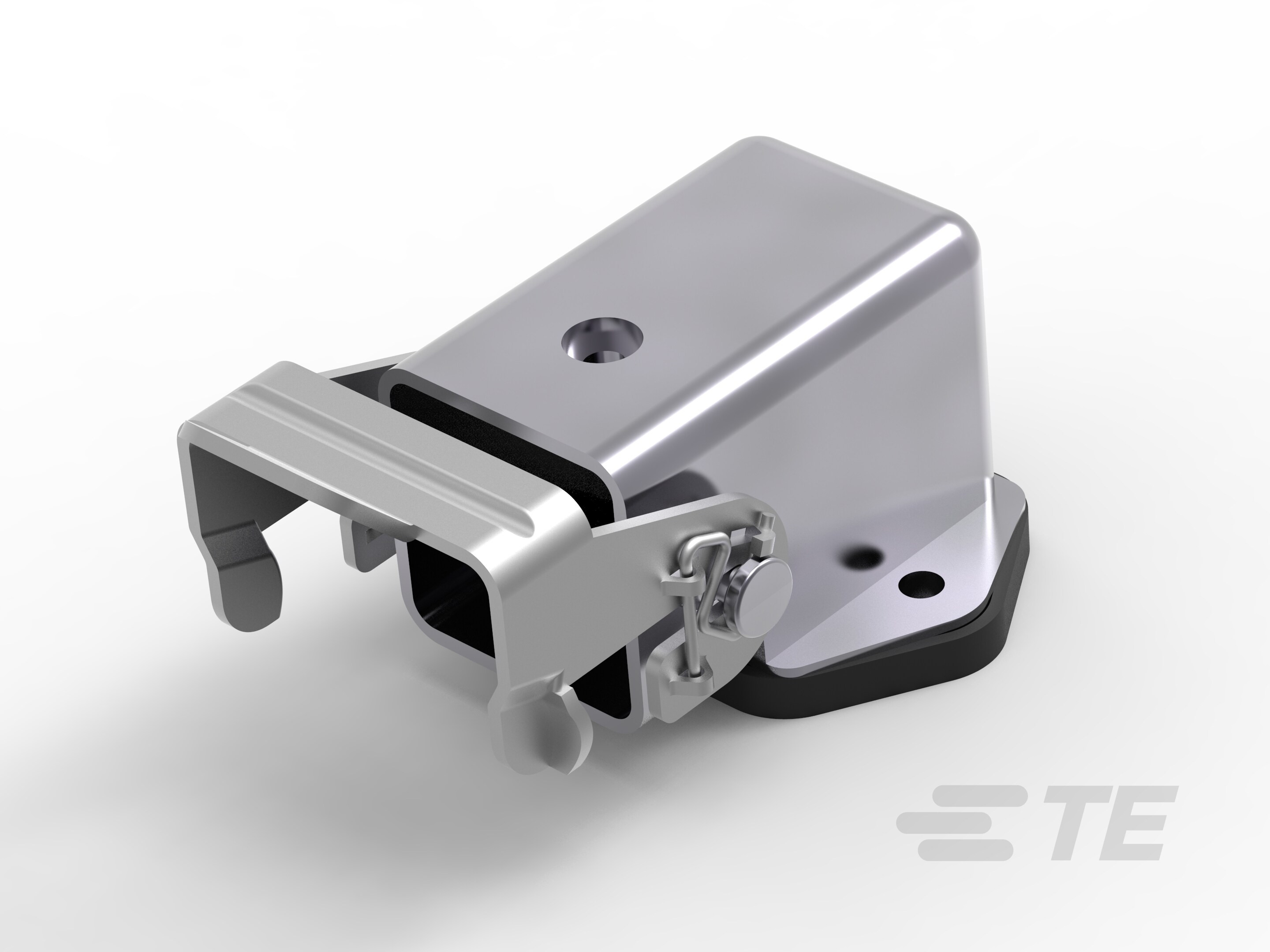

H3A-MAGS-EMC

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

H3A-MAGS-EMC

Technical Specifications

Parameters and characteristics for this part

Specification	T1546033000-000

Connector Type	Base - Panel Mount 90°
Housing Finish	Nickel
Housing Material	Zinc Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	H3A
Style	Side Entry

Part	Housing Finish	Size	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Material	Style	Connector Type	Lock Location
TE Connectivity Raychem Cable Protection T1549030000-000	Powder Coated	H3A	Gray	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Zinc Alloy Die Cast	Side Entry	Base - Panel Mount 90°	Locking Clip (1) on Base Bottom
TE Connectivity Raychem Cable Protection T1546033000-000	Nickel	H3A		125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Zinc Alloy Die Cast	Side Entry	Base - Panel Mount 90°	Locking Clip (1) on Base Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	80	$ 8.06

General part information

Base - Panel Mount 90° Connector Side Entry H3A IP65 - Dust Tight, Water Resistant
