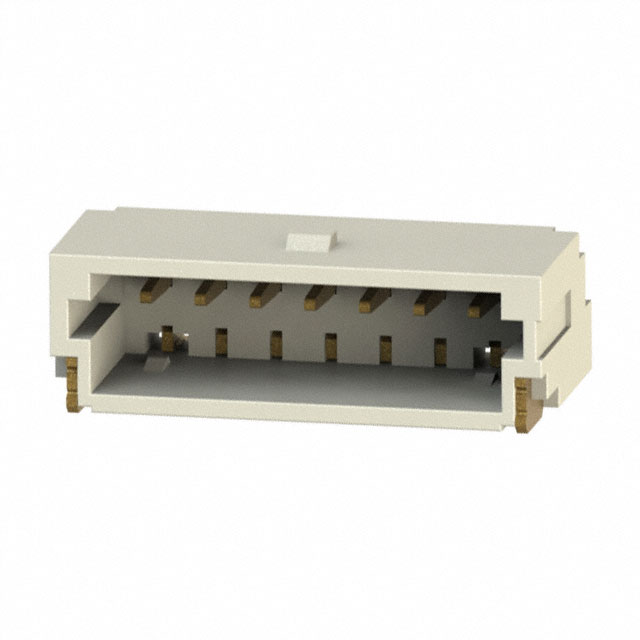

T1M-07-GF-S-RA-TR

Active

Samtec Inc.

CONN HEADER SMD R/A 7POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsT1M Datasheet T1M Series Other Related Documents 03 +2

T1M-07-GF-S-RA-TR

Active

Samtec Inc.

CONN HEADER SMD R/A 7POS 1MM

Deep-Dive with AI

DocumentsT1M Datasheet T1M Series Other Related Documents 03 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T1M-07-GF-S-RA-TR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	3 µin
Contact Finish Thickness - Mating	0.076 µm
Contact Finish Thickness - Post	3 µin
Contact Finish Thickness - Post	0.076 µm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	3.2 mm
Insulation Height	0.126 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC, 353 VDC

T1M-07 Series

Part	Features	Insulation Material	Current Rating (Amps)	Mounting Type	Contact Shape	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Insulation Color	Style	Contact Finish - Post	Connector Type	Contact Material	Contact Finish - Mating	Insulation Height	Insulation Height	Material Flammability Rating	Number of Rows	Termination	Number of Positions Loaded	Number of Positions	Contact Type	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Voltage Rating
Samtec Inc. T1M-07-GF-DV-K	Pick and Place	Liquid Crystal Polymer (LCP)	3.3 A	Surface Mount	Square	Shrouded - 4 Wall	3 µin	0.076 µm	3 µin	0.076 µm	Locking Ramp	Natural	Board to Cable/Wire	Gold	Header	Phosphor Bronze	Gold	6.8 mm	0.268 in	UL94 V-0	2	Solder	All	14	Male Pin	85 °C	-55 °C	0.039 in	1 mm	250 VAC 353 VDC
Samtec Inc. T1M-07-GF-S-RA-TR		Liquid Crystal Polymer (LCP)	3.3 A	Surface Mount Right Angle	Square	Shrouded - 4 Wall	3 µin	0.076 µm	3 µin	0.076 µm	Locking Ramp	Natural	Board to Cable/Wire	Gold	Header	Phosphor Bronze	Gold	3.2 mm	0.126 in	UL94 V-0	1	Solder	All	7	Male Pin	85 °C	-55 °C	0.039 in	1 mm	250 VAC 353 VDC
Samtec Inc. T1M-07-F-SH-L		Liquid Crystal Polymer (LCP)	3.3 A	Surface Mount Right Angle	Square	Shrouded - 4 Wall			3 µin	0.076 µm	Locking Ramp	Natural	Board to Cable/Wire	Tin	Header	Phosphor Bronze	Gold	4.6 mm	0.181 in	UL94 V-0	1	Solder	All	7	Male Pin	85 °C	-55 °C	0.039 in	1 mm	250 VAC 353 VDC
Samtec Inc. T1M-07-GF-DV		Liquid Crystal Polymer (LCP)	3.3 A	Surface Mount	Square	Shrouded - 4 Wall	3 µin	0.076 µm	3 µin	0.076 µm	Locking Ramp	Natural	Board to Cable/Wire	Gold	Header	Phosphor Bronze	Gold	6.8 mm	0.268 in	UL94 V-0	2	Solder	All	14	Male Pin	85 °C	-55 °C	0.039 in	1 mm	250 VAC 353 VDC
Samtec Inc. T1M-07-GF-DH		Liquid Crystal Polymer (LCP)	3.3 A	Surface Mount Right Angle	Square	Shrouded - 4 Wall	3 µin	0.076 µm	3 µin	0.076 µm	Locking Ramp	Natural	Board to Cable/Wire	Gold	Header	Phosphor Bronze	Gold	6.25 mm	0.246 in	UL94 V-0	2	Solder	All	14	Male Pin	85 °C	-55 °C	0.039 in	1 mm	250 VAC 353 VDC
Samtec Inc. T1M-07-T-S-V-TR		Liquid Crystal Polymer (LCP)	3.3 A	Surface Mount	Square	Shrouded - 4 Wall					Locking Ramp	Natural	Board to Cable/Wire	Tin	Header	Phosphor Bronze		4.25 mm	0.167 in	UL94 V-0	1	Solder	All	7	Male Pin	85 °C	-55 °C	0.039 in	1 mm	250 VAC 353 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.80
		10	$ 2.90
		25	$ 2.61
		50	$ 2.42
		100	$ 2.24
		250	$ 2.03
		500	$ 1.89
	Digi-Reel®	1	$ 3.06
		10	$ 2.77
		25	$ 2.63
		50	$ 2.57
		100	$ 2.44
		250	$ 2.14
		500	$ 2.08
	Tape & Reel (TR)	1325	$ 1.72
		2650	$ 1.60
		3975	$ 1.54
