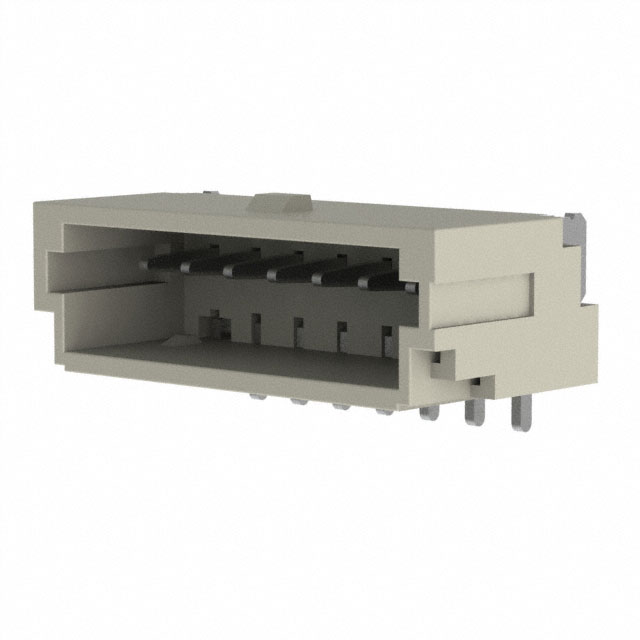

T1M-07-T-S-V-TR

Active

Samtec Inc.

CONN HEADER SMD 7POS 1MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsT1M Series Other Related Documents 03 Datasheet +2

T1M-07-T-S-V-TR

Active

Samtec Inc.

CONN HEADER SMD 7POS 1MM

Deep-Dive with AI

DocumentsT1M Series Other Related Documents 03 Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T1M-07-T-S-V-TR

Connector Type	Header
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3.3 A
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	0.167 in
Insulation Height	4.25 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	7
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC, 353 VDC
