MG-B-24-2

Active

Pomona Electronics

TEST LEAD, ALLIGATOR CLIP TO ALLIGATOR CLIP, RED, 70 V, 5 A, 609.6 MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MG-B-24-2

Active

Pomona Electronics

TEST LEAD, ALLIGATOR CLIP TO ALLIGATOR CLIP, RED, 70 V, 5 A, 609.6 MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MG-B-24-2

1st Connector	Insulated, Miniature, Alligator Clip
2nd Connector	Insulated, Miniature, Alligator Clip
Cable Length	24 "
Cable Length	609.6 mm
Contents	Red
Contents [custom]	1
Current Rating (Amps)	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Temperature Range	50 °C
Temperature Range	122 °F
Voltage - Rated	33 VAC, 70 V
Wire Gauge	18 AWG

MG-B-24 Series

Part	Material - Insulation	Temperature Range	Temperature Range	Wire Gauge	Current Rating (Amps)	2nd Connector	Cable Length	Cable Length	Voltage - Rated	Contents	1st Connector	Contents [custom]
Pomona Electronics MG-B-24-0	Poly-Vinyl Chloride (PVC)	50 °C	122 °F	18 AWG	5 A	Alligator Clip Insulated Miniature	24 "	609.6 mm	33 VAC 70 V	1 Lead Black	Alligator Clip Insulated Miniature
Pomona Electronics MG-B-24-2	Poly-Vinyl Chloride (PVC)	50 °C	122 °F	18 AWG	5 A	Alligator Clip Insulated Miniature	24 "	609.6 mm	33 VAC 70 V	Red	Alligator Clip Insulated Miniature	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.09
		25	$ 8.06
Newark	Each	1	$ 9.30
		10	$ 8.83
		50	$ 8.26
		100	$ 7.98
		250	$ 7.69
		500	$ 7.41
		1000	$ 7.22

Description

General part information

MG-B-24 Series

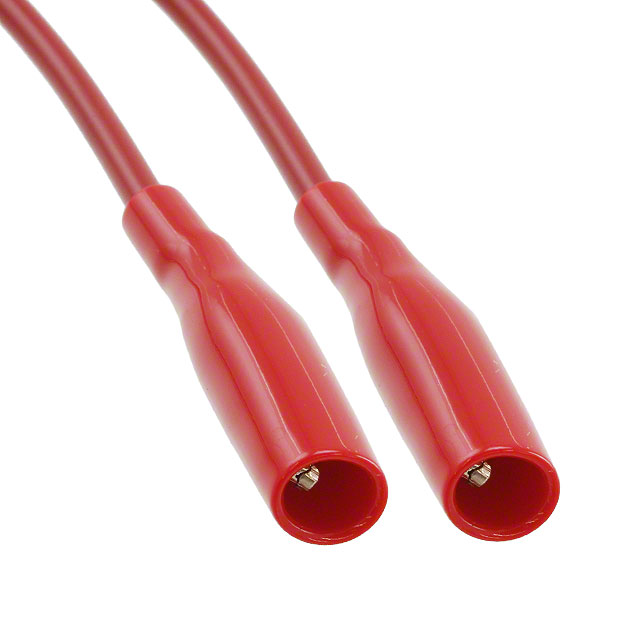

The MG-B-24-2 is a Patch Cord with minigator alligator test clip to minigator alligator test clip connection. The alligator comes with nickel-plated steel body, stainless steel spring and vinyl flex boot. It accepts 18AWG PVC insulated wire.
