MG-B-24-0

Active

Pomona Electronics

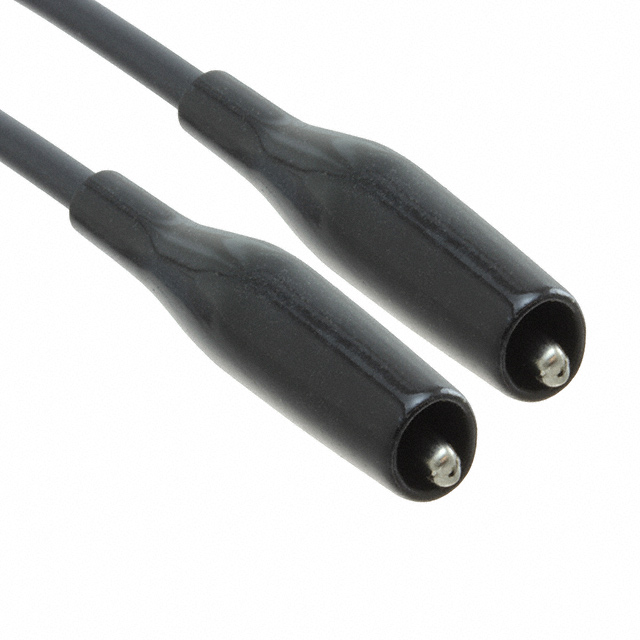

TEST LEAD GATOR TO GATOR 24"

Search across all available documentation for this part.

Active

Pomona Electronics

TEST LEAD GATOR TO GATOR 24"

Technical Specifications

Parameters and characteristics for this part

Specification	MG-B-24-0

1st Connector	Insulated, Miniature, Alligator Clip
2nd Connector	Insulated, Miniature, Alligator Clip
Cable Length	24 "
Cable Length	609.6 mm
Contents	1 Lead, Black
Current Rating (Amps)	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Temperature Range	50 °C
Temperature Range	122 °F
Voltage - Rated	33 VAC, 70 V
Wire Gauge	18 AWG

Part	Material - Insulation	Temperature Range	Temperature Range	Wire Gauge	Current Rating (Amps)	2nd Connector	Cable Length	Cable Length	Voltage - Rated	Contents	1st Connector	Contents [custom]
Pomona Electronics MG-B-24-0	Poly-Vinyl Chloride (PVC)	50 °C	122 °F	18 AWG	5 A	Alligator Clip Insulated Miniature	24 "	609.6 mm	33 VAC 70 V	1 Lead Black	Alligator Clip Insulated Miniature
Pomona Electronics MG-B-24-2	Poly-Vinyl Chloride (PVC)	50 °C	122 °F	18 AWG	5 A	Alligator Clip Insulated Miniature	24 "	609.6 mm	33 VAC 70 V	Red	Alligator Clip Insulated Miniature	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

24.0" (609.60mm) Alligator Clip, Miniature, Insulated To Alligator Clip, Miniature, Insulated Test Lead 33VAC, 70VDC 1 Lead, Black
