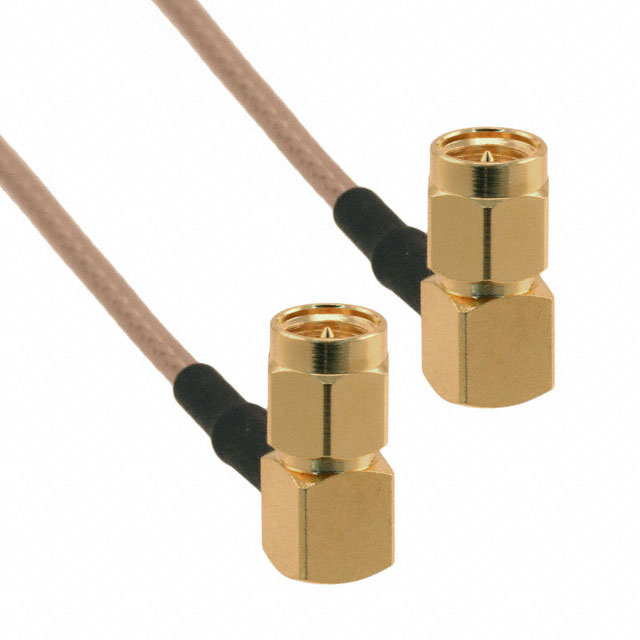

135104-01-M1.00

Active

Amphenol RF

CBL ASSY SMA PLUG TO PLUG 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

135104-01-M1.00

Active

Amphenol RF

CBL ASSY SMA PLUG TO PLUG 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	135104-01-M1.00

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	SMA to SMA

135104 Series

Part	1st Connector	1st Connector Mounting Type	2nd Connector	Style	1st Contact Gender	2nd Connector Mounting Type	Features	Frequency - Max [Max]	Color	Cable Impedance	Cable Type	Overall Impedance	2nd Contact Gender	Length	Length	Length [x]	Length [x]	Length	Length [x]
Amphenol RF 135104-07-24.00	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	12.4 GHz	Copper	50 Ohms	RG-142	50 Ohms	Male	24 "	609.6 mm
Amphenol RF 135104-02-06.00	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	3 GHz	Copper	50 Ohms	RG-174	50 Ohms	Male	6 in	152.4 mm
Amphenol RF 135104-04-06.00	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	1 GHz	Brown	50 Ohms	RG-58	50 Ohms	Male	6 in	152.4 mm
Amphenol RF 135104-02-M0.25	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	3 GHz	Copper	50 Ohms	RG-174	50 Ohms	Male			9.843 "	250 mm
Amphenol RF 135104-07-36.00	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	12.4 GHz	Copper	50 Ohms	RG-142	50 Ohms	Male	36 in	91.44 cm
Amphenol RF 135104-03-12.00	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	12.4 GHz	Copper	50 Ohms	RG-316 DS	50 Ohms	Male	12 "	304.8 mm
Amphenol RF 135104-01-48.00	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	3 GHz	Copper	50 Ohms	RG-316	50 Ohms	Male	48 in	1200 mm			4 ft
Amphenol RF 135104-01-M1.00	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	3 GHz	Copper	50 Ohms	RG-316	50 Ohms	Male	39.4 in	1 m			3.3 ft
Amphenol RF 135104-02-18.00	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	3 GHz	Copper	50 Ohms	RG-174	50 Ohms	Male				457.2 mm		457.2 mm
Amphenol RF 135104-07-48.00	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	12.4 GHz	Copper	50 Ohms	RG-142	50 Ohms	Male	48 in	1200 mm			4 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 40.81
		10	$ 31.55
		25	$ 28.60
		50	$ 26.62
		100	$ 24.82
		250	$ 22.70

Description

General part information

135104 Series

Cable Assembly Coaxial SMA to SMA RG-316 39.4" (1.0m) 3.3'

Documents

Technical documentation and resources

No documents available
