135104-04-06.00

Active

Amphenol RF

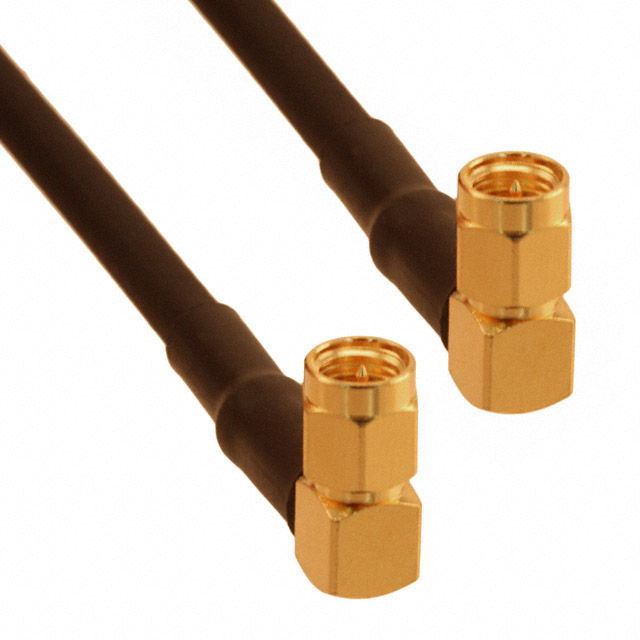

CBL ASSY SMA PLUG TO PLUG 6"

Deep-Dive with AI

Search across all available documentation for this part.

135104-04-06.00

Active

Amphenol RF

CBL ASSY SMA PLUG TO PLUG 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	135104-04-06.00

1st Connector	SMA Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	SMA Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	50 Ohms
Cable Type	RG-58
Color	Brown
Features	Shielded
Frequency - Max [Max]	1 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	50 Ohms
Style	SMA to SMA

135104 Series

Part	1st Connector	1st Connector Mounting Type	2nd Connector	Style	1st Contact Gender	2nd Connector Mounting Type	Features	Frequency - Max [Max]	Color	Cable Impedance	Cable Type	Overall Impedance	2nd Contact Gender	Length	Length	Length [x]	Length [x]	Length	Length [x]
Amphenol RF 135104-07-24.00	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	12.4 GHz	Copper	50 Ohms	RG-142	50 Ohms	Male	24 "	609.6 mm
Amphenol RF 135104-02-06.00	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	3 GHz	Copper	50 Ohms	RG-174	50 Ohms	Male	6 in	152.4 mm
Amphenol RF 135104-04-06.00	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	1 GHz	Brown	50 Ohms	RG-58	50 Ohms	Male	6 in	152.4 mm
Amphenol RF 135104-02-M0.25	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	3 GHz	Copper	50 Ohms	RG-174	50 Ohms	Male			9.843 "	250 mm
Amphenol RF 135104-07-36.00	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	12.4 GHz	Copper	50 Ohms	RG-142	50 Ohms	Male	36 in	91.44 cm
Amphenol RF 135104-03-12.00	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	12.4 GHz	Copper	50 Ohms	RG-316 DS	50 Ohms	Male	12 "	304.8 mm
Amphenol RF 135104-01-48.00	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	3 GHz	Copper	50 Ohms	RG-316	50 Ohms	Male	48 in	1200 mm			4 ft
Amphenol RF 135104-01-M1.00	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	3 GHz	Copper	50 Ohms	RG-316	50 Ohms	Male	39.4 in	1 m			3.3 ft
Amphenol RF 135104-02-18.00	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	3 GHz	Copper	50 Ohms	RG-174	50 Ohms	Male				457.2 mm		457.2 mm
Amphenol RF 135104-07-48.00	Right Angle SMA Plug	Free Hanging (In-Line)	SMA Plug Right Angle	SMA to SMA	Male	Free Hanging (In-Line)	Shielded	12.4 GHz	Copper	50 Ohms	RG-142	50 Ohms	Male	48 in	1200 mm			4 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 21.03
		10	$ 18.42
		25	$ 17.62
		50	$ 17.05
		100	$ 16.49
		250	$ 15.58
		500	$ 15.12

Description

General part information

135104 Series

Cable Assembly Coaxial SMA to SMA RG-58 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
