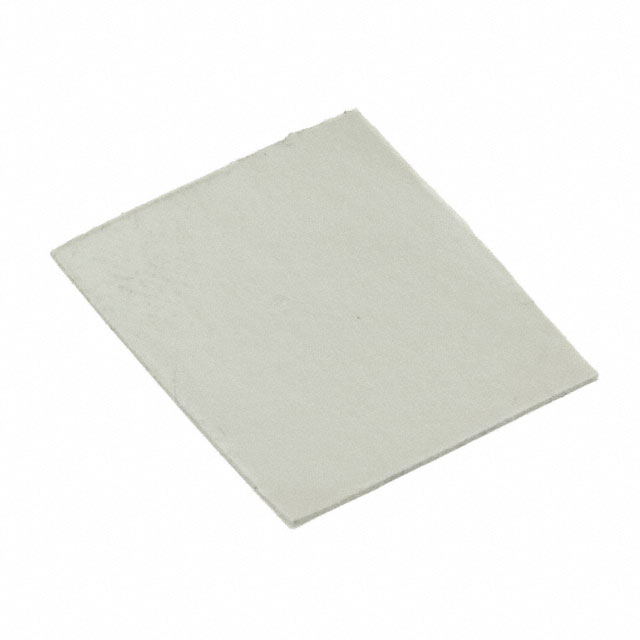

DC0011/08-TG-A486G-0.3-2A

Active

t-Global Technology

THERM PAD 19.05MMX12.7MM W/ADH

Search across all available documentation for this part.

Active

t-Global Technology

THERM PAD 19.05MMX12.7MM W/ADH

Technical Specifications

Parameters and characteristics commom to parts in this series

THERM PAD 19.05MMX12.7MM RED

Part	Usage	Shape	Color	Outline [x]	Outline [y]	Thermal Conductivity	Shelf Life	Thickness	Thickness	Type	Shelf Life Start	Material	Adhesive	Backing, Carrier	Thickness [x]	Thickness [x]	Thickness [custom]	Thickness [custom]
t-Global Technology DC0011/08-TG-A482K-0.1-0	TO-220	Rectangular	Red	19.05 mm	12.7 mm	2.3 W/m-K	24 Months	0.1 mm	0.0039 in	Die-Cut Pad, Sheet	Date of Purchase	Silicone
t-Global Technology DC0011/08-TI900-0.12-2A	TO-220	Rectangular	White	19.05 mm	12.7 mm	1.8 W/m-K	24 Months			Die-Cut Pad, Sheet		Silicone	Adhesive - Both Sides	Viscose	0.005 in	0.127 mm
t-Global Technology DC0011/08-TG-A486G-0.3-2A	TO-220	Rectangular	Gray	19.05 mm	12.7 mm	6 W/m-K	12 Months			Die-Cut Pad, Sheet	Date of Purchase		Adhesive - Both Sides				0.305 mm	0.012 "
t-Global Technology DC0011/08-TG-A373F-0.25-2A	TO-220	Rectangular	Yellow	19.05 mm	12.7 mm	1.4 W/m-K	12 Months			Die-Cut Pad, Sheet			Adhesive - Both Sides				0.254 mm	0.01 in
t-Global Technology DC0011/08-TI900-0.12-0	TO-220	Rectangular	White	19.05 mm	12.7 mm	1.8 W/m-K	24 Months			Die-Cut Pad, Sheet		Silicone		Viscose	0.005 in	0.127 mm
