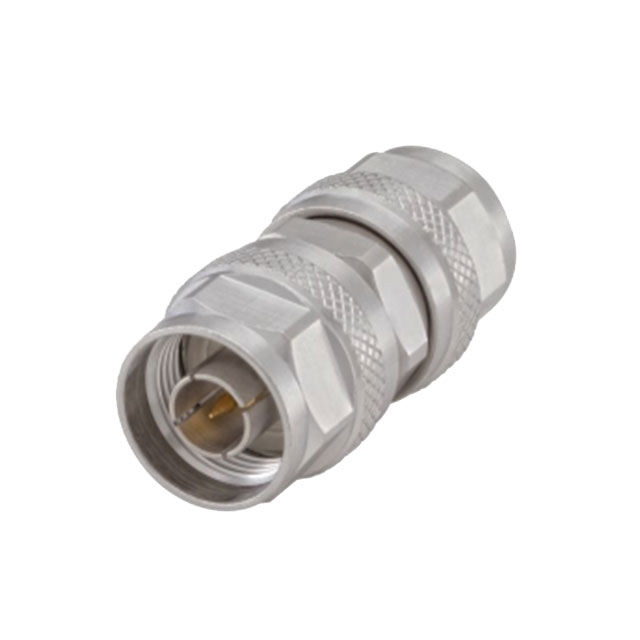

53S101-S00N5

Active

Rosenberger

CONN ADAPT PLUG-PLUG N 50 OHM

Search across all available documentation for this part.

Active

Rosenberger

CONN ADAPT PLUG-PLUG N 50 OHM

Technical Specifications

Parameters and characteristics for this part

Specification	53S101-S00N5

Adapter Series	N to N
Adapter Type	Plug to Plug
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	Male Pin, N Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Center Contact Material	Conversion Type	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Convert To (Adapter End)	Center Contact Plating	Style	Center Gender	Mounting Type	Adapter Type	Body Material	Mating Cycles	Convert From (Adapter End)	Impedance	Frequency - Max [Max]	Body Finish	Adapter Series	Voltage Rating	Shield Termination	Number of Ports	Housing Color	Connector Type	Cable Group	Contact Termination	Includes	Connector Style	Insertion Loss	Cable Group
Rosenberger 53S101-S00N5	Brass	Same Series	155 °C	-55 °C	Polytetrafluoroethylene (PTFE)	Male Pin N Plug	Gold	Straight	Male to Male	Free Hanging (In-Line)	Plug to Plug	Brass	500	N Plug Male Pin	50 Ohms	11 GHz	White Bronze	N to N
Rosenberger 53S101-115N5	Brass		155 °C	-55 °C	Polytetrafluoroethylene (PTFE)		Gold			Free Hanging (In-Line)		Brass	500		50 Ohms	11 GHz	White Bronze		500 V	Crimp	1	Silver	Male Pin Plug	RG-213	Crimp	1 Connector 1 Contact 1 Ferrule	N Type	0.05 dB
Rosenberger 53S101-273B5	Brass		155 °C	-55 °C	Polytetrafluoroethylene (PTFE)		Gold			Free Hanging (In-Line)		Brass	500		50 Ohms	11 GHz	Silver		500 V	Solder	1	Silver	Male Pin Plug	RG-401	Solder		N Type	0.05 dB	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Plug, Male Pin To N Plug, Male Pin 50 Ohms
