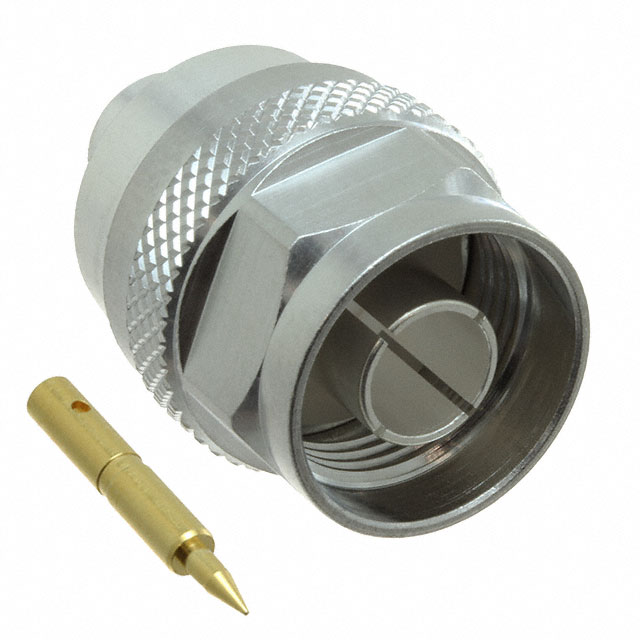

53S101-273B5

Active

Rosenberger

CONN N TYPE PLG STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN N TYPE PLG STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	53S101-273B5

Body Finish	Silver
Body Material	Brass
Cable Group	0.25 in
Cable Group	RG-401
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Center Contact Material	Conversion Type	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Convert To (Adapter End)	Center Contact Plating	Style	Center Gender	Mounting Type	Adapter Type	Body Material	Mating Cycles	Convert From (Adapter End)	Impedance	Frequency - Max [Max]	Body Finish	Adapter Series	Voltage Rating	Shield Termination	Number of Ports	Housing Color	Connector Type	Cable Group	Contact Termination	Includes	Connector Style	Insertion Loss	Cable Group
Rosenberger 53S101-S00N5	Brass	Same Series	155 °C	-55 °C	Polytetrafluoroethylene (PTFE)	Male Pin N Plug	Gold	Straight	Male to Male	Free Hanging (In-Line)	Plug to Plug	Brass	500	N Plug Male Pin	50 Ohms	11 GHz	White Bronze	N to N
Rosenberger 53S101-115N5	Brass		155 °C	-55 °C	Polytetrafluoroethylene (PTFE)		Gold			Free Hanging (In-Line)		Brass	500		50 Ohms	11 GHz	White Bronze		500 V	Crimp	1	Silver	Male Pin Plug	RG-213	Crimp	1 Connector 1 Contact 1 Ferrule	N Type	0.05 dB
Rosenberger 53S101-273B5	Brass		155 °C	-55 °C	Polytetrafluoroethylene (PTFE)		Gold			Free Hanging (In-Line)		Brass	500		50 Ohms	11 GHz	Silver		500 V	Solder	1	Silver	Male Pin Plug	RG-401	Solder		N Type	0.05 dB	0.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
