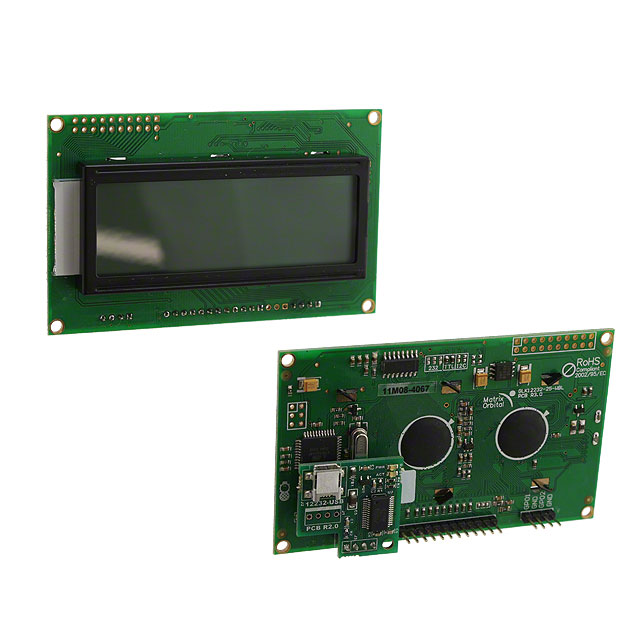

Specification	GLK12232-25-USB-FGW

Background Color	White
Backlight Color	White
Backlight Type	LED
Display Mode	Transmissive
Display Type	Monochrome
Dot Pitch Height	0.65 mm
Dot Pitch Width	0.57 mm
Dot Pixels (Horizontal)	122 pixels
Dot Pixels (Vertical)	32 pixels
Dot Size Height	0.61 mm
Dot Size Width	0.53 mm
Graphics Color	Gray
Interface	USB
Viewing Area Height	20.5 mm
Viewing Area Width	69.5 mm

GLK12232 Series

Part	Dot Pitch Height	Dot Pitch Width	Dot Size Height	Dot Size Width	Background Color	Dot Pixels (Vertical)	Dot Pixels (Horizontal)	Viewing Area Width	Viewing Area Height	Interface	Display Type	Graphics Color	Display Mode	Backlight Type	Backlight Color
Matrix Orbital GLK12232-25-USB-FGW-E	0.65 mm	0.57 mm	0.61 mm	0.53 mm	White	32 pixels	122 pixels	69.5 mm	20.5 mm	USB	Monochrome	Gray	Transmissive	LED	White
Matrix Orbital GLK12232A-25-SM-TCI-LV	0.49 mm	0.44 mm	0.45 mm	0.4 mm	Black	32 pixels	122 pixels	53.64 mm	15.64 mm	I2C RS-232 TTL	TFT - Color	Blue Green Red
Matrix Orbital GLK12232A-25-SM-WB-VS	0.49 mm	0.44 mm	0.45 mm	0.4 mm	Blue	32 pixels	122 pixels	60.2 mm	18 mm	I2C RS-232 TTL	Monochrome	White	Transmissive	LED	White
Matrix Orbital GLK12232-25-USB-WB	0.65 mm	0.57 mm	0.61 mm	0.53 mm	Blue	32 pixels	122 pixels	69.5 mm	20.5 mm	USB	Monochrome	White	Transmissive	LED	White
Matrix Orbital GLK12232A-25-SM-WB-VS-E	0.49 mm	0.44 mm	0.45 mm	0.4 mm	Blue	32 pixels	122 pixels	60.2 mm	18 mm	I2C RS-232 TTL	Monochrome	White	Transmissive	LED	White
Matrix Orbital GLK12232-25-FGW	0.53 mm	0.53 mm	0.62 mm	0.52 mm	White	32 pixels	122 pixels	69.5 mm	20.5 mm	I2C RS-232 TTL	Monochrome	Gray	Transmissive	LED	White
Matrix Orbital GLK12232A-25-SM-TCI-LV-E	0.49 mm	0.44 mm	0.45 mm	0.4 mm	Black	32 pixels	122 pixels	53.64 mm	15.64 mm	I2C RS-232 TTL	TFT - Color	Blue Green Red
Matrix Orbital GLK12232A-25-SM-USB-GW-VS	0.49 mm	0.44 mm	0.45 mm	0.4 mm	White	32 pixels	122 pixels	60.2 mm	18 mm	USB	Monochrome	Gray	Transmissive	LED	White
Matrix Orbital GLK12232-25-USB-FGW	0.65 mm	0.57 mm	0.61 mm	0.53 mm	White	32 pixels	122 pixels	69.5 mm	20.5 mm	USB	Monochrome	Gray	Transmissive	LED	White
Matrix Orbital GLK12232-25-USB-WB-E	0.65 mm	0.57 mm	0.61 mm	0.53 mm	Blue	32 pixels	122 pixels	69.5 mm	20.5 mm	USB	Monochrome	White	Transmissive	LED	White

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

GLK12232-25-USB-FGW | Datasheet
