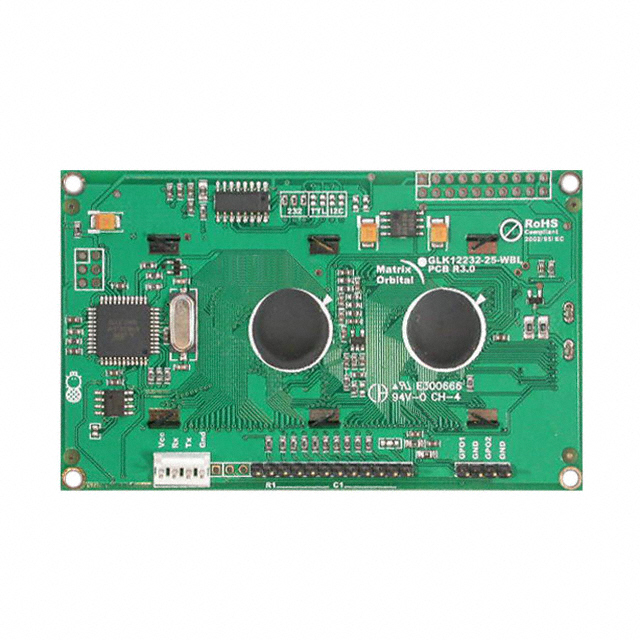

GLK12232-25-FGW
ActiveMatrix Orbital
LCD GRAPHIC DISPL 122X32 WHT/BLK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GLK12232-25-FGW
ActiveMatrix Orbital
LCD GRAPHIC DISPL 122X32 WHT/BLK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GLK12232-25-FGW |
|---|---|
| Background Color | White |
| Backlight | LED - White |
| Display Mode | Transmissive |
| Display Type | Monochrome |
| Dot Pitch [x] | 0.53 mm |
| Dot Pitch [y] | 0.53 mm |
| Dot Size [x] | 0.52 mm |
| Dot Size [y] | 0.62 mm |
| Graphics Color | Gray |
| Interface | TTL, I2C, RS-232 |
| Viewing Area [x] | 69.5 mm |
| Viewing Area [y] | 20.5 mm |
GLK12232 Series
| Part | Backlight | Dot Size [y] | Dot Size [x] | Display Type | Graphics Color | Dot Pitch [x] | Dot Pitch [y] | Interface | Display Mode | Viewing Area [y] | Viewing Area [x] | Background Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Matrix Orbital | LED - White | 0.61 mm | 0.53 mm | Monochrome | Gray | 0.57 mm | 0.65 mm | USB | Transmissive | 20.5 mm | 69.5 mm | White |
Matrix Orbital | 0.45 mm | 0.4 mm | TFT - Color | Blue Green Red | 0.44 mm | 0.49 mm | I2C RS-232 TTL | 15.64 mm | 53.64 mm | Black | ||
Matrix Orbital | LED - White | 0.45 mm | 0.4 mm | Monochrome | White | 0.44 mm | 0.49 mm | I2C RS-232 TTL | Transmissive | 18 mm | 60.2 mm | Blue |
Matrix Orbital | LED - White | 0.45 mm | 0.4 mm | Monochrome | White | 0.44 mm | 0.49 mm | I2C RS-232 TTL | Transmissive | 18 mm | 60.2 mm | Blue |
Matrix Orbital | LED - White | 0.62 mm | 0.52 mm | Monochrome | Gray | 0.53 mm | 0.53 mm | I2C RS-232 TTL | Transmissive | 20.5 mm | 69.5 mm | White |
Matrix Orbital | 0.45 mm | 0.4 mm | TFT - Color | Blue Green Red | 0.44 mm | 0.49 mm | I2C RS-232 TTL | 15.64 mm | 53.64 mm | Black | ||
Matrix Orbital | LED - White | 0.45 mm | 0.4 mm | Monochrome | Gray | 0.44 mm | 0.49 mm | USB | Transmissive | 18 mm | 60.2 mm | White |
Matrix Orbital | LED - White | 0.61 mm | 0.53 mm | Monochrome | Gray | 0.57 mm | 0.65 mm | USB | Transmissive | 20.5 mm | 69.5 mm | White |
Matrix Orbital | 0.45 mm | 0.4 mm | LCD - Monochrome | Gray | 0.44 mm | 0.49 mm | I2C RS-232 TTL | Transflective | 15.64 mm | 53.64 mm | White | |
Matrix Orbital | 0.45 mm | 0.4 mm | LCD - Monochrome | Gray | 0.44 mm | 0.49 mm | I2C RS-232 TTL | Transflective | 15.64 mm | 53.64 mm | White |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 79.95 | |
| 25 | $ 78.00 | |||
| 50 | $ 76.05 | |||
| 100 | $ 72.15 | |||
Description
General part information
GLK12232 Series
Graphic LCD Display Module Transmissive Gray Monochrome I2C, RS-232, TTL 122 x 32
