9250A-105-TR-RC

Active

Bourns Inc.

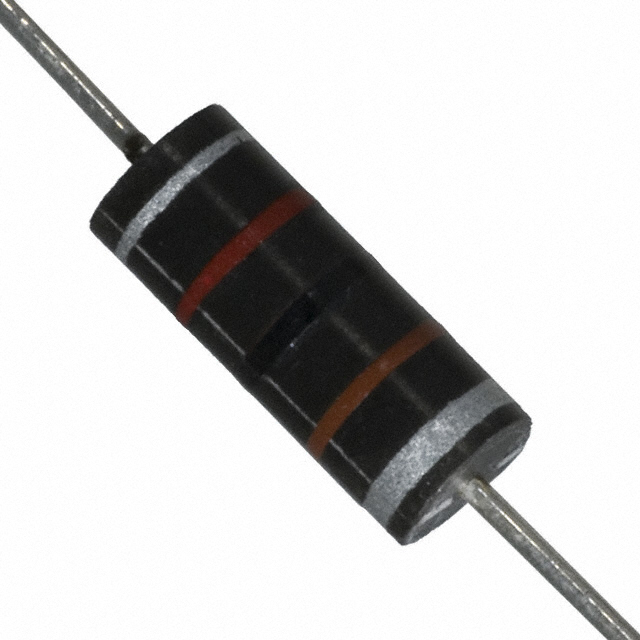

FIXED IND 1MH 70MA 17.5 OHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

9250A-105-TR-RC

Active

Bourns Inc.

FIXED IND 1MH 70MA 17.5 OHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9250A-105-TR-RC

Current - Saturation (Isat)	40 mA
Current Rating (Amps)	70 mA
DC Resistance (DCR)	17.5 Ohm
Frequency - Self Resonant	3.8 MHz
Inductance	1 mH
Inductance Frequency - Test	790 kHz
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Axial
Q @ Freq	790 kHz, 60
Shielding	Shielded
Size / Dimension [diameter]	0.162 in
Size / Dimension [diameter]	4.11 mm
Size / Dimension [x]	10.41 mm
Size / Dimension [x]	0.41 "
Tolerance	10 %
Type	Molded

9250A Series

Part	Mounting Type	DC Resistance (DCR)	Inductance Frequency - Test	Shielding	Frequency - Self Resonant	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Material - Core	Tolerance	Current - Saturation (Isat)	Q @ Freq	Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Inductance	DC Resistance (DCR) [Max]
Bourns Inc. 9250A-152-RC	Through Hole	120 mOhm	7.9 MHz	Shielded	115 MHz	815 mA	10.41 mm	0.41 "	0.162 in	4.11 mm	Ferrite	10 %	815 mA	7.9 MHz 44	Molded	Axial	-55 °C	125 °C	1.5 µH
Bourns Inc. 9250A-334-RC	Through Hole		790 kHz	Shielded	6.5 MHz	110 mA	10.41 mm	0.41 "	0.162 in	4.11 mm	Ferrite	10 %	65 mA		Molded	Axial	-55 °C	125 °C	330 µH	6.4 Ohm
Bourns Inc. 9250A-223-RC	Through Hole		2.5 MHz	Shielded	41 MHz	0.29 A	10.41 mm	0.41 "	0.162 in	4.11 mm	Ferrite	10 %	220 mA	2.5 MHz 45	Molded	Axial	-55 °C	125 °C	22 µH	960 mOhm
Bourns Inc. 9250A-155-RC	Through Hole		250 kHz	Shielded	1.2 MHz	0.055 A	10.41 mm	0.41 "	0.162 in	4.11 mm	Ferrite	10 %	33 mA	45 250 kHz	Molded	Axial	-55 °C	125 °C	1.5 mH
Bourns Inc. 9250A-184-RC	Through Hole		790 kHz	Shielded	8 MHz	135 mA	10.41 mm	0.41 "	0.162 in	4.11 mm	Ferrite	10 %	85 mA		Molded	Axial	-55 °C	125 °C	180 µH	4.4 Ohm
Bourns Inc. 9250A-683-RC	Through Hole		2.5 MHz	Shielded	21 MHz	0.17 A	10.41 mm	0.41 "	0.162 in	4.11 mm	Ferrite	10 %	150 mA	2.5 MHz 50	Molded	Axial	-55 °C	125 °C	68 µH	2.7 Ohm
Bourns Inc. 9250A-122-RC	Through Hole	100 mOhm	7.9 MHz	Shielded	130 MHz	895 mA	10.41 mm	0.41 "	0.162 in	4.11 mm	Ferrite	10 %	895 mA	7.9 MHz 44	Molded	Axial	-55 °C	125 °C	1.2 µH
Bourns Inc. 9250A-275-RC	Through Hole		250 kHz	Shielded	920 kHz	40 mA	10.41 mm	0.41 "	0.162 in	4.11 mm	Ferrite	10 %	25 mA	45 250 kHz	Molded	Axial	-55 °C	125 °C	2.7 mH	47.3 Ohm
Bourns Inc. 9250A-104-TR-RC	Through Hole		2.5 MHz	Shielded	10 MHz	160 mA	10.41 mm	0.41 "	0.162 in	4.11 mm	Ferrite	10 %	120 mA	2.5 MHz 50	Molded	Axial	-55 °C	125 °C	100 µH
Bourns Inc. 9250A-105-TR-RC	Through Hole	17.5 Ohm	790 kHz	Shielded	3.8 MHz	70 mA	10.41 mm	0.41 "	0.162 in	4.11 mm	Ferrite	10 %	40 mA	60 790 kHz	Molded	Axial	-55 °C	125 °C	1 mH

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2500	$ 1.05

Description

General part information

9250A Series

1 mH Shielded Molded Inductor 70 mA 17.5Ohm Max Axial
