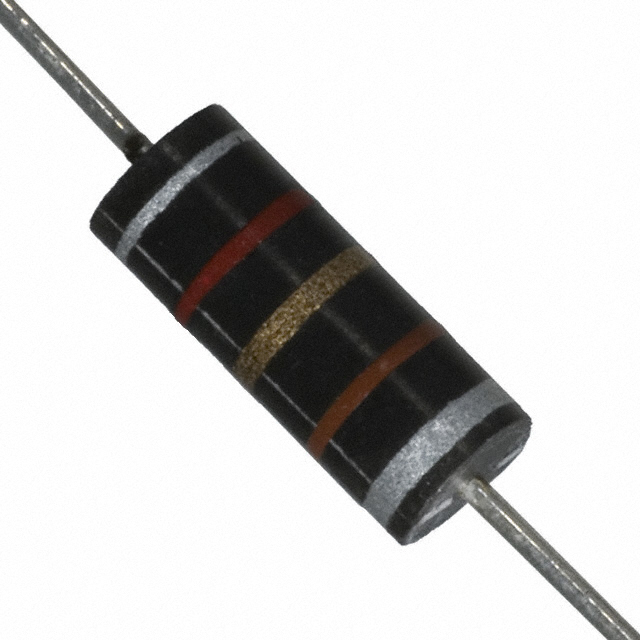

9250A-122-RC
ActiveBourns Inc.
FIXED IND 1.2UH 895MA 100MOHM TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
9250A-122-RC
ActiveBourns Inc.
FIXED IND 1.2UH 895MA 100MOHM TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 9250A-122-RC |
|---|---|
| Current - Saturation (Isat) | 895 mA |
| Current Rating (Amps) | 895 mA |
| DC Resistance (DCR) | 100 mOhm |
| Frequency - Self Resonant | 130 MHz |
| Inductance | 1.2 µH |
| Inductance Frequency - Test | 7.9 MHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Q @ Freq | 44, 7.9 MHz |
| Shielding | Shielded |
| Size / Dimension [diameter] | 0.162 in |
| Size / Dimension [diameter] | 4.11 mm |
| Size / Dimension [x] | 10.41 mm |
| Size / Dimension [x] | 0.41 " |
| Tolerance | 10 % |
| Type | Molded |
9250A Series
| Part | Mounting Type | DC Resistance (DCR) | Inductance Frequency - Test | Shielding | Frequency - Self Resonant | Current Rating (Amps) | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Material - Core | Tolerance | Current - Saturation (Isat) | Q @ Freq | Type | Package / Case | Operating Temperature [Min] | Operating Temperature [Max] | Inductance | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | Through Hole | 120 mOhm | 7.9 MHz | Shielded | 115 MHz | 815 mA | 10.41 mm | 0.41 " | 0.162 in | 4.11 mm | Ferrite | 10 % | 815 mA | 7.9 MHz 44 | Molded | Axial | -55 °C | 125 °C | 1.5 µH | |
Bourns Inc. | Through Hole | 790 kHz | Shielded | 6.5 MHz | 110 mA | 10.41 mm | 0.41 " | 0.162 in | 4.11 mm | Ferrite | 10 % | 65 mA | Molded | Axial | -55 °C | 125 °C | 330 µH | 6.4 Ohm | ||
Bourns Inc. | Through Hole | 2.5 MHz | Shielded | 41 MHz | 0.29 A | 10.41 mm | 0.41 " | 0.162 in | 4.11 mm | Ferrite | 10 % | 220 mA | 2.5 MHz 45 | Molded | Axial | -55 °C | 125 °C | 22 µH | 960 mOhm | |
Bourns Inc. | Through Hole | 250 kHz | Shielded | 1.2 MHz | 0.055 A | 10.41 mm | 0.41 " | 0.162 in | 4.11 mm | Ferrite | 10 % | 33 mA | 45 250 kHz | Molded | Axial | -55 °C | 125 °C | 1.5 mH | ||
Bourns Inc. | Through Hole | 790 kHz | Shielded | 8 MHz | 135 mA | 10.41 mm | 0.41 " | 0.162 in | 4.11 mm | Ferrite | 10 % | 85 mA | Molded | Axial | -55 °C | 125 °C | 180 µH | 4.4 Ohm | ||
Bourns Inc. | Through Hole | 2.5 MHz | Shielded | 21 MHz | 0.17 A | 10.41 mm | 0.41 " | 0.162 in | 4.11 mm | Ferrite | 10 % | 150 mA | 2.5 MHz 50 | Molded | Axial | -55 °C | 125 °C | 68 µH | 2.7 Ohm | |
Bourns Inc. | Through Hole | 100 mOhm | 7.9 MHz | Shielded | 130 MHz | 895 mA | 10.41 mm | 0.41 " | 0.162 in | 4.11 mm | Ferrite | 10 % | 895 mA | 7.9 MHz 44 | Molded | Axial | -55 °C | 125 °C | 1.2 µH | |
Bourns Inc. | Through Hole | 250 kHz | Shielded | 920 kHz | 40 mA | 10.41 mm | 0.41 " | 0.162 in | 4.11 mm | Ferrite | 10 % | 25 mA | 45 250 kHz | Molded | Axial | -55 °C | 125 °C | 2.7 mH | 47.3 Ohm | |
Bourns Inc. | Through Hole | 2.5 MHz | Shielded | 10 MHz | 160 mA | 10.41 mm | 0.41 " | 0.162 in | 4.11 mm | Ferrite | 10 % | 120 mA | 2.5 MHz 50 | Molded | Axial | -55 °C | 125 °C | 100 µH | ||
Bourns Inc. | Through Hole | 17.5 Ohm | 790 kHz | Shielded | 3.8 MHz | 70 mA | 10.41 mm | 0.41 " | 0.162 in | 4.11 mm | Ferrite | 10 % | 40 mA | 60 790 kHz | Molded | Axial | -55 °C | 125 °C | 1 mH |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.40 | |
| 10 | $ 1.19 | |||
| 25 | $ 1.10 | |||
| 50 | $ 0.98 | |||
| 100 | $ 0.82 | |||
Description
General part information
9250A Series
1.2 µH Shielded Molded Inductor 895 mA 100mOhm Max Axial
