TCH-86-530-W(F)

Active

Floyd Bell Inc

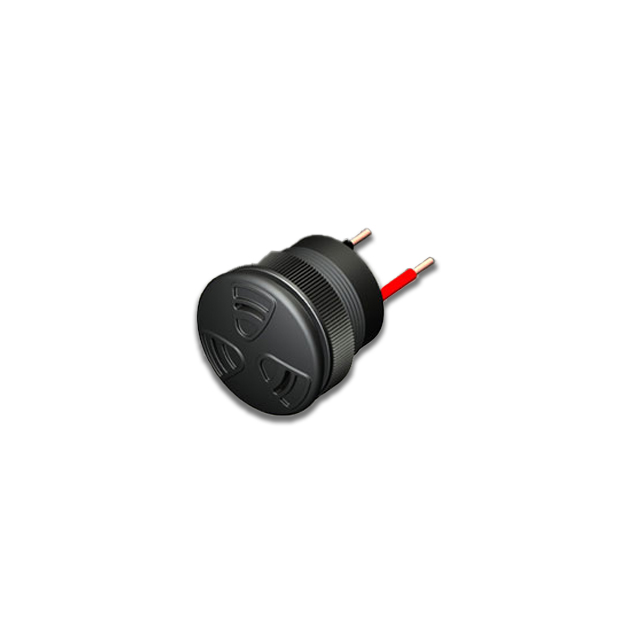

BUZZER PIEZO 33.02MM PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TCH-86-530-W(F)

Active

Floyd Bell Inc

BUZZER PIEZO 33.02MM PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TCH-86-530-W(F)	TCH-86 Series

Approval Agency	UR, UL	UR, UL
Current - Supply [Max]	40 mA	40 mA
Current - Supply [Min]	4 mA	4 mA
Driver Circuitry	Internally Driven, Indicator	Internally Driven, Indicator
Frequency	2.9 kHz	2.9 kHz
Height - Seated (Max) [Max] [z]	1.18 in	1.18 in
Height - Seated (Max) [Max] [z]	29.97 mm	29.97 mm
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Input Type	DC	DC
Operating Mode	Chime	Chime
Port Location	Top	Top
Size / Dimension [diameter]	1.3 in	1.3 in
Size / Dimension [diameter]	33.02 mm	33.02 mm
Sound Pressure Level (SPL)	90 dB	90 dB
Technology	Piezo	Piezo
Termination	Wire Leads	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm), Wire Leads, Quick Connect Tab - 0.250" (6.35mm)
Voltage Range [Max]	30 V	30 V
Voltage Range [Min]	5	5

TCH-86 Series

BUZZER PIEZO 33.02MM PNL MNT

Part	Operating Mode	Termination	Driver Circuitry	Ingress Protection	Sound Pressure Level (SPL)	Input Type	Port Location	Approval Agency	Current - Supply [Max]	Current - Supply [Min]	Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Range [Max]	Voltage Range [Min]	Technology
Floyd Bell Inc TCH-86-530-S(M)	Chime	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	Indicator, Internally Driven	IP68 - Dust Tight, Waterproof	90 dB	DC	Top	UL, UR	40 mA	4 mA	2.9 kHz	1.18 in	29.97 mm	1.3 in	33.02 mm	30 V	5	Piezo
Floyd Bell Inc TCH-86-530-W(F)	Chime	Wire Leads	Indicator, Internally Driven	IP68 - Dust Tight, Waterproof	90 dB	DC	Top	UL, UR	40 mA	4 mA	2.9 kHz	1.18 in	29.97 mm	1.3 in	33.02 mm	30 V	5	Piezo
Floyd Bell Inc TCH-86-530-S(F)	Chime	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	Indicator, Internally Driven	IP68 - Dust Tight, Waterproof	90 dB	DC	Top	UL, UR	40 mA	4 mA	2.9 kHz	1.18 in	29.97 mm	1.3 in	33.02 mm	30 V	5	Piezo
Floyd Bell Inc TCH-86-530-Q(M)	Chime	Quick Connect Tab - 0.250" (6.35mm)	Indicator, Internally Driven	IP68 - Dust Tight, Waterproof	90 dB	DC	Top	UL, UR	40 mA	4 mA	2.9 kHz	1.18 in	29.97 mm	1.3 in	33.02 mm	30 V	5	Piezo
Floyd Bell Inc TCH-86-530-W(M)	Chime	Wire Leads	Indicator, Internally Driven	IP68 - Dust Tight, Waterproof	90 dB	DC	Top	UL, UR	40 mA	4 mA	2.9 kHz	1.18 in	29.97 mm	1.3 in	33.02 mm	30 V	5	Piezo
Floyd Bell Inc TCH-86-530-Q(F)	Chime	Quick Connect Tab - 0.250" (6.35mm)	Indicator, Internally Driven	IP68 - Dust Tight, Waterproof	90 dB	DC	Top	UL, UR	40 mA	4 mA	2.9 kHz	1.18 in	29.97 mm	1.3 in	33.02 mm	30 V	5	Piezo

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.06

Description

General part information

TCH-86 Series

Buzzers Indicator, Internally Driven Piezo 4 ~ 40mA 2.9kHz 90dB @ 30V, 61cm Panel Mount Wire Leads
