TCH-86-530-Q(M)

Active

Floyd Bell Inc

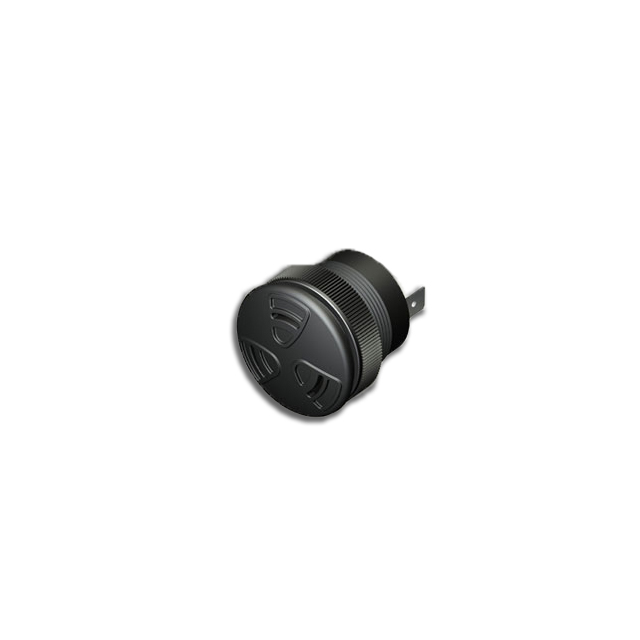

BUZZER PIEZO 33.02MM PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TCH-86-530-Q(M)

Active

Floyd Bell Inc

BUZZER PIEZO 33.02MM PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.06

Description

General part information

TCH-86 Series

Buzzers Indicator, Internally Driven Piezo 4 ~ 40mA 2.9kHz 90dB @ 30V, 61cm Panel Mount Quick Connect Tab - 0.250" (6.35mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TCH-86-530-Q(M)	TCH-86 Series

Approval Agency	UR, UL	UR, UL
Current - Supply [Max]	40 mA	40 mA
Current - Supply [Min]	4 mA	4 mA
Driver Circuitry	Internally Driven, Indicator	Internally Driven, Indicator
Frequency	2.9 kHz	2.9 kHz
Height - Seated (Max) [Max] [z]	1.18 in	1.18 in
Height - Seated (Max) [Max] [z]	29.97 mm	29.97 mm
Ingress Protection	IP68 - Dust Tight, Waterproof	IP68 - Dust Tight, Waterproof
Input Type	DC	DC
Operating Mode	Chime	Chime
Port Location	Top	Top
Size / Dimension [diameter]	1.3 in	1.3 in
Size / Dimension [diameter]	33.02 mm	33.02 mm
Sound Pressure Level (SPL)	90 dB	90 dB
Technology	Piezo	Piezo
Termination	Quick Connect Tab - 0.250" (6.35mm)	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm), Wire Leads, Quick Connect Tab - 0.250" (6.35mm)
Voltage Range [Max]	30 V	30 V
Voltage Range [Min]	5	5

TCH-86 Series

BUZZER PIEZO 33.02MM PNL MNT

Part	Operating Mode	Termination	Driver Circuitry	Ingress Protection	Sound Pressure Level (SPL)	Input Type	Port Location	Approval Agency	Current - Supply [Max]	Current - Supply [Min]	Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage Range [Max]	Voltage Range [Min]	Technology
Floyd Bell Inc TCH-86-530-S(M)	Chime	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	Indicator, Internally Driven	IP68 - Dust Tight, Waterproof	90 dB	DC	Top	UL, UR	40 mA	4 mA	2.9 kHz	1.18 in	29.97 mm	1.3 in	33.02 mm	30 V	5	Piezo
Floyd Bell Inc TCH-86-530-W(F)	Chime	Wire Leads	Indicator, Internally Driven	IP68 - Dust Tight, Waterproof	90 dB	DC	Top	UL, UR	40 mA	4 mA	2.9 kHz	1.18 in	29.97 mm	1.3 in	33.02 mm	30 V	5	Piezo
Floyd Bell Inc TCH-86-530-S(F)	Chime	Screw Terminal, Quick Connect Tab - 0.250" (6.35mm)	Indicator, Internally Driven	IP68 - Dust Tight, Waterproof	90 dB	DC	Top	UL, UR	40 mA	4 mA	2.9 kHz	1.18 in	29.97 mm	1.3 in	33.02 mm	30 V	5	Piezo
Floyd Bell Inc TCH-86-530-Q(M)	Chime	Quick Connect Tab - 0.250" (6.35mm)	Indicator, Internally Driven	IP68 - Dust Tight, Waterproof	90 dB	DC	Top	UL, UR	40 mA	4 mA	2.9 kHz	1.18 in	29.97 mm	1.3 in	33.02 mm	30 V	5	Piezo
Floyd Bell Inc TCH-86-530-W(M)	Chime	Wire Leads	Indicator, Internally Driven	IP68 - Dust Tight, Waterproof	90 dB	DC	Top	UL, UR	40 mA	4 mA	2.9 kHz	1.18 in	29.97 mm	1.3 in	33.02 mm	30 V	5	Piezo
Floyd Bell Inc TCH-86-530-Q(F)	Chime	Quick Connect Tab - 0.250" (6.35mm)	Indicator, Internally Driven	IP68 - Dust Tight, Waterproof	90 dB	DC	Top	UL, UR	40 mA	4 mA	2.9 kHz	1.18 in	29.97 mm	1.3 in	33.02 mm	30 V	5	Piezo
