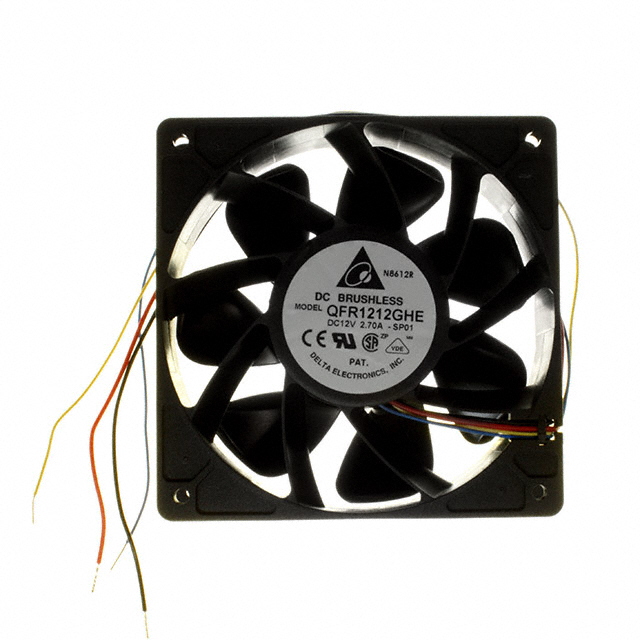

QFR1212GHE-SP01

Obsolete

Delta Electronics

FAN AXIAL 120X38MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QFR1212GHE-SP01

Obsolete

Delta Electronics

FAN AXIAL 120X38MM 12VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

QFR1212 Series

Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 210.4 CFM (5.89m³/min) 4 Wire Leads

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QFR1212GHE-SP01	QFR1212 Series

Air Flow	5.89 m³/min	4.87 - 5.89 m³/min
Air Flow	210.4 CFM	173.8 - 210.4 CFM
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA, cURus
Bearing Type	Ball	Ball
Current Rating (Amps)	1.8 A	1 - 1.8 A
Fan Type	Tubeaxial	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	50000 Hrs	50000 - 70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	64 dB(A)	59 - 64 dB(A)
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	21.6 W	12 - 21.6 W
RPM	6000 RPM	5000 - 6000 RPM
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [y]	120 mm	120 mm
Static Pressure	291.4 Pa	210.2 - 291.4 Pa
Static Pressure	1.17 in H2O	0.844 - 1.17 in H2O
Termination	4 Wire Leads	4 Position Rectangular Connector, 4 Wire Leads, 2 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	13.2 VDC	12.6 - 13.2 VDC
Voltage Range [Min]	8 VDC	8 - 10.8 VDC
Weight	330.22 g	330.22 g
Weight	0.728 lb	0.728 lb
Width [y]	38 mm	38 mm

QFR1212 Series

FAN AXL 120X38MM 12VDC RECT CONN

Part	Weight	Weight	Fan Type	Material - Frame	Power (Watts)	Bearing Type	Air Flow	Air Flow	Material - Blade	Termination	Features	Width [y]	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Static Pressure	Static Pressure	RPM	Approval Agency	Noise	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]
Delta Electronics QFR1212GHEEVT	330.22 g	0.728 lb	Tubeaxial	Plastic	21.6 W	Ball	5.89 m³/min	210.4 CFM	Plastic	4 Position Rectangular Connector	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	38 mm	12 VDC	-10 °C	-10 °C	60 °C	60 °C	291.4 Pa	1.17 in H2O	6000 RPM	CE, CSA, UL, VDE	64 dB(A)	70000 Hrs	120 mm	120 mm	1.8 A	10.8 VDC	12.6 VDC
Delta Electronics QFR1212GHE-SP01	330.22 g	0.728 lb	Tubeaxial	Plastic	21.6 W	Ball	5.89 m³/min	210.4 CFM	Plastic	4 Wire Leads	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	38 mm	12 VDC	-10 °C	-10 °C	60 °C	60 °C	291.4 Pa	1.17 in H2O	6000 RPM	CE, CSA, UL, VDE	64 dB(A)	50000 Hrs	120 mm	120 mm	1.8 A	8 VDC	13.2 VDC
Delta Electronics QFR1212EHE	330.22 g	0.728 lb	Tubeaxial	Plastic	12 W	Ball	4.87 m³/min	173.8 CFM	Plastic	2 Wire Leads		38 mm	12 VDC	-10 °C	-10 °C	60 °C	60 °C	210.2 Pa	0.844 in H2O	5000 RPM	CE, CSA, UL, VDE	59 dB(A)	50000 Hrs	120 mm	120 mm	1 A	8 VDC	13.2 VDC
Delta Electronics QFR1212GHEXUM	330.22 g	0.728 lb	Tubeaxial	Plastic	21.6 W	Ball	5.89 m³/min	210.4 CFM	Plastic	4 Wire Leads	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	38 mm	12 VDC	-10 °C	-10 °C	60 °C	60 °C	291.4 Pa	1.17 in H2O	6000 RPM	CE, cURus, VDE	64 dB(A)	70000 Hrs	120 mm	120 mm	1.8 A	10.8 VDC	12.6 VDC
