QFR1212GHEEVT

Delta Electronics

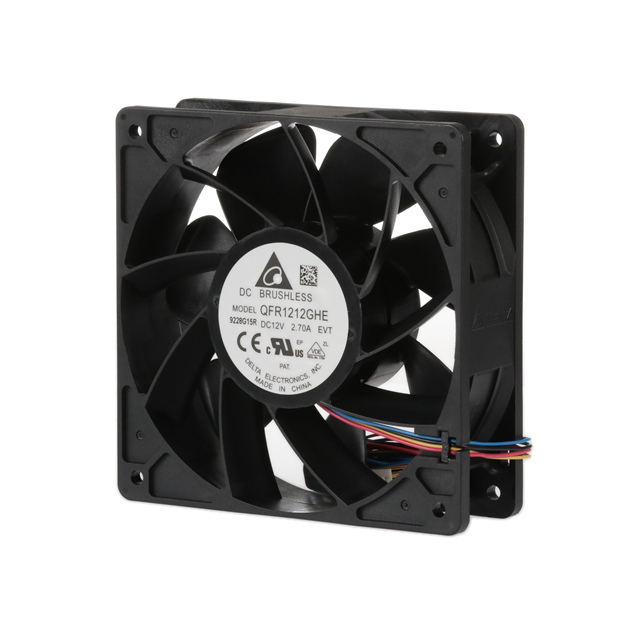

FAN AXL 120X38MM 12VDC RECT CONN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QFR1212GHEEVT

Delta Electronics

FAN AXL 120X38MM 12VDC RECT CONN

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QFR1212GHEEVT	QFR1212 Series

Air Flow	5.89 m³/min	4.87 - 5.89 m³/min
Air Flow	210.4 CFM	173.8 - 210.4 CFM
Approval Agency	UL, CE, VDE, CSA	UL, CE, VDE, CSA, cURus
Bearing Type	Ball	Ball
Current Rating (Amps)	1.8 A	1 - 1.8 A
Fan Type	Tubeaxial	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Lifetime @ Temp.	70000 Hrs	50000 - 70000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	64 dB(A)	59 - 64 dB(A)
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	-10 °C	-10 °C
Operating Temperature [Min]	-10 °C	-10 °C
Power (Watts)	21.6 W	12 - 21.6 W
RPM	6000 RPM	5000 - 6000 RPM
Size / Dimension [x]	120 mm	120 mm
Size / Dimension [y]	120 mm	120 mm
Static Pressure	291.4 Pa	210.2 - 291.4 Pa
Static Pressure	1.17 in H2O	0.844 - 1.17 in H2O
Termination	4 Position Rectangular Connector	4 Position Rectangular Connector, 4 Wire Leads, 2 Wire Leads
Voltage - Rated	12 VDC	12 VDC
Voltage Range [Max]	12.6 VDC	12.6 - 13.2 VDC
Voltage Range [Min]	10.8 VDC	8 - 10.8 VDC
Weight	330.22 g	330.22 g
Weight	0.728 lb	0.728 lb
Width [y]	38 mm	38 mm

QFR1212 Series

FAN AXL 120X38MM 12VDC RECT CONN

Part	Weight	Weight	Fan Type	Material - Frame	Power (Watts)	Bearing Type	Air Flow	Air Flow	Material - Blade	Termination	Features	Width [y]	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Static Pressure	Static Pressure	RPM	Approval Agency	Noise	Lifetime @ Temp.	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]
Delta Electronics QFR1212GHEEVT	330.22 g	0.728 lb	Tubeaxial	Plastic	21.6 W	Ball	5.89 m³/min	210.4 CFM	Plastic	4 Position Rectangular Connector	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	38 mm	12 VDC	-10 °C	-10 °C	60 °C	60 °C	291.4 Pa	1.17 in H2O	6000 RPM	CE, CSA, UL, VDE	64 dB(A)	70000 Hrs	120 mm	120 mm	1.8 A	10.8 VDC	12.6 VDC
Delta Electronics QFR1212GHE-SP01	330.22 g	0.728 lb	Tubeaxial	Plastic	21.6 W	Ball	5.89 m³/min	210.4 CFM	Plastic	4 Wire Leads	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	38 mm	12 VDC	-10 °C	-10 °C	60 °C	60 °C	291.4 Pa	1.17 in H2O	6000 RPM	CE, CSA, UL, VDE	64 dB(A)	50000 Hrs	120 mm	120 mm	1.8 A	8 VDC	13.2 VDC
Delta Electronics QFR1212EHE	330.22 g	0.728 lb	Tubeaxial	Plastic	12 W	Ball	4.87 m³/min	173.8 CFM	Plastic	2 Wire Leads		38 mm	12 VDC	-10 °C	-10 °C	60 °C	60 °C	210.2 Pa	0.844 in H2O	5000 RPM	CE, CSA, UL, VDE	59 dB(A)	50000 Hrs	120 mm	120 mm	1 A	8 VDC	13.2 VDC
Delta Electronics QFR1212GHEXUM	330.22 g	0.728 lb	Tubeaxial	Plastic	21.6 W	Ball	5.89 m³/min	210.4 CFM	Plastic	4 Wire Leads	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)	38 mm	12 VDC	-10 °C	-10 °C	60 °C	60 °C	291.4 Pa	1.17 in H2O	6000 RPM	CE, cURus, VDE	64 dB(A)	70000 Hrs	120 mm	120 mm	1.8 A	10.8 VDC	12.6 VDC
