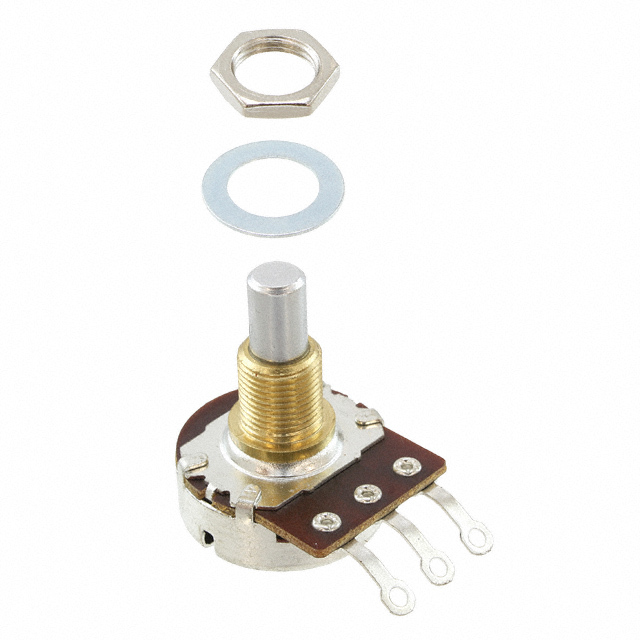

PDA241-HRT02-103B0

Obsolete

Bourns Inc.

POT 10K OHM 1/2W CARBON LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PDA241-HRT02-103B0

Obsolete

Bourns Inc.

POT 10K OHM 1/2W CARBON LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PDA241-HRT02-103B0

Actuator Diameter	6.35 mm
Actuator Diameter [diameter]	0.25 in
Actuator Length	19 mm
Actuator Length [z]	0.748 in
Actuator Type	Round
Adjustment Type	User Defined
Built in Switch	False
Bushing Thread	3/8-32
Features	Long Life
Number of Gangs	1
Number of Turns	1
Power (Watts)	0.5 W
Power (Watts)	0.5 W
Resistance (Ohms)	10k
Resistive Material	Carbon
Rotation	300 ░
Size - Body [diameter]	24.2 mm
Size - Body [diameter]	0.953 in
Taper	Linear
Termination Style	Solder Lug
Tolerance	15 %

PDA241 Series

Part	Actuator Type	Termination Style	Power (Watts)	Power (Watts)	Adjustment Type	Actuator Length	Actuator Length [z]	Number of Turns	Rotation	Taper	Resistive Material	Size - Body [diameter]	Size - Body [diameter]	Features	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Number of Gangs	Bushing Thread	Tolerance	Resistance (Ohms)	Actuator Diameter	Resistance (Ohms)
Bourns Inc. PDA241-SRT00-254B0	Knurled and Slotted	Solder Lug	0.5 W	0.5 W	User Defined	19 mm	0.748 in	1	300 ░	Linear	Carbon	24.2 mm	0.953 in	Long Life	0.236 in	6 mm	1	3/8-32	15 %	250k
Bourns Inc. PDA241-HRT02-504A2	Round	Solder Lug	250 mW	0.25 W	User Defined	19 mm	0.748 in	1	300 ░	Logarithmic	Carbon	24.2 mm	0.953 in	Long Life	0.25 in		1	3/8-32	15 %		6.35 mm	500 kOhms
Bourns Inc. PDA241-HRT02-103B0	Round	Solder Lug	0.5 W	0.5 W	User Defined	19 mm	0.748 in	1	300 ░	Linear	Carbon	24.2 mm	0.953 in	Long Life	0.25 in		1	3/8-32	15 %	10k	6.35 mm
Bourns Inc. PDA241-SRT01-103A2	Knurled and Slotted	Solder Lug	250 mW	0.25 W	User Defined	19 mm	0.748 in	1	300 ░	Logarithmic	Carbon	24.2 mm	0.953 in	Long Life	0.236 in	6 mm	1	3/8-32	15 %	10k
Bourns Inc. PDA241-SRT01-253A2	Knurled and Slotted	Solder Lug	250 mW	0.25 W	User Defined	19 mm	0.748 in	1	300 ░	Logarithmic	Carbon	24.2 mm	0.953 in	Long Life	0.236 in	6 mm	1	3/8-32	15 %	25k
Bourns Inc. PDA241-HRT02-502B0	Round	Solder Lug	0.5 W	0.5 W	User Defined	19 mm	0.748 in	1	300 ░	Linear	Carbon	24.2 mm	0.953 in	Long Life	0.25 in		1	3/8-32	15 %		6.35 mm	5 kOhms
Bourns Inc. PDA241-HRT02-203A2	Round	Solder Lug	250 mW	0.25 W	User Defined	19 mm	0.748 in	1	300 ░	Logarithmic	Carbon	24.2 mm	0.953 in	Long Life	0.25 in		1	3/8-32	15 %		6.35 mm	20 kOhms
Bourns Inc. PDA241-SRT01-105A2	Knurled and Slotted	Solder Lug	250 mW	0.25 W	User Defined	19 mm	0.748 in	1	300 ░	Logarithmic	Carbon	24.2 mm	0.953 in	Long Life	0.236 in	6 mm	1	3/8-32	15 %	1M
Bourns Inc. PDA241-SRT02-105B0	Round	Solder Lug	0.5 W	0.5 W	User Defined	19 mm	0.748 in	1	300 ░	Linear	Carbon	24.2 mm	0.953 in	Long Life	0.25 in		1	3/8-32	15 %	1M	6.35 mm
Bourns Inc. PDA241-SRT02-103A2	Round	Solder Lug	250 mW	0.25 W	User Defined	19 mm	0.748 in	1	300 ░	Logarithmic	Carbon	24.2 mm	0.953 in	Long Life	0.25 in		1	3/8-32	15 %	10k	6.35 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

PDA241 Series

10k Ohm 1 Gang Linear Panel Mount Potentiometer None 1.0 Kierros Carbon 0.5W, 1/2W Solder Lug
